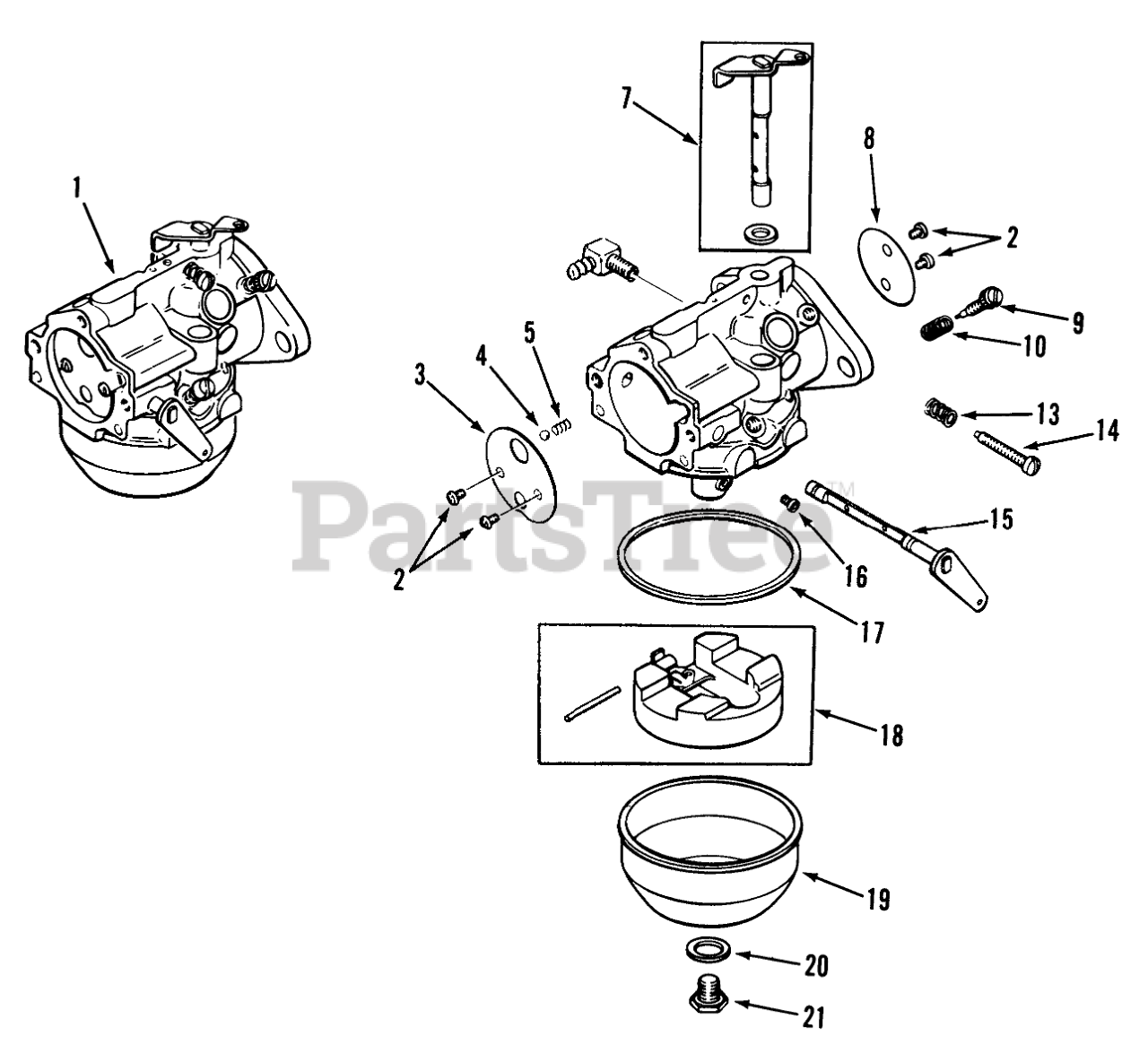

31-10K801 (310-8) - Toro Garden Tractor (1990) Kohler Carburetors Parts Diagram

Garden Tractor

Kohler Carburetors Parts Diagram

  • Title
1

Toro KH10672

KOHLER 47-853-20

$

$

Not available

2

Toro KH10110

KOHLER 25-086-27

$

$

Not available

3

Toro KH10708

KOHLER 47-146-08

$

$

Not available

4

Toro KH10128

KOHLER 25-194-01

$

$

Not available

5

Toro KH10113

KOHLER 25-089-03

$

$

Not available

7

Toro KH10707

KOHLER 457-144-21

$

$

Not available

8

Toro KH10121

KOHLER 25-146-02

$

$

Not available

9

Toro KH10132

KOHLER 25-368-01

$

$

Not available

10

Toro KH10112

KOHLER 25-089-02

$

$

Not available

13

Toro KH10114

KOHLER 25-089-04

$

$

Not available

14

Toro KH10109

KOHLER 25-086-26

$

$

Not available

15

Toro KH10702

KOHLER 47-090-38

$

$

Not available

16

Toro KH10709

KOHLER 47-337-02

$

$

Not available

17

Toro KH10094

KOHLER 25-041-04

$

$

Not available

18

Toro KH10663

KOHLER 25-757-09

$

$

Not available

19

Toro KH10117

KOHLER 25-104-01

$

$

Not available

20

Toro KH10093

KOHLER 25-041-03

$

$

Not available

21

Toro KH10116

KOHLER 25-100-05

$

$

Not available

Toro KH10696

VNDR# 25-757-13

Note: Not illustrated

$

$

Not available

Flange Gasket KH10009, 210223

Note: Not illustrated

$

$

Not available

Carburetor Gasket KH10146, 271030

Note: Not illustrated

$

$

Not available

Gasket KH10733, 275341

Note: Not illustrated

$

$

Not available

Bowl Screen Gasket KH10093, 25_041_03

Note: Not illustrated

$

$

Not available

Bowl Gasket KH10094, 25_041_04

Note: Not illustrated

$

$

Not available

Plug Welch KH10734, 25_139_09

Note: Not illustrated

$

$

Not available

Plug Welch KH10735, 25_139_10

Note: Not illustrated

$

$

Not available

Inlet Valve KH10736, 25_462_02

Note: Not illustrated

$

$

Not available

Inlet Valve Assembly KH10737, 25_462_04

Note: Not illustrated

$

$

Not available

Air Cleaner Gasket KH10677, 41_041_11

Note: Not illustrated

$

$

Not available

Gasket KH10697, 45_041_07

Note: Not illustrated

$

$

Not available

Carburetor Gasket KH10274, 47_049_01

Note: Not illustrated

$

$

Not available

Toro KH10358

KOHLER 25-757-05

Note: Not illustrated

$

$

Not available

Toro KH10710

KOHLER 47-755-36

Note: Not illustrated

$

$

Not available

Toro KH10674

KOHLER 47-853-09

Note: Not illustrated

$

$

Not available

Toro KH10693

KOHLER 47-853-20

Note: Not illustrated

$

$

Not available

Carburetor Linkage KH10701, 47_079_10

Note: Not illustrated

$

$

Not available

Bushing Linkage Natural KH10682, 47_158_07

Note: Not illustrated

$

$

Not available

Bushing Linkage Black KH10686, 25_158_09

Note: Not illustrated

$

$

Not available

Air Cleaner Gasket KH10697, 45_041_07

Note: Not illustrated

$

$

Not available

Carburetor Assembly KH10693, 47_053_86

Note: Not illustrated

$

$

Not available

Gasket KH10274, 47_049_01

Note: Not illustrated

$

$

Not available
