31-10K801 (310-8) - Toro Garden Tractor (1990) Wheels And Tires Parts Diagram

Garden Tractor

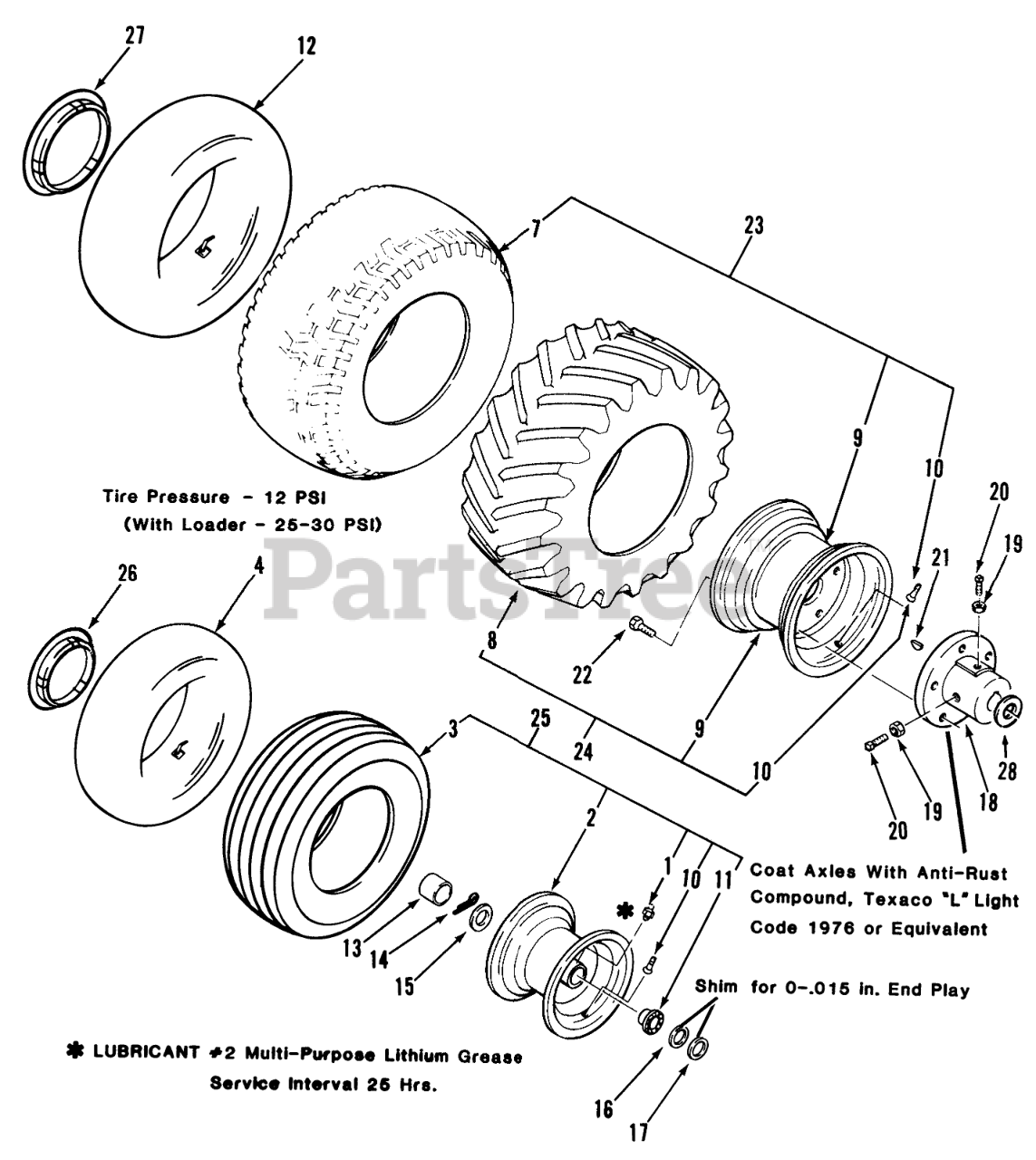

Wheels And Tires Parts Diagram

  • Title

1

Toro 109500

ZERK-GREASE

$4.49

$

Usually ships in 3-6 days

0

2

Toro 117285

DISCONTINUED

$

$

Not available

3

Toro 116884

TIRE-15 X 6.00-6

$173.99

$

Usually ships in 3-6 days

0

4

Toro 100079

TUBE

$

$

Not available

7

Toro 116742

DISCONTINUED

$

$

Not available

Toro 116744

See Supercession: 116-5363
(Superseded to 116-5363)

$223.99

$

Usually ships in 3-6 days

0

8

Toro 7607

DISCONTINUED
(Superseded to 110934)

$

$

Not available

9

Toro 111516

WHEEL

$325.99

$

Usually ships in 3-6 days

0

10

Toro 5108

VALVE

$7.99

$

In Stock, only 4 left!

0

11

Toro 110513

BEARING-WHEEL

$23.99

$

In Stock, Qty 20+

0

12

Toro 1654

DISCONTINUED

$

$

Not available

Toro 7007

See Supercession: 231-90
(Superseded to 231-90)

$

$

Not available

Toro 100291

See Supercession: 231-90
(Superseded to 231-90)

$

$

Not available

13

Toro 109154

DISCONTINUED

$

$

Not available

14

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 11

0

15

Toro 109114

WASHER-WHEEL

$4.49

$

In Stock, Qty 8

0

16

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

18

Toro 105763

See Supercession: 105763-03
(Superseded to 105763-03)

$206.99

$

In Stock, only 1 left!

0

Toro 105762

See Supercession: 93-3659-03
(Superseded to 93-3659-03)

Note: 310-8 Serial No-s 11752 Thru 11755 Use Part Listed for 312/416 Models.

$186.99

$

Usually ships in 3-6 days

0

19

Toro 915236

See Supercession: 9152366
(Superseded to 9152366)

$3.99

$

In Stock, only 1 left!

0

20

Toro 909554

See Supercession: 3243-5
(Superseded to 3243-5)

$2.99

$

In Stock, Qty 13

0

21

Toro 937108

KEY-WOODRUFF

$6.49

$

In Stock, Qty 5

0

Toro 937097

DISCONTINUED

Note: 310-8 Serial No-s 11752 Thru 11755 Use Part Listed for 312/416 Models.

$

$

Not available

22

Toro 1004

DUP PART SEE $BOOK

$

$

Not available

23

Toro 116741

DISCONTINUED

$

$

Not available

Toro 116743

DISCONTINUED PRC4

$

$

Not available

24

Toro 110934

DISCONTINUED

$

$

Not available

Toro 110933

DISCONTINUED

$

$

Not available

25

Toro 117289

ASM-Wheel Tire
(Superseded to 99-5378)

$

$

Not available

26

Toro 114426

ORDER 107-9223(NO LOGO)HUBCAP

$

$

Not available

27

Toro 114428

DISCONTINUED

$

$

Not available
