31-10K802 (310-8) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) ENGINE CYLINDER BLOCK Parts Diagram

Garden Tractor

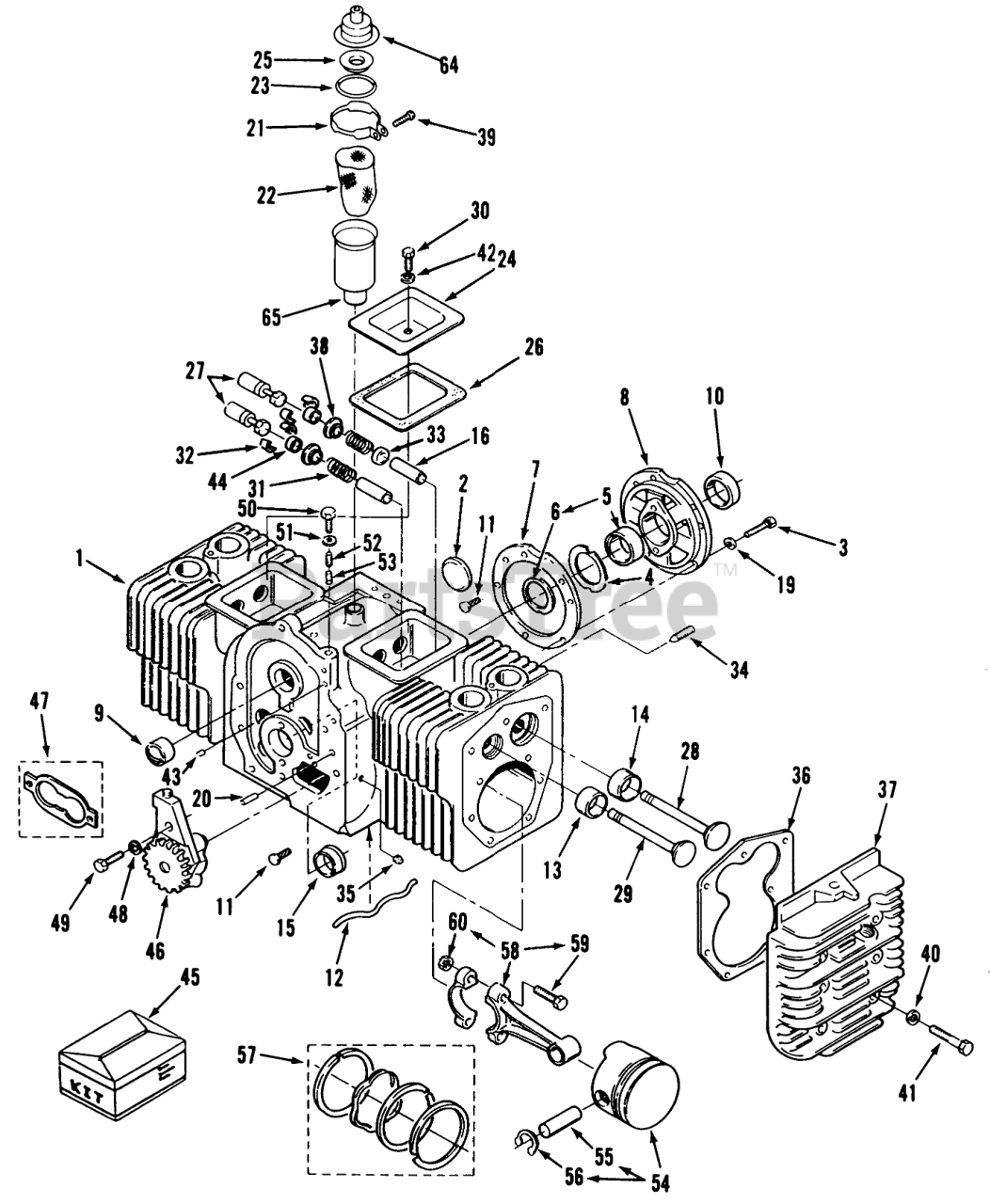

ENGINE CYLINDER BLOCK Parts Diagram

  • Title

1

Toro NN10850

SHORT-BLOCK

$

$

Not available

2

Toro 57-9690

PLUG

$7.99

$

Usually ships in 3-6 days

0

3

Toro 82-145

Bolt 3/8-16 x 1-1/4

$

$

Currently unavailable

4

Toro 57-8170

SHIM

$7.49

$

Usually ships in 3-6 days

0

5

Toro NN10009

Rear Crankshaft Bearing-STD
(Superseded to 57-8050)

$236.99

$

Usually ships in 3-6 days

0

Toro NN10010

Rear Crankshaft Brg-.002 under
(Superseded to 59-0020)

$

$

Not available

Toro NN10011

Rear Crankshaft Brg-.010 under
(Superseded to 57-8060)

$

$

Not available

Toro NN10012

Rear Crankshaft Brg-.020 under
(Superseded to 59-0030)

$

$

Not available

Toro NN10013

Rear Crankshaft Brg-.030 under
(Superseded to 59-0040)

$

$

Not available

6

Toro NN10476

Thrust Washer
(Superseded to 57-8160)

$44.99

$

Usually ships in 3-6 days

0

7

Toro 57-8010

GASKET

$26.99

$

In Stock, only 1 left!

0

8

Toro 201027

Bearing Plate

$

$

Not available

9

Toro NN10001

Camshaft Brg
(Superseded to 57-8000)

$133.99

$

Usually ships in 3-6 days

0

10

Toro 57-9590

SEAL

$36.99

$

In Stock, only 2 left!

0

11

Toro 59-0730

PIN-DRIVE

$

$

Not available

12

Toro 59-0290

OIL TUBE

$

$

Not available

13

Toro 59-0100

STD INSERT

$

$

Not available

Toro 59-0110

INSERT .002

$

$

Not available

Toro 59-0120

INSERT .005

$

$

Not available

Toro 59-0130

INSERT .010

$

$

Not available

Toro 59-0140

.025" Oversize
(Superseded to 79-6220)

$

$

Not available

14

Toro 59-0050

STD INSERT

$

$

Not available

Toro 594060

Intake Seat Insert-.002" Oversize

$

$

Currently unavailable

Toro 59-0070

Plug-Breather Hole

$

$

Not available

Toro 59-0080

INSERT .010

$

$

Not available

Toro 59-0090

Insert-Valve Seat .025" oversize

$

$

Not available

15

Toro NN10003

Standard
(Superseded to 57-8030)

$

$

Not available

Toro NN10004

.002" Undersize
(Superseded to 57-9360)

$

$

Not available

Toro NN10005

.010" Undersize
(Superseded to 57-8030)

$

$

Not available

Toro NN10006

.020" Undersize
(Superseded to 57-9800)

$

$

Not available

Toro NN10007

.030" Under
(Superseded to 59-0010)

$

$

Not available

16

Toro NN10479

Guide-ExhaustValve
(Superseded to 71-6250)

$56.99

$

Usually ships in 3-6 days

0

Toro NN10478

Guide-Intake Valve
(Superseded to 71-6260)

$

$

Not available

19

Toro 82-1640

Washer
(Superseded to 325-35)

$10.99

$

Usually ships in 3-6 days

0

20

Toro NN10336

Pin
(Superseded to 59-0750)

$6.99

$

Usually ships in 3-6 days

0

21

Toro 82-0530

Clamp

$

$

Not available

22

Toro 57-8580

FILTER

$6.49

$

Usually ships in 3-6 days

0

23

Toro 82-0570

SEAL - O-RING

$6.49

$

Usually ships in 3-6 days

0

24

Toro NN10821

VALVE-COVER L.H.

$30.99

$

Usually ships in 3-6 days

0

25

Toro 82-0560

SCREEN-BREATHER TUBE

$

$

Not available

26

Toro NN10822

Gasket
(Superseded to 57-8280)

$12.99

$

In Stock, only 1 left!

0

27

Toro NN10129

Tappet
(Superseded to 57-8450)

$

$

Not available

Toro NN10130

.002" Oversize
(Superseded to 59-0260)

$

$

Not available

Toro NN10131

.005" Oversize
(Superseded to 59-0260)

$

$

Not available

28

Toro NN10075

Intake Valve
(Superseded to 71-5770)

$

$

Not available

29

Toro NN10075

Intake Valve
(Superseded to 71-5770)

$

$

Not available

30

Toro NN10370

HHCS 1/4-20 X 1 3/4

$

$

Not available

31

Toro NN10077

Spring
(Superseded to 71-5790)

$

$

Not available

32

Toro NN10082

VALVE SPRING LOCK

$

$

Not available

33

Toro 509-289

Seal

$

$

Currently unavailable

34

Toro NN10385

Screw
(Superseded to 3247-4)

$5.99

$

Usually ships in 3-6 days

0

35

Toro NN10307

Plug
(Superseded to 700412)

$

$

Not available

36

Toro NN10070

Gasket
(Superseded to 57-8330)

$

$

Not available

37

Toro NN10080

Right Side
(Superseded to 59-0180)

$

$

Not available

Toro NN10079

Side-Left
(Superseded to 71-5810)

$531.99

$

Usually ships in 3-6 days

0

38

Toro NN10078

Washer
(Superseded to 71-5800)

$

$

Not available

39

Toro 82-1480

SCREW-TAPPING, ROUND HEAD

$

$

Not available

40

Toro 57-9770

WASHER

$

$

Not available

41

Toro NN10381

Bolt
(Superseded to 71-6270)

$

$

Not available

42

Toro NN10359

Washer
(Superseded to 57-9740)

$

$

Not available

43

Toro 59-0760

PLUG-CORE HOLE

$

$

Not available

44

Toro 71-5830

VALVE CAP

$

$

Not available

45

Toro 168-0187

Engine Gasket Kit
(Superseded to 71-6290)

$

$

Not available

Toro 168-0189

Valve Grind/Carbon Removal
(Superseded to 57-9370)

$

$

Not available

46

Toro 57-8480

PUMP

$

$

Not available

47

Toro 57-8460

GASKET KIT

$

$

Not available

48

Toro 82-1340

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

49

Toro 87-1370

Bolt

$

$

Currently unavailable

50

Toro 59-0910

SCREW-HH

$

$

Not available

51

Toro 57-9760

WASHER

$

$

Not available

52

Toro NN10133

Spring
(Superseded to 59-0280)

$

$

Not available

53

Toro NN10135

Piunger
(Superseded to 57-8470)

$

$

Not available

54

Toro 57-8350

Standard
(Superseded to 82-1800)

$

$

Not available

Toro 59-0190

PISTON PIN .005

$

$

Not available

Toro 57-8360

.010" Oversize
(Superseded to 92-0902)

$

$

Not available

Toro 57-8370

.020" Oversize
(Superseded to 92-0903)

$

$

Not available

Toro 59-0200

.030" Oversize
(Superseded to 92-0904)

$

$

Not available

55

Toro NN10100

Pin-Piston
(Superseded to 71-6310)

$

$

Not available

56

Toro NN10345

Retaining Ring
(Superseded to 57-9720)

$

$

Not available

57

Toro 57-8380

RING SET

$

$

Not available

Toro 59-0220

Piston Ring Set .005" Oversize

$

$

Not available

Toro 57-8390

RING SET

$112.99

$

Usually ships in 3-6 days

0

Toro 57-8400

Piston Ring Set .020" Oversize

$

$

Not available

Toro 59-0230

RING SET .030 OS

$

$

Not available

58

Toro NN10125

CONNECTING ROD W/NUT

$

$

Not available

Toro NN10126

CONNECTING ROD W/NUT

$

$

Not available

Toro NN10127

CONNECTING ROD W/NUT

$

$

Not available

Toro NN10128

CONNECTING ROD W/NUT

$

$

Not available

59

Toro NN10120

Rod Bolt
(Superseded to 57-8410)

$

$

Not available

60

Toro NN10428

Nut
(Superseded to 57-9790)

$

$

Not available

64

Toro 82-0550

BREATHER-CAP AND VALVE

$

$

Not available

65

Toro 82-0540

TUBE-BREATHER

$

$

Not available
