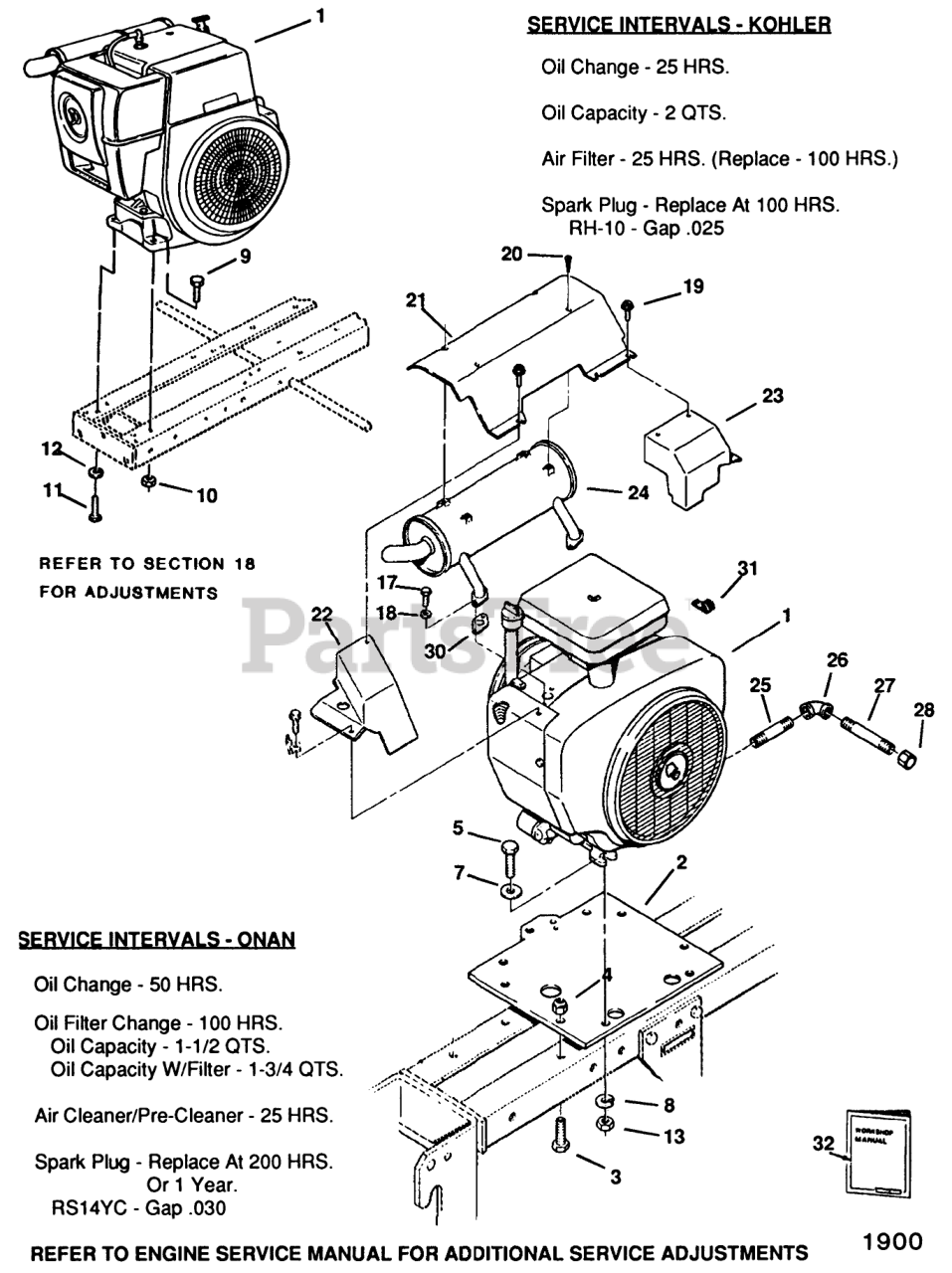

31-10K802 (310-8) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) ENGINES Parts Diagram

Garden Tractor

ENGINES Parts Diagram

  • Title

1

Toro 117254

Engine 10HP Kohler M-10-S Spec 461521 (s/n 1919902923 & up)-310

$

$

Currently unavailable

Toro 117255

Engine-12 Hp Kohler

$

$

Not available

Toro 117590

Engine 16HP Toro Power Plus P216G-I/10976C-416

$

$

Not available

2

Toro 116609

PLATE-ENGINE B

$113.99

$

Usually ships in 3-6 days

0

3

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

4

Toro 915553

Nut

$

$

Currently unavailable

5

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

7

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

8

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

9

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

10

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

11

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

12

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

13

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

17

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

18

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 4 left!

0

19

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

20

Toro 910331

Screw
(Superseded to 9103312)

$2.49

$

In Stock, Qty 6

0

21

Toro 114217

Air Deflector
(Superseded to 94-1803)

$

$

Not available

22

Toro 114215

LH Exhaust Cover
(Superseded to 114215-03)

$

$

Not available

23

Toro 114216

RH Exhaust Cover
(Superseded to 114216-03)

$

$

Not available

24

Toro 116470

MUFFLER-EXHAUST

$

$

Not available

25

Toro 114636

Pipe
(Superseded to 289-45)

$19.99

$

Usually ships in 3-6 days

0

26

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

27

Toro 114763

PIPE-NIPPLE 3/8 X 4"

$15.99

$

In Stock, only 1 left!

0

28

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

30

Toro 114214

Exhaust Gasket
(Superseded to 57-9210)

$17.99

$

In Stock, Qty 8

0

31

Toro 111357

J-CLIP

$

$

Not available

32

Toro TP2203A

Magnum Kohler Service & Repair Manual

$

$

Currently unavailable

Toro 810697R1

Manual-Toro Power Plus Service

$

$

Currently unavailable
