31-10K802 (310-8) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) INTAKE MANIFOLD Parts Diagram

Garden Tractor

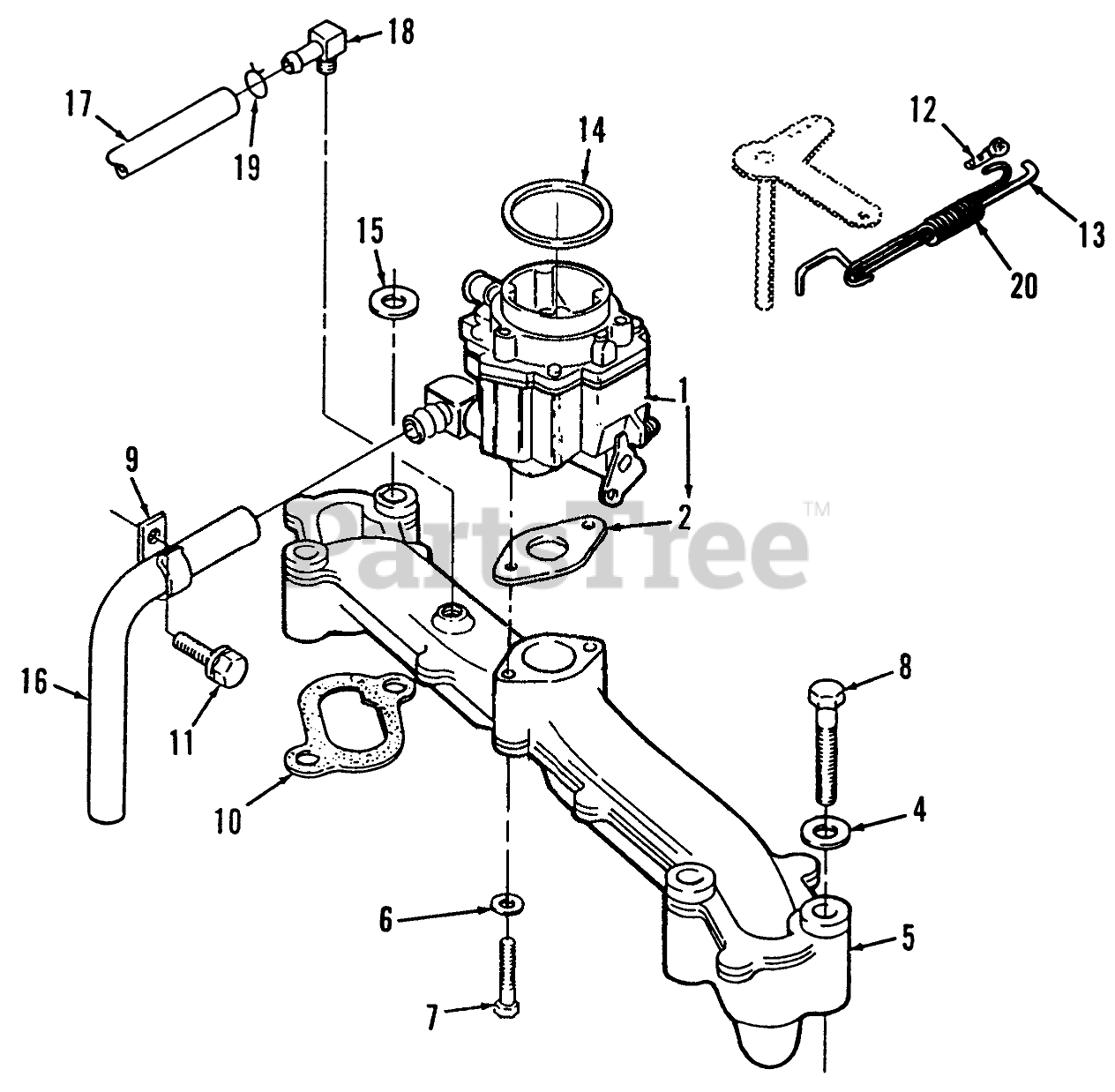

INTAKE MANIFOLD Parts Diagram

  • Title

1

Toro NN10504

Carburetor (Includes Mounting Gasket, Elbow and "O" Ring) See section 9-17 for complete carburetor breakdown

$

$

Not available

2

Toro 57-9200

Gasket
(Superseded to 82-0850)

$11.99

$

In Stock, only 1 left!

0

4

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

5

Toro NN10242

Intake Manifold
(Superseded to NN10441)

$

$

Not available

6

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

7

Toro NN10374

Screw 5/16-18 1-3/4
(Superseded to NN10545)

$

$

Not available

8

Toro NN10375

HHCS

$

$

Not available

9

Toro NN10362

FLAT WASHER

$

$

Not available

10

Toro NN10904

Gasket
(Superseded to 71-5980)

$14.99

$

In Stock, Qty 5

0

11

Toro NN10399

Bolt
(Superseded to 82-1540)

$

$

Not available

12

Toro 57-9700

CLIP

$5.49

$

In Stock, only 1 left!

0

13

Toro NN10897

Governor Control Rod
(Superseded to 57-9160)

$

$

Not available

14

Toro 57-9620

SEAL

$6.99

$

Usually ships in 3-6 days

0

15

Toro NN10362

FLAT WASHER

$

$

Not available

16

Toro NN10857

HOSE

$19.99

$

Usually ships in 3-6 days

0

20

Toro NN10877

Spring-Governor Rod
(Superseded to NN10928)

$

$

Not available
