31-10K802 (310-8) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) KOHLER BAFFLES & SHROUDS Parts Diagram

Garden Tractor

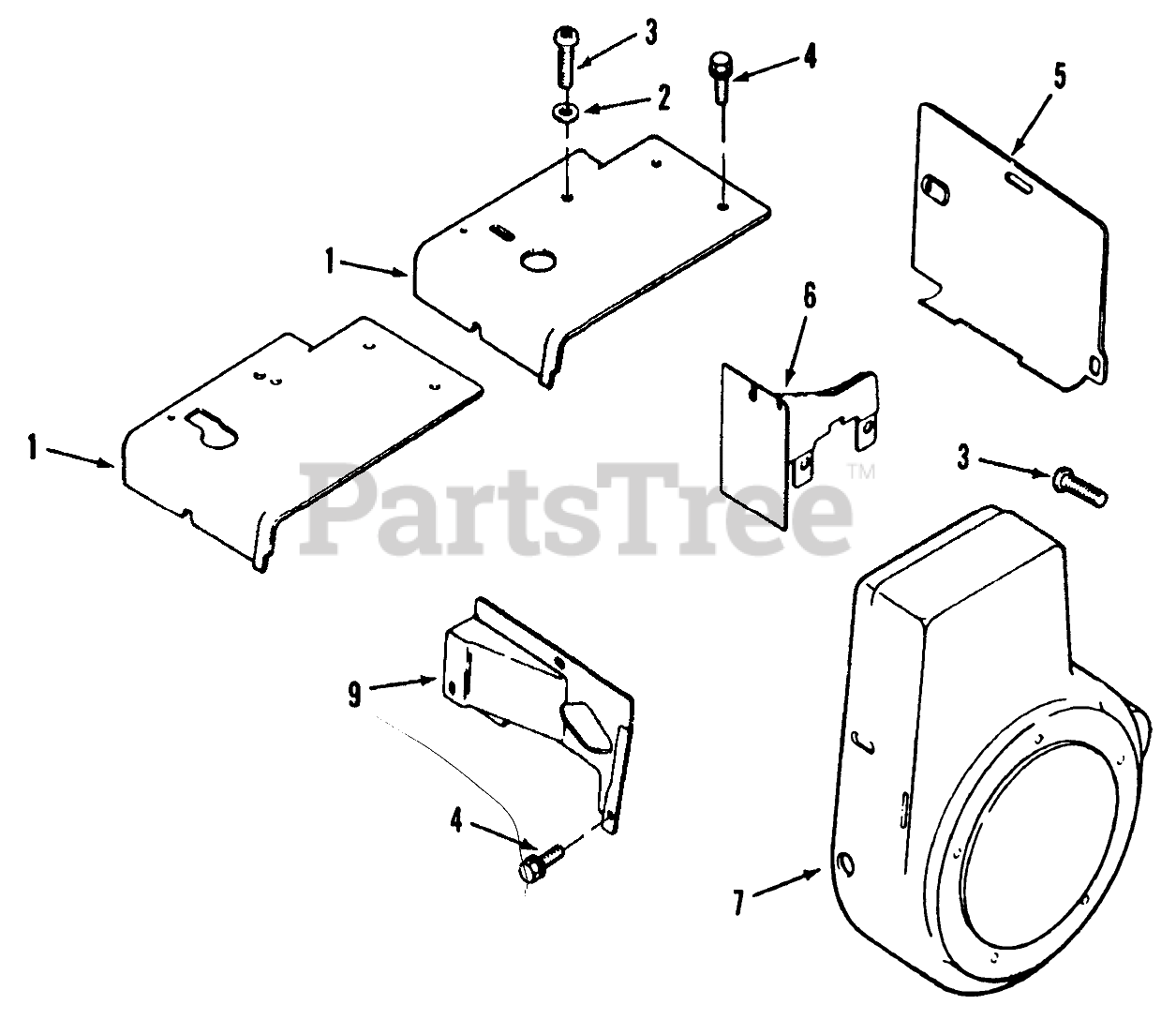

KOHLER BAFFLES & SHROUDS Parts Diagram

  • Title

1

Toro KH10281

Baffle-Head

$

$

Not available

Toro KH10231

Baffle-Head

$

$

Not available

2

Toro KH10567

Washer

$

$

Not available

3

Toro KH10289

Screw-Pozidriv T.H.

$

$

Not available

4

Toro KH10413

Screw Hex Hd

$

$

Not available

5

Toro KH10172

Cylinder Baffle

$

$

Not available

6

Toro KH10280

Baffle-Inner

$

$

Not available

7

Toro KH10265

Blower Housing

$

$

Not available

9

Toro KH10279

Baffle-SideAir

$

$

Not available

Decal HP

$

$

Not available
