31-10K802 (310-8) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) KOHLER IGNITION SYSTEM Parts Diagram

Garden Tractor

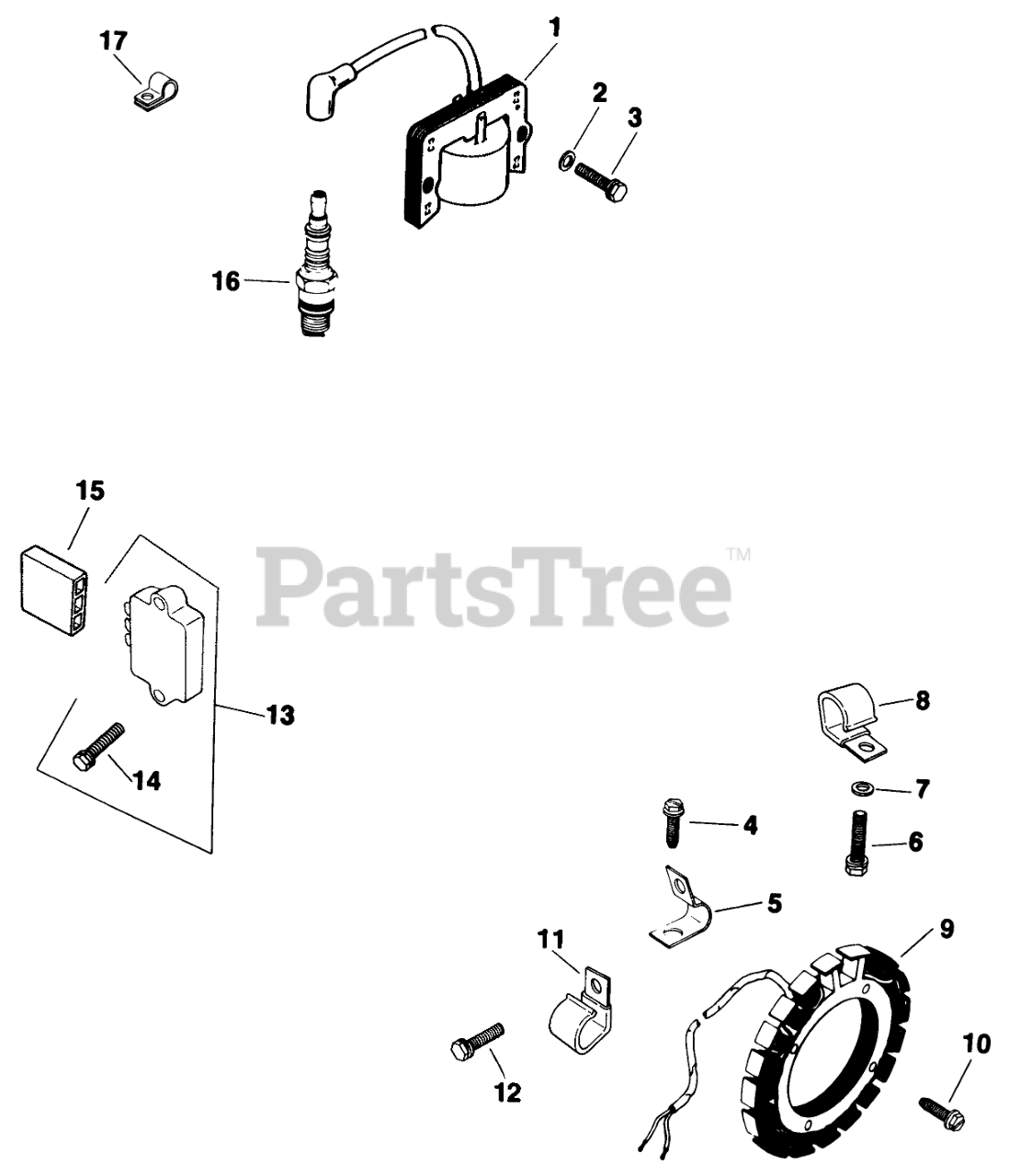

KOHLER IGNITION SYSTEM Parts Diagram

  • Title

1

Toro KH10321

Module-Ignition

$

$

Not available

2

Toro KH10572

Washer

$

$

Not available

3

Toro KH10548

Screw

$

$

Not available

4

Toro KH10606

Screw-Hex. Hd.

$

$

Not available

5

Toro KH10618

Clip

$

$

Not available

6

Screw 1/4-20 x 7/16

$

$

Not available

7

Washer Flat 1/4

$

$

Not available

8

Clip

$

$

Not available

9

Toro KH10091

Stator Kit 15 amp (Includes Item #8)

$

$

Not available

10

Toro KH10605

Screw

$

$

Not available

11

Clip

$

$

Not available

12

Screw 1/4-20 x 1/2

$

$

Not available

13

Toro KH10215

Regulator-Rectifier

$

$

Not available

14

Toro KH10543

Screw

$

$

Not available

15

Toro KH10082

Connector

$

$

Not available

16

Toro KH10056

Plug-Spark

$

$

Not available

17

Toro KH10010

Clip-Hi-Tension

$

$

Not available

Toro KH10315

Lead-Wire, Module to Connector

$

$

Not available

Toro KH10314

Lead-White, Module to Connector (15") After Serial #1715900003

$

$

Not available

Toro KH10313

Lead-Violet, Regulator Rectifier to Connector

$

$

Not available

Toro KH10570

Washer

$

$

Not available

Toro KH10344

Clip

$

$

Not available
