31-16K802 (416-8) - Toro Garden Tractor (1986) MECHANICAL TRANSMISSION-8-SPEED Parts Diagram

Garden Tractor

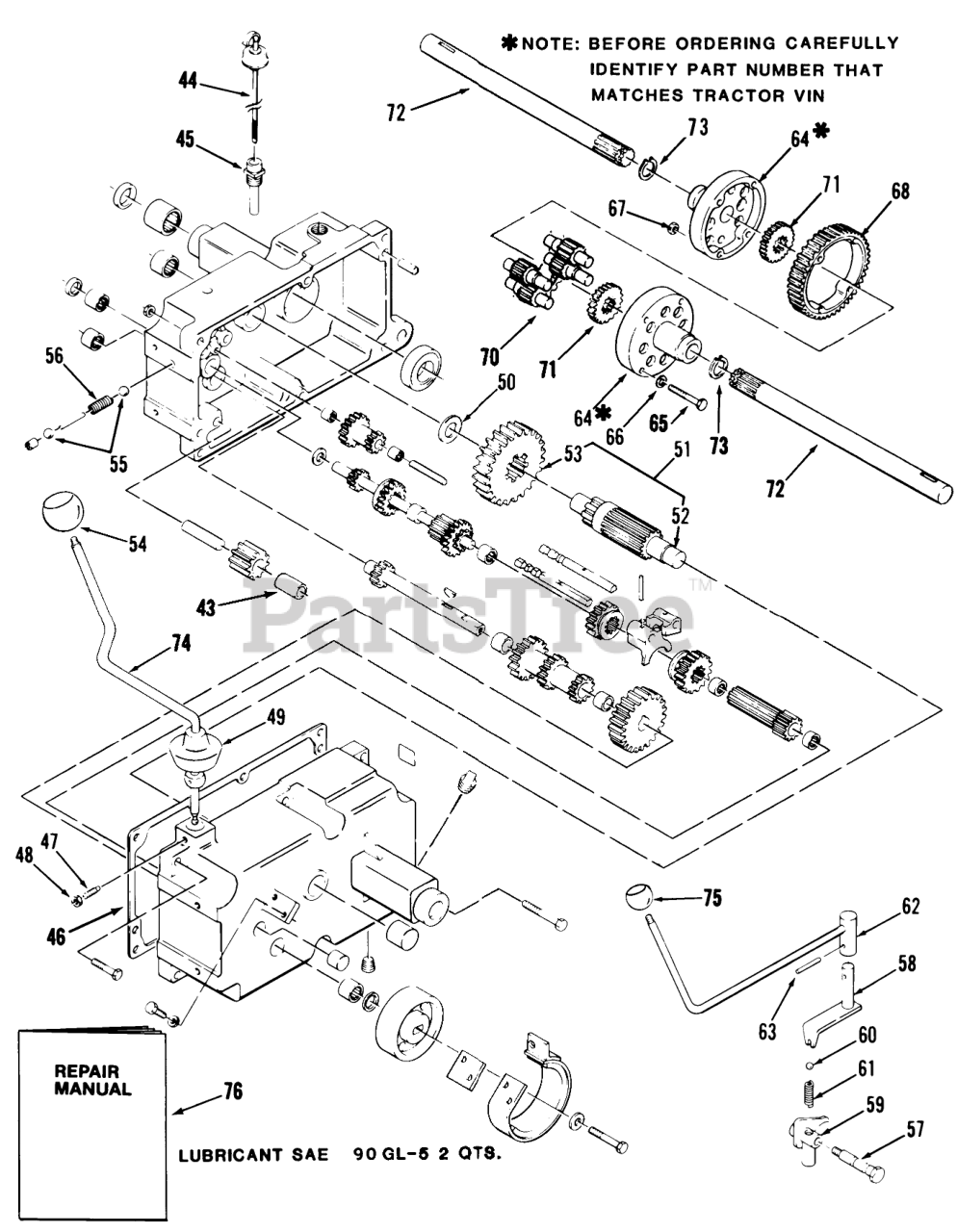

MECHANICAL TRANSMISSION-8-SPEED Parts Diagram

  • Title

43

Toro 1516

BUSHING

$

$

Not available

44

Toro 106447

ASSY-DIPSTICK

$

$

Not available

45

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

46

Toro 3912

GASKET-TRANSMISSION

$10.99

$

In Stock, Qty 5

0

47

Toro 1239

SETSCREW

$11.99

$

In Stock, Qty 7

0

48

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 13

0

49

Toro 3577

COVER-DUST

$

$

Not available

50

Toro 9547

WASHER-THRUST

$6.99

$

Usually ships in 3-6 days

0

51

Toro 102974

GEAR ASM

$

$

Not available

52

Toro 101625

PINION SHAFT

$

$

Not available

53

Toro 101626

GEAR

$

$

Not available

54

Toro 108758

KNOB

$16.99

$

In Stock, only 4 left!

0

55

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 3 left!

0

56

Toro 106030

SPRING-SHIFT STOP

$2.99

$

In Stock, Qty 19

0

57

Toro 7213

BOLT-DETENT

$58.99

$

Usually ships in 3-6 days

0

58

Toro 7214

SHIFT ASM

$49.99

$

Usually ships in 3-6 days

0

59

Toro 7209

Shift Fork
(Superseded to 116636-03)

$

$

Not available

60

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 3 left!

0

61

Toro 106030

SPRING-SHIFT STOP

$2.99

$

In Stock, Qty 19

0

62

Toro 110727

SHIFT ROD ASM

$

$

Not available

63

Toro 933184

PIN-SPIROL

$1.99

$

In Stock, Qty 8

0

64

Toro 105062

CASE-DIFFERENTIAL

$152.99

$

Usually ships in 3-6 days

0

Toro 111197

END CAP-DIFFERENTIAL

$

$

Not available

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 1 left!

0

65

Toro 908138

Bolt 3/8-16 x 3 1/4
(Superseded to 323-20)

$3.99

$

In Stock, Qty 12

0

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, Qty 20+

0

66

Toro 107374

WASHER

$0.99

$

In Stock, Qty 14

0

67

Toro 108881

NUT

$6.49

$

In Stock, Qty 13

0

68

Toro 105063

DIFFERENTIAL BULL GR

$

$

Not available

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1281.99

$

Usually ships in 3-6 days

0

70

Toro 101623

GEAR-PINION, 11T

$122.99

$

Usually ships in 3-6 days

0

71

Toro 3908

AXLE GEAR

$187.99

$

Usually ships in 3-6 days

0

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

72

Toro 5961

AXLE-REAR

$

$

Not available

Toro 105875

AXLE-REAR

$435.99

$

Usually ships in 3-6 days

0

73

Toro 7939

Snap Ring
(Superseded to 32151-36)

$4.99

$

In Stock, Qty 20+

0

Toro 105876

RING-SNAP

$6.49

$

Usually ships in 3-6 days

0

74

Toro 110725

ASM-Rod
(Superseded to 95-7684)

$212.99

$

In Stock, only 1 left!

0

75

Toro 1001

Knob

$

$

Not available

76

Toro A-1392

MANUAL

$

$

Not available
