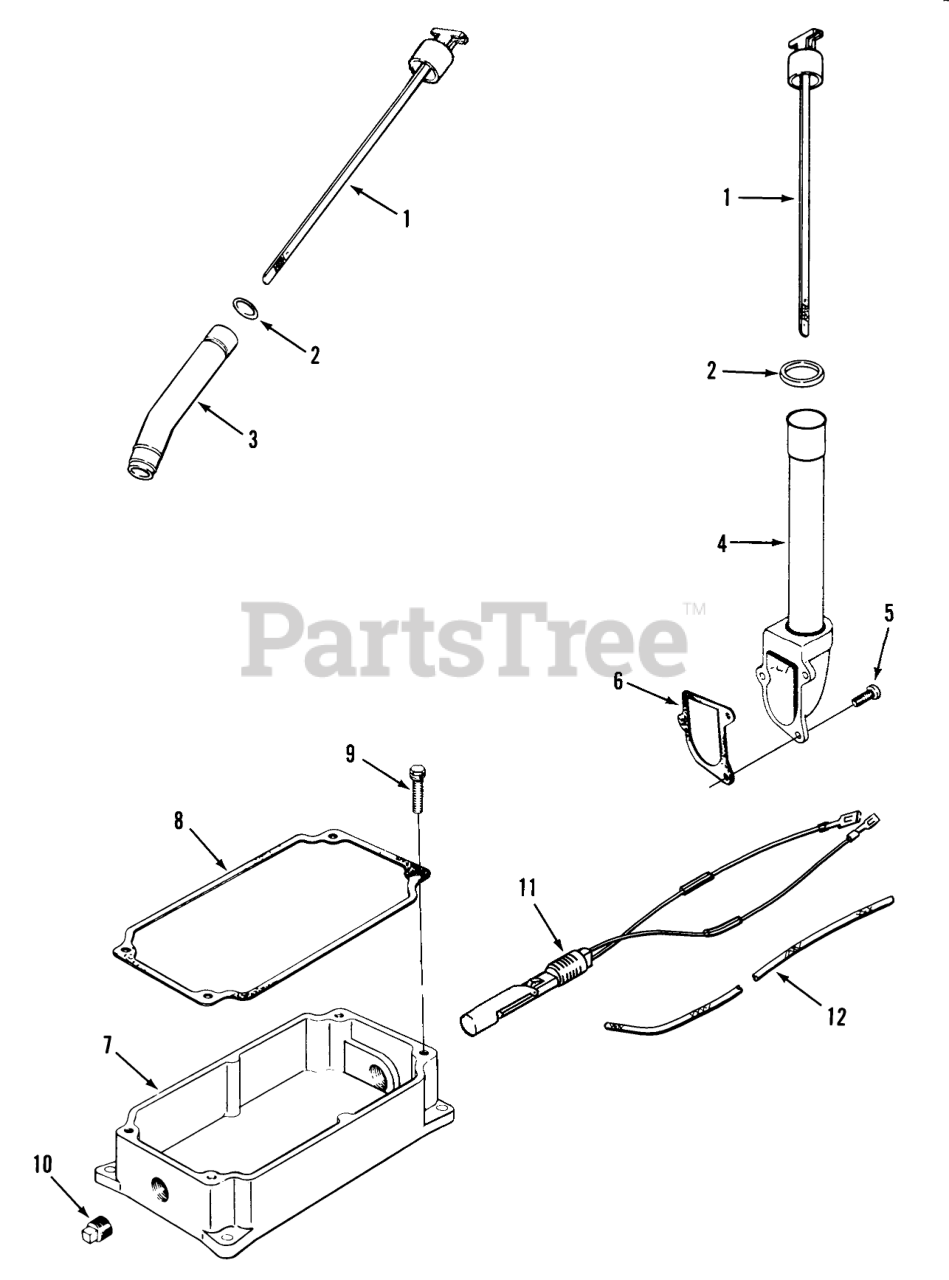

31-16K804 (416-8) - Toro Garden Tractor (1988) OIL PAN & DIPSTICK Parts Diagram

Garden Tractor

OIL PAN & DIPSTICK Parts Diagram

  • Title

1

Toro KH10163

Dipstick 12-13/16 308 Only

$

$

Not available

Toro KH10270

Dipstick

$

$

Not available

2

Toro KH10201

0-Ring

$

$

Not available

3

Toro KH10193

Oil Fill Tube 308 Only

$

$

Not available

4

Toro KH10266

Adapter-Oil Fill

$

$

Not available

5

Toro KH10541

Screw

$

$

Not available

6

Toro KH10088

Gasket

$

$

Not available

7

Toro KH10207

Oil Pan 308 Only

$

$

Not available

Toro KH10248

Oil Pan

$

$

Not available

8

Toro KH10166

Oil Pan Gasket 308 Only

$

$

Not available

Toro KH100592

Oil Pan Gasket 310, 312, 414, 416

$

$

Currently unavailable

9

Toro KH10547

H.C. Screw 5/16-18 x 1-1/8 308

$

$

Not available

Toro KH10550

Screw

$

$

Not available

10

Toro KH10622

Sq. Hd. Plug 1/2 NPTF 308 Only

$

$

Not available

Toro KH10620

Plug

$

$

Not available

11

Toro KH10138

Float Switch Kit (includes items 12 & Decal) 310, 312, 414, 416

$

$

Not available

12

Toro KH10134

Sleeve

$

$

Not available

Toro KH10119

Decal-Float Switch

Note: Not illustrated

$

$

Not available

Toro KH10345

Connector

Note: Not illustrated

$

$

Not available

Toro KH10222

Gasket Set w/ Seals 308

Note: Not illustrated

$

$

Not available

Toro KH10325

Set-Gasket w/Seal

Note: Not illustrated

$

$

Not available

Toro KH10250

Gasket Set w/ Seals 416

Note: Not illustrated

$

$

Not available

Toro KH10156

Gasket Set w/o Seals 308

Note: Not illustrated

$

$

Not available

Toro KH10258

Plug

Note: Not illustrated

$

$

Not available

Toro KH10225

Gasket Set w/o Seals 416

Note: Not illustrated

$

$

Not available
