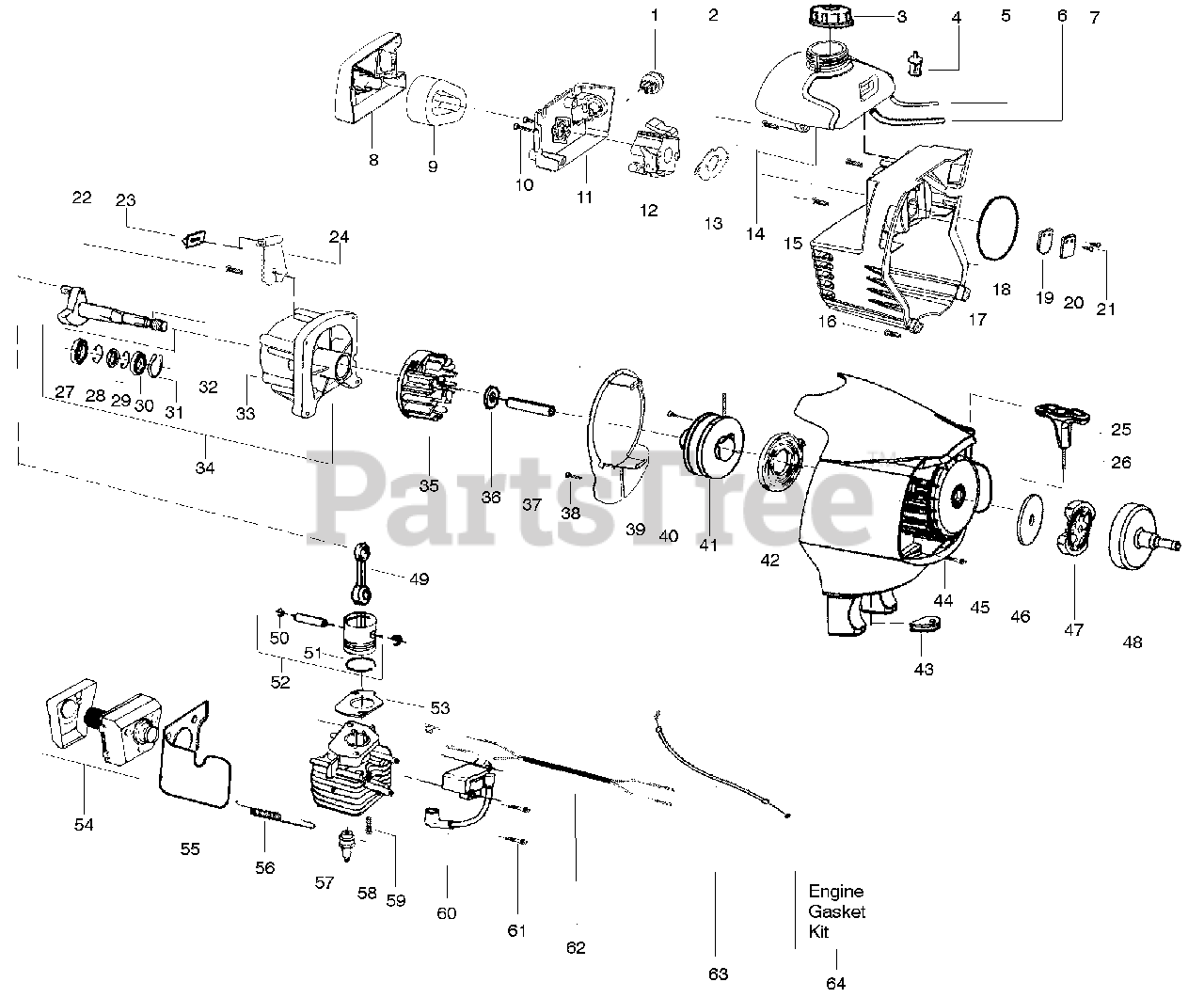

31 WG - Poulan String Trimmer (2006-06) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Electrolux/AYP 530047721

Bulb-purge

$6.49

$

In Stock, Qty 20+

0

2

Electrolux/AYP 530015843

Screw-tank

$6.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 530049386

Assy-Fuel cap
(Superseded to 578931605)

$7.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530095646

Assy-Fuel pick-up

$4.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 530071404

Kit-Fuel line
(Superseded to 530069247)

$6.49

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530069216

Kit-Fuel/Purge line

$6.49

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 530054935

Cover-Air box

$

$

Not available

9

Electrolux/AYP 530054946

Filter-Air

$30.99

$

In Stock, Qty 14

0

10

Electrolux/AYP 530015849

Screw-carb.

$6.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530054934

Air Box

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530071565

Kit-Carb Assy. (WT-619)
(Superseded to 530071637)

$87.99

$

In Stock, only 1 left!

0

Electrolux/AYP 530071636

Kit-Carb Assy. (WT-627)
(Superseded to 530071637)

$87.99

$

In Stock, only 1 left!

0

Electrolux/AYP 530071637

Kit-Carb Assy. (WT-628)

$87.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 530071401

Gasket-Carb. (kit)

$

$

Not available

14

Electrolux/AYP 530055317

Assy-Fuel tank
(Superseded to 545075305)

$

$

Not available

15

Electrolux/AYP 530015771

Screw-crankcase

$6.49

$

In Stock, Qty 6

0

16

Electrolux/AYP 530015952

Screw-shrd to f/hsg.

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530056044

Shroud

$

$

Not available

18

Electrolux/AYP 530071401

O-ring-c/case (kit)

$

$

Not available

19

Electrolux/AYP 530027593

Valve-reed

$6.49

$

In Stock, only 4 left!

0

20

Electrolux/AYP 530054596

Stop-reed valve

$

$

Not available

21

Electrolux/AYP 530016064

Screw-reed valve

$4.99

$

In Stock, Qty 8

0

22

Electrolux/AYP 530015875

Screw-tank retainer

$4.99

$

In Stock, only 3 left!

0

23

Electrolux/AYP 530055492

Isolator-fuel tank

$

$

Not available

24

Electrolux/AYP 530054941

Ret.-fuel tank

$

$

Not available

25

Electrolux/AYP 530054834

Handle-starter

$4.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 530071400

Kit-Rope
(Superseded to 530071325)

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530032103

Bearing-inner
(Superseded to 545081601)

$10.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530015787

Retainer

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530019158

Seal

$6.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530032102

Bearing-outer

$

$

Not available

31

Electrolux/AYP 530015789

Retainer-crankshaft

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530054948

Assy-crankshaft

$

$

Not available

33

Electrolux/AYP 530012514

Assy-crankcase
(Superseded to 545081901)

$

$

Not available

34

Electrolux/AYP 530071685

Kit-Assy-c'case/c'shaft
(Superseded to 545006037)

Note: (incl. 27-31,32,33)

$

$

Not available

35

Electrolux/AYP 530071402

Kit-Flywheel Assy.

$34.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 530016030

Washer

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530055620

Spacer

$7.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530015775

Screw-baffle

$6.49

$

In Stock, only 2 left!

0

39

Electrolux/AYP 530056864

Plate-baffle
(Superseded to 530054939)

$4.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 530016391

Screw-rope

$2.23

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 530071399

Kit-pulley

Note: (Incl. #40)

$10.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530042086

Spring-starter
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

43

Electrolux/AYP 530019182

Grommet

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 530015810

Screw-F/hsg
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

45

Electrolux/AYP 530056226

Housing-Fan w/eyelet

$

$

Not available

46

Electrolux/AYP 530094189

Washer-Clutch

$6.49

$

In Stock, only 1 left!

0

47

Electrolux/AYP 530055122

Assy.-Clutch

$13.99

$

In Stock, Qty 5

0

48

Electrolux/AYP 530028799

Assy-Drum
(Superseded to 530150247)

$31.99

$

In Stock, only 1 left!

0

49

Electrolux/AYP 530010960

Assy-Connecting rod

$18.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530015162

Retainer-piston pin

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530025875

Ring-Piston

$

$

Not available

52

Electrolux/AYP 530069899

Kit-Piston

$

$

Not available

53

Electrolux/AYP 530071401

Gasket-Cylinder (kit)

$

$

Not available

54

Electrolux/AYP 530069310

Kit-Muffler

$

$

Not available

55

Electrolux/AYP 530053346

Heat shield/air dam
(Superseded to 530058957)

$6.49

$

In Stock, only 2 left!

0

56

Electrolux/AYP 530036409

Spring-muffler

$

$

Not available

57

Electrolux/AYP 530071582

Kit-Cylinder

$

$

Not available

58

Electrolux/AYP 952030249

Spark plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

59

Electrolux/AYP 530001624

Bolt-Cylinder

$3.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 530039218

Module-Ignition

$

$

Not available

61

Electrolux/AYP 530016357

Screw-module

$6.49

$

In Stock, Qty 5

0

62

Electrolux/AYP 530057238

Assy-Rear wire

$

$

Not available

63

Electrolux/AYP 530054942

Assy-Throttle Cable

$7.49

$

In Stock, only 3 left!

0

64

Electrolux/AYP 530071401

Kit-Gasket

$

$

Not available
