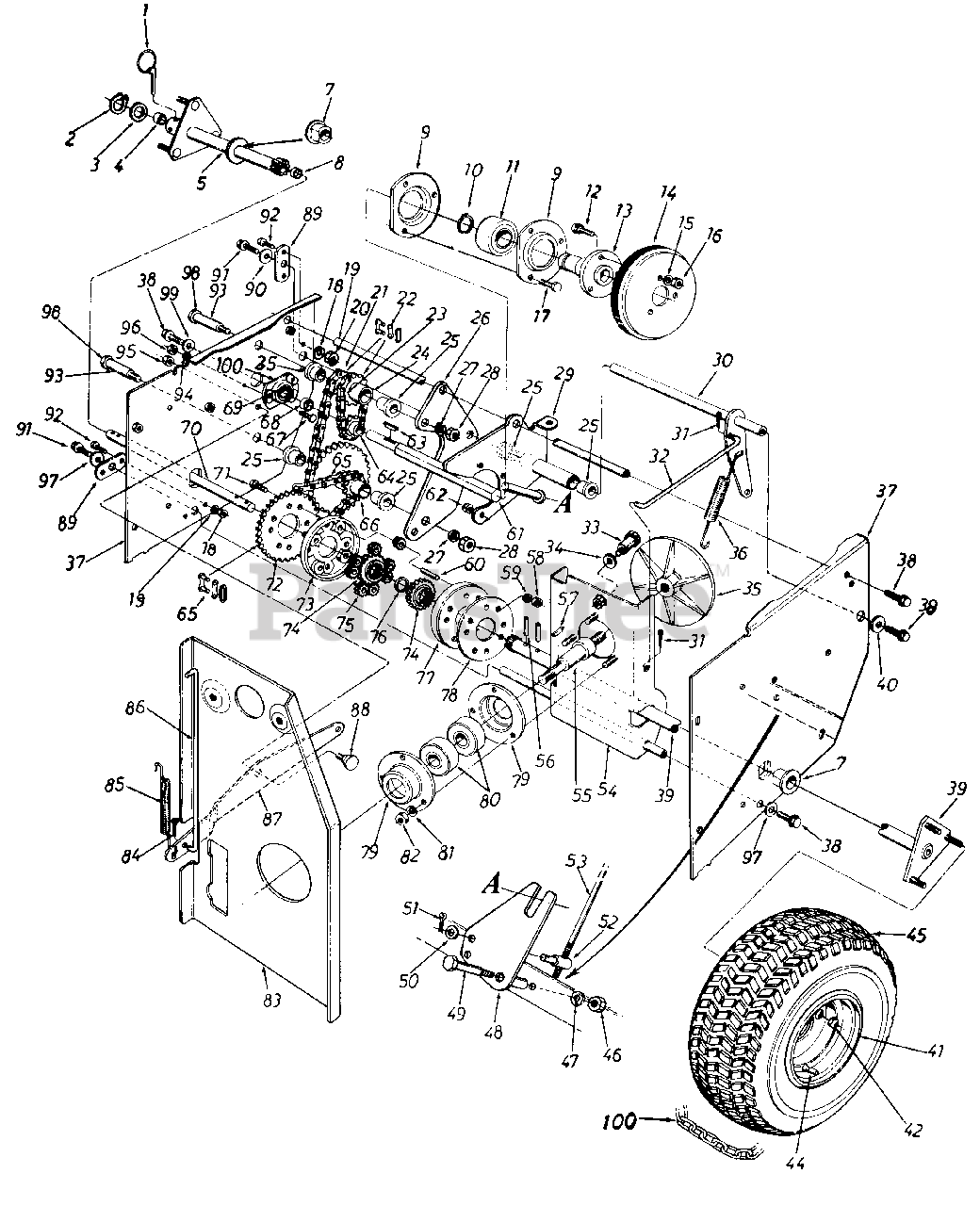

310-960-352 - MTD Snow Thrower (1990) (Walmart) Parts Parts Diagram

Snow Thrower

Parts Parts Diagram

  • Title
1

MTD Part# 714-0143

Klick Pin 1/4" Dia. x 1.75"
(Superseded to 714-0143A)
Usually ships in 1 day

$

$4.55

0

2

MTD Part# 716-0115

Snap Ring .625" Shaft
(Superseded to 916-0115)
Usually ships same day

Not available

$

$

3

MTD Part# 736-0187

Fl-Wash. .62" I.D. x 1.25"
Usually ships in 1 day

$

$3.19

0

4

MTD Part# 741-0305

Sleeve Brg.

Note: (Must Be Drilled After Press Fit)

Usually ships same day

Not available

$

$

5

MTD Part# 05637

Differential Tubing Ass'y. R.H.
Usually ships same day

Currently unavailable

$

$

7

MTD Part# 741-0192

Flange Brg. w/Flats 1" I.D.
(Superseded to 941-0170)
Usually ships in 1 day

$

$14.17

0

8

MTD Part# 741-0305

Sleeve Brg.
Usually ships same day

Not available

$

$

9

MTD Part# 05794

Bearing Housing
Usually ships same day

Not available

$

$

10

MTD Part# 716-0102

Snap Ring 1.00" Dia.
(Superseded to 916-0102)
Usually ships same day

Not available

$

$

11

MTD Part# 741-0301

Ball Brg. .25MM x 52MM x 15MM Thk.
(Superseded to 941-0301)
Usually ships in 1 day

$

$37.66

0

12

MTD Part# 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.*
(Superseded to 910-0198)
Usually ships same day

Not available

$

$

13

MTD Part# 748-0281

Friction Wheel Adapter
Usually ships same day

Not available

$

$

14

MTD Part# 05080A

Friction Wheel Ass'y.
(Superseded to 05080AP)
Usually ships in 1 day

$

$30.18

0

15

MTD Part# 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

16

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

17

MTD Part# 710-0195

Hex Bolt 1/4-28 x .62" Lg.*
(Superseded to 910-0195)
Usually ships in 1 day

$

$2.53

0

18

MTD Part# 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

19

MTD Part# 738-0278

Sliding Support Axle
Usually ships same day

Not available

$

$

20

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

21

MTD Part# 713-0270

#41 Chain 1/2" Pitch x 43 Links
Usually ships same day

Not available

$

$

22

MTD Part# 713-0723

Master Link
(Superseded to 913-0723)
Usually ships same day

Not available

$

$

23

MTD Part# 713-0199

#41 Chain 1/2" Pitch x 19 Links
Usually ships same day

Not available

$

$

MTD Part# 713-0723

Master Link
(Superseded to 913-0723)
Usually ships same day

Not available

$

$

24

MTD Part# 713-0193

9 and 14 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0193)
Usually ships in 5 to 10 days

$

$66.10

0

25

MTD Part# 748-0184

Flange Brg. .630" I.D.
Usually ships in 1 day

$

$6.09

0

26

MTD Part# 05520

Chain Support Brkt.

Variations

MTD Part# 05520-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

27

MTD Part# 736-0217

L-Wash. 3/8" I.D. H.D.
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

28

MTD Part# 712-0116

Hex L-Jam Nut 3/8-24 Thd.
(Superseded to 912-0116)
Usually ships same day

Not available

$

$

29

MTD Part# 784-5137

Sliding Brkt. Ass'y.
Usually ships same day

Not available

$

$

30

MTD Part# 05500

Drive Clutch Brkt. Ass'y.
Usually ships same day

Currently unavailable

$

$

31

MTD Part# 714-0104

Inter. Cot. Pin 5/16" Dia.
(Superseded to 914-0104)
Usually ships in 1 day

$

$3.09

0

32

MTD Part# 747-0150

Drive Clutch Rod 7.38" Lg.
Usually ships same day

Not available

$

$

33

MTD Part# 738-0144

Shld. Bolt
(Superseded to 938-0144)
Usually ships same day

Not available

$

$

34

MTD Part# 736-0105

Bell-Wash. .44" I.D. x .88"
Usually ships in 1 day

$

$3.15

0

35

MTD Part# 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)
Usually ships in 1 day

$

$70.27

0

36

MTD Part# 732-0121

Extension Spring 4.31" Lg.
(Superseded to 932-0121)
Usually ships in 1 day

$

$10.49

0

37

MTD Part# 784-5129B

Frame Ass'y.
Usually ships same day

Currently unavailable

$

$

38

MTD Part# 710-0538

Hex L-Bolt 5/16-18 x .62"
Usually ships in 1 day

$

$3.19

0

39

MTD Part# 05820B

Differential Shaft Ass'y.
Usually ships same day

Not available

$

$

40

MTD Part# 736-0264

Fl-Wash. .345" I.D. x .75"
(Superseded to 936-0264)
Usually ships in 1 day

$

$4.81

0

41

MTD Part# 09262

Rim Only 16"
Usually ships same day

Not available

$

$

42

MTD Part# 712-0193

Cone Nut 3/8-24 Thd.
Usually ships same day

Not available

$

$

44

MTD Part# 734-0255

Tubeless Air Valve
(Superseded to 934-0255)
Usually ships in 1 day

$

$3.10

0

45

MTD Part# 734-0748

Wheel Ass'y. Comp. 16 x 6.5
Usually ships same day

Not available

$

$

MTD Part# 734-0275

Tire Only 16 x 6.5

Variations

MTD Part# 734-0275-0901

TIRE-16X6.5 - Carlisle (0901)
Usually ships in 5 to 10 days

$

$107.18

0

MTD Part# 734-0275-0905

TIRE-16X6.5 - Duro (0905)
Usually ships in 5 to 10 days

$

$107.18

0

MTD Part# 734-0275-0902

TIRE-16X6.5 - Dico (0902)
Usually ships same day

Not available

$

$

Usually ships in 5 to 10 days

$

$107.18

0

46

MTD Part# 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)
Usually ships in 1 day

$

$3.27

0

47

MTD Part# 736-0169

L-Wash. 3/8" I.D.*
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

48

MTD Part# 784-5133

Shift Linkage Brkt. Ass'y.

Variations

MTD Part# 784-5133-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

49

MTD Part# 738-0129

Shld. Bolt .498" Dia. x 2.005" Lg.
Usually ships in 5 to 10 days

$

$7.90

0

50

MTD Part# 736-0264

Fl-Wash. .344" I.D. x .62"
(Superseded to 936-0264)
Usually ships in 1 day

$

$4.81

0

51

MTD Part# 714-0507

Cotter Pin 3/32" Dia. x .75"
(Superseded to 914-0507)
Usually ships in 1 day

$

$3.15

0

52

MTD Part# 711-0628A

Adjustment Ferrule
Usually ships same day

Not available

$

$

53

MTD Part# 747-0356

Shifting Rod
Usually ships same day

Not available

$

$

54

MTD Part# 05497

Drive Plate Mtg. Brkt. Ass'y.

Variations

MTD Part# 05497-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

55

MTD Part# 738-0279

Drive Plate Spindle
Usually ships in 5 to 10 days

$

$43.79

0

56

MTD Part# 715-0136

H-Spring Pin Spiral 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0136)
Usually ships same day

Not available

$

$

57

MTD Part# 714-0388

#61 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)
Usually ships in 1 day

$

$5.42

0

58

MTD Part# 712-0138

Hex Nut 1/4-28 Thd.
(Superseded to 912-0138)
Usually ships same day

Not available

$

$

59

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

60

MTD Part# 738-0304

Differential Pin
Usually ships same day

Not available

$

$

61

MTD Part# 738-0280

Hex Shaft
Usually ships same day

Not available

$

$

62

MTD Part# 712-0896

Hex L-Nut 1/4-28 Thd.
Usually ships in 1 day

$

$3.27

0

63

MTD Part# 714-0129

#9 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)
Usually ships same day

Not available

$

$

64

MTD Part# 748-0204

8 Teeth Sprocket
Usually ships in 1 day

$

$7.45

0

65

MTD Part# 713-0269

#420 Chain .50 Pitch x 37 Links
(Superseded to 913-0269)
Usually ships in 5 to 10 days

$

$30.61

0

MTD Part# 713-0154

Master Link
(Superseded to 913-0154)
Usually ships in 1 day

$

$2.89

0

66

MTD Part# 713-0194

9 and 32 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0194)
Usually ships in 1 day

$

$107.94

0

67

MTD Part# 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

68

MTD Part# 750-0277

Spacer .51" I.D. x .69" O.D.
Usually ships same day

Not available

$

$

69

MTD Part# 741-0133

Ball Bearing
Usually ships in 5 to 10 days

$

$25.19

0

70

MTD Part# 738-0284

Differential Connecting Shaft
Usually ships same day

Not available

$

$

71

MTD Part# 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.
Usually ships same day

Not available

$

$

72

MTD Part# 713-0198

28 Teeth Sprocket
Usually ships same day

Currently unavailable

$

$

73

MTD Part# 748-0222

Differential Housing
Usually ships same day

Not available

$

$

74

MTD Part# 748-0224

20 Tooth Spur Gear
Usually ships same day

Not available

$

$

75

MTD Part# 748-0223

9 Tooth Spur Gear
Usually ships same day

Not available

$

$

76

MTD Part# 736-0187

Fl-Wash. .62" I.D. x 1.25"
Usually ships in 1 day

$

$3.19

0

77

MTD Part# 748-0222

Differential Housing
Usually ships same day

Not available

$

$

78

MTD Part# 05484

Differential Hsg. Support Plate
Usually ships same day

Not available

$

$

79

MTD Part# 08253B

Bearing Housing
Usually ships in 1 day

$

$14.27

0

80

MTD Part# 741-0919

Ball Brg. .787" I.D. x 1.85"
(Superseded to 941-0919B)
Usually ships in 1 day

$

$18.12

0

81

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

82

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

83

MTD Part# 05491A

Engine Brkt. Ass'y.
Usually ships same day

Not available

$

$

84

MTD Part# 714-0104

Inter. Cotter Pin 5/16" Dia.
(Superseded to 914-0104)
Usually ships in 1 day

$

$3.09

0

85

MTD Part# 732-0303

Extension Spring 3.18" Lg.
(Superseded to 932-0303)
Usually ships in 1 day

$

$7.16

0

86

MTD Part# 747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.
Usually ships same day

Currently unavailable

$

$

87

MTD Part# 05518

Auger Clutch Brkt.
Usually ships same day

Not available

$

$

88

MTD Part# 738-0281

Shld. Bolt .625" Dia. x .170"
(Superseded to 938-0281)
Usually ships in 5 to 10 days

$

$7.36

0

89

MTD Part# 05523

Pivot Axle Brkt.
Usually ships same day

Not available

$

$

90

MTD Part# 736-0264

Fl-Wash. .345" I.D. x .75"
(Superseded to 936-0264)
Usually ships in 1 day

$

$4.81

0

91

MTD Part# 710-0538

Hex L-Bolt 5/16-18 x .62"
Usually ships in 1 day

$

$3.19

0

92

MTD Part# 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

93

MTD Part# 750-0275

Sprocket Hub Tubing 1.88"
Usually ships same day

Not available

$

$

94

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

95

MTD Part# 712-0375

Hex Cent. L-Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.19

0

96

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

97

MTD Part# 736-0159

Fl-Wash. .344" I.D. x .875"
(Superseded to 936-0159)
Usually ships same day

Not available

$

$

98

MTD Part# 710-0629

Hex Bolt 3/8-24 x 2.75" Lg.
Usually ships same day

Not available

$

$

99

MTD Part# 736-0242

Bell-Wash. .345" I.D. x .88"
Usually ships in 1 day

$

$3.00

0

100

MTD Part# 390-0146

Tire Chain

Note: (Optional)

Usually ships same day

Currently unavailable

$

$
