310 BVr (41CS310G034) - Ryobi Blower Vacuum Blower/Vacuum Parts Diagram

Blower Vacuum

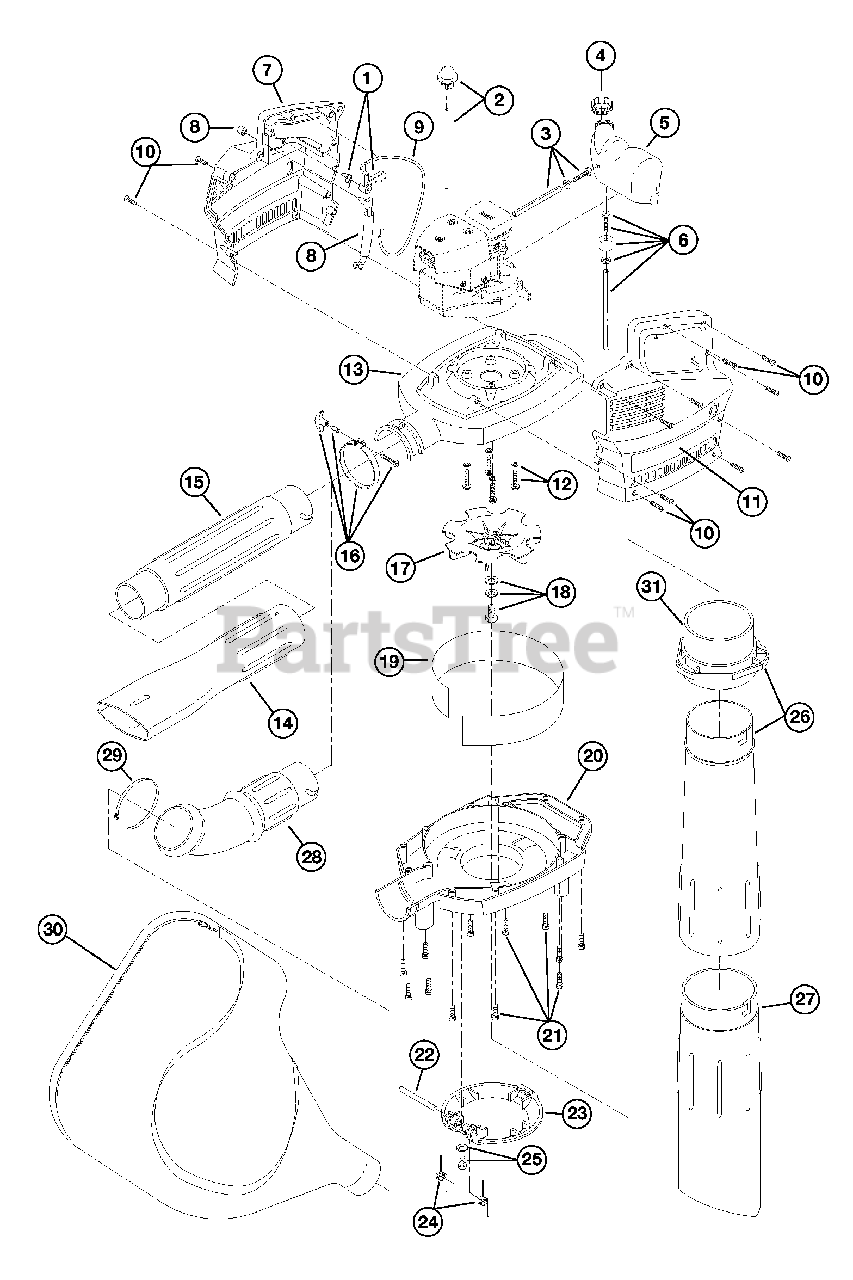

Blower/Vacuum Parts Diagram

  • Title

1

MTD 791-00036

Trigger Assembly

$

$

Not available

2

MTD 791-147351

Primer Bulb and Hose Assembly

$

$

Not available

3

MTD 791-00028

Return Line Assembly

$

$

Not available

4

MTD 791-180000

Fuel Cap Assembly
(Superseded to 791-180000B)

$17.99

$

Usually ships in 3-6 days

0

5

MTD 791-147350

Complete Fuel Tank Assembly

Note: (includes items 3, 4 and 6)

$

$

Not available

6

MTD 791-147036

Fuel Line Assembly

$

$

Not available

7

MTD 791-180484

R.H. Engine Cover

$

$

Not available

8

MTD 791-147038

Switch and Lead Assembly

$

$

Not available

9

MTD 791-00029

Throttle Wire and Housing Assembly

$

$

Not available

10

MTD 791-147049

Mounting Screw Assembly

$16.99

$

Usually ships in 3-6 days

0

11

MTD 791-180485

L.H. Engine Cover

$

$

Not available

12

MTD 791-180058

Mounting Screw Assembly

$

$

Not available

13

MTD 791-180478

Upper Blower Housing

$

$

Not available

14

MTD 791-180469

Blower Tube/w Nozzle

$

$

Not available

15

MTD 791-180480

Blower Tube

$

$

Not available

16

MTD 791-180481

Clamp Assembly

$

$

Not available

17

MTD 791-147353

Impeller

$

$

Not available

18

MTD 791-181514

Mounting Bolt Assembly

$

$

Not available

19

MTD 791-181586

Impact Shield

$

$

Not available

20

MTD 791-180487

Lower Blower Housing

$

$

Not available

21

MTD 791-147049

Mounting Bolt Assembly

$16.99

$

Usually ships in 3-6 days

0

22

MTD 791-147053

Hinge Shaft

$

$

Currently unavailable

23

MTD 791-147817

Intake Cover

$

$

Currently unavailable

24

MTD 791-147051

Spring Set

$

$

Not available

25

MTD 791-181515

Mounting Screw Assembly

$

$

Not available

26

MTD 791-180712

Upper Vacuum Tube and Adapter

Note: Vacuum Part

$

$

Not available

27

MTD 791-180467

Lower Vacuum Tube

Note: Vacuum Part

$35.99

$

In Stock, Qty 5

0

28

MTD 791-180489

Elbow

Note: Vacuum Part

$

$

Not available

29

MTD 791-612930

Clamp

Note: Vacuum Part

$10.99

$

Usually ships in 3-6 days

0

30

MTD 791-180490

Vacuum Bag Assembly

Note: (includes 28 & 29); Vacuum Part

$65.99

$

Usually ships in 3-6 days

0

31

MTD 791-181553

Adapter-Upper Vacuum Tube

Note: Vacuum Part

$

$

Not available

MTD 791-180479

Engine Decal Kit

Note: Optional Accessories; not shown

$

$

Currently unavailable

MTD 791-682075

Shoulder Strap
(Superseded to 791-682075B)

Note: Optional Accessories; not shown

$36.99

$

Usually ships in 3-6 days

0

MTD 791-147541

Ryobi 2-Cycle Oil (48-4 oz bottles)

Note: Optional Accessories; not shown

$

$

Currently unavailable
