310 - Husqvarna Automower Robotic Lawn Mower (2016-01) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

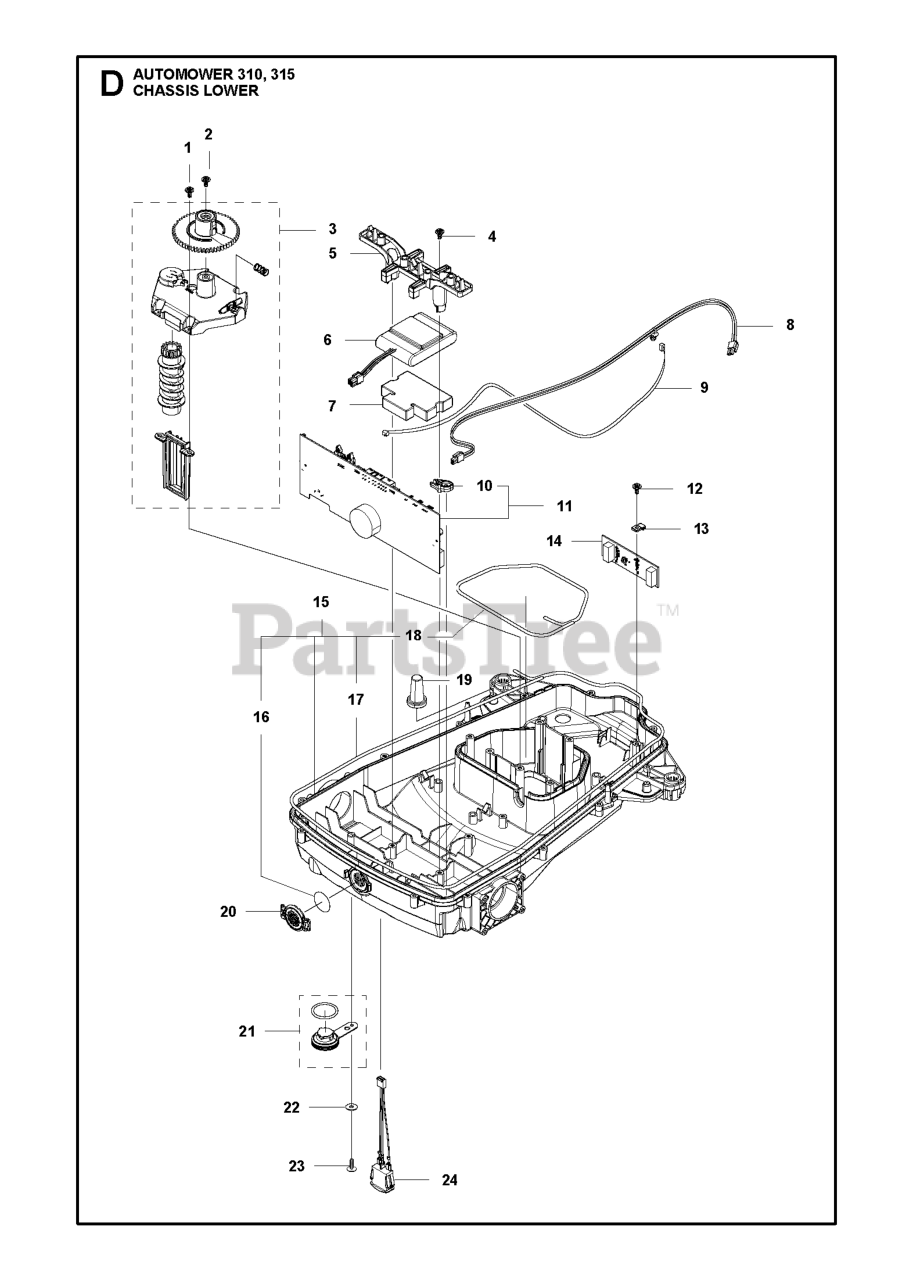

CHASSIS LOWER Parts Diagram

  • Title

16

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

$59.99

$

Usually ships in 3-10 days

0

6

Husqvarna 589586201

BATTERY LI-ION

$203.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501106601

COVER KIT

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 587249601

WEIGHT CENTER
(Superseded to 589366201)

$29.99

$

Usually ships in 3-10 days

0

15

Husqvarna 587449201

CHASSIS KIT LOWER
(Superseded to 587449202)

$101.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581621202

PLUG KIT

$15.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585539001

LOOM CHARGING LINK

$

$

Not available

5

Husqvarna 585304701

HOLDER BATTERY
(Superseded to 589498001)

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 579529401

CLAMP PCB

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 588616101

SEALING STRIP CHASSIS UPPER 10
(Superseded to 574874708)

Note: Sealing 10 pcs Note: For warranty claims, please use part number for 1 pcs, see SB

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 586342601

COLUMN FRONT

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 588903001

PRINTED CIRCUIT ASSY LOOP SENS
(Superseded to 592852701)

$95.99

$

Usually ships in 3-10 days

0

20

Husqvarna 586038901

COVER AIR FILTER
(Superseded to 586038902)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 585538301

CLIP PCB

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 588616002

SEALING STRIP CHASSIS LOWER 10

Note: Sealing 10 pcs Note: For warranty claims, please use part number for 1 pcs, see SB

$131.99

$

Usually ships in 3-10 days

0

9

Husqvarna 579708201

LOOM LOOP SENSOR

$21.99

$

Usually ships in 3-10 days

0

22

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 579708701

LOOM ON/ OFF

$37.99

$

Usually ships in 3-10 days

0

11

Husqvarna 588779003

PCB MAIN BOARD
(Superseded to 592851801)

$478.99

$

Usually ships in 3-10 days

0
