310 - Husqvarna Automower Robotic Lawn Mower (2016-01) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

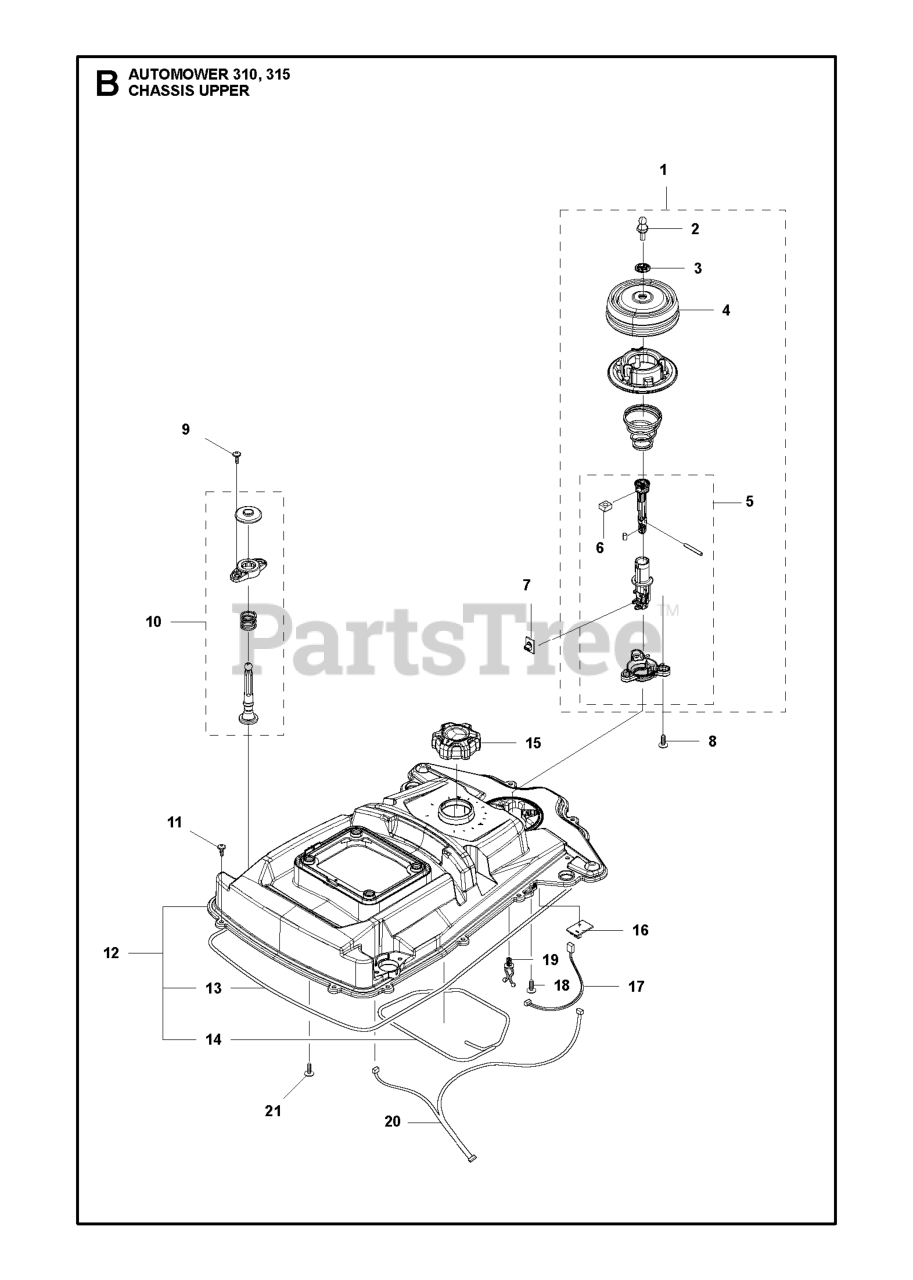

CHASSIS UPPER Parts Diagram

  • Title

13

Husqvarna 588616002

SEALING STRIP CHASSIS LOWER 10

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 584969001

PRINTED CIRCUIT ASSY COLLISION
(Superseded to 592909501)

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579474601

BELLOWS LIFT-COLLISION

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 587448802

JOYSTICK KIT

$31.99

$

Usually ships in 3-10 days

0

14

Husqvarna 588616101

SEALING STRIP CHASSIS UPPER 10
(Superseded to 574874708)

Note: Sealing 10 pcs Note: For warranty claims, please use part number for 1 pcs, see SB

$18.99

$

Usually ships in 3-10 days

0

7

Husqvarna 579669001

PRINTED CIRCUIT ASSY PCBA LIFT
(Superseded to 592852301)

$35.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587448902

CHASSIS KIT

$102.99

$

Usually ships in 3-10 days

0

2

Husqvarna 580526701

STUD SNAPLOC

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 588797801

WIRING ASSY HMI

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 594058601

JOYSTICK ASSY REAR

$29.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 581620903

JOYSTICK KIT

$94.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580682901

HOLDER TWIST LOCK

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503226601

NUT

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

15

Husqvarna 585281401

KNOB HEIGHT ADJUSTMENT

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 585208501

LOOM LIFT, COLLISION

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579525701

WASHER JOYSTICK

$3.49

$

Usually ships in 3-10 days

0
