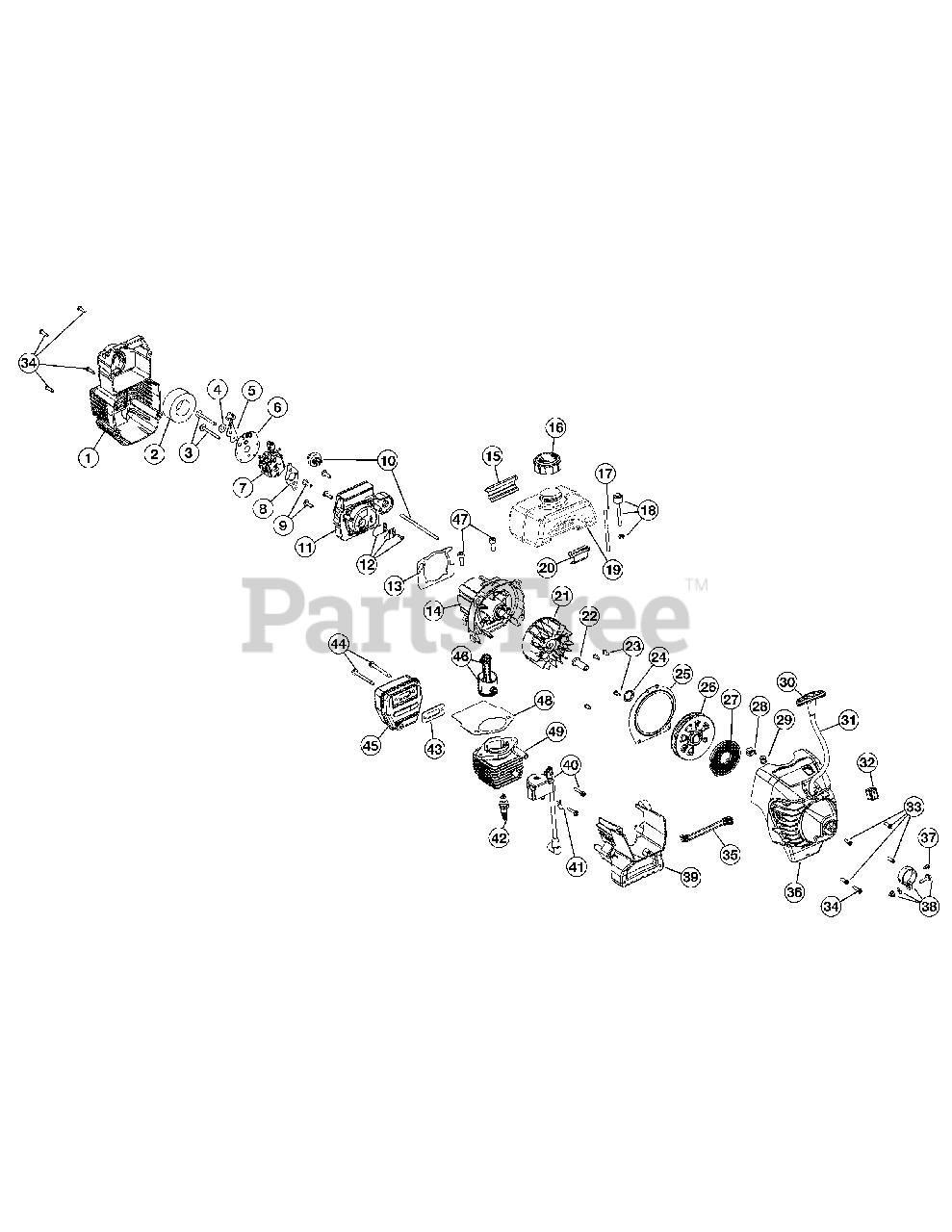

3100m (41AD310G900) - Yard Machines String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly (includes 2 & 34)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 12

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 13

0

5

MTD 753-04418

Choke Lever Assembly

$10.99

$

Usually ships in 3-6 days

0

6

MTD 753-04419

Choke Lever & Plate (includes 5)

$

$

Not available

7

MTD 753-04408

Carburetor Assembly (includes 8 & 18)

$66.99

$

In Stock, only 2 left!

0

8

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

9

MTD 791-181860

Carb Mount Screw

$

$

Not available

10

MTD 791-683974B

Primer and Hose Assembly

$21.99

$

In Stock, Qty 20+

0

11

MTD 753-1196

Carburetor Mount Assembly (Includes 9, 12 & 13)

$

$

Not available

12

MTD 791-684451

Reed Assembly

$

$

Not available

13

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, Qty 5

0

14

MTD 753-04321

Crankcase Service Assembly (includes 9)

$

$

Not available

15

MTD 791-612134

Rear Mounting Pad

$

$

Not available

16

MTD 791-182612

Fuel Cap Assembly

$18.99

$

In Stock, Qty 18

0

17

MTD 791-181086

Fuel Return Line

$6.99

$

In Stock, Qty 20+

0

18

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

19

MTD 791-182767

Fuel Tank Assembly (includes 16-18)

$

$

Not available

20

MTD 791-145308

Front Mounting Pad

$

$

Not available

21

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

22

MTD 791-610303

Square Nut Drive

$

$

Not available

23

MTD 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

24

MTD 753-04288

Palnut

$9.99

$

In Stock, only 3 left!

0

25

MTD 753-04928

Pressure Plate (includes 23 & 28)

$

$

Not available

26

MTD 753-04823

Recoil Pulley Assembly (includes 24 & 31)

$30.99

$

In Stock, Qty 9

0

27

MTD 753-04286

Recoil Spring

$24.99

$

In Stock, Qty 7

0

28

MTD 753-04824

Eyelet Retainer

$

$

Not available

29

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 3 left!

0

31

MTD 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

32

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

33

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

34

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 18

0

35

MTD 753-05023

Wire Lead
(Superseded to 794-00028)

$8.49

$

Usually ships in 3-6 days

0

36

MTD 753-05207

Starter Housing Assembly (includes 23-35)

$

$

Not available

37

MTD 753-04466

Anti-Rotation Screw

$

$

Not available

38

MTD 753-05056

Clamp Assembly (includes 37)

$

$

Not available

39

MTD 753-04409

Shroud Extension and Stand (includes 34)
(Superseded to 753-05091)

$17.99

$

Usually ships in 3-6 days

0

40

MTD 753-04324

Module Assembly

$102.99

$

In Stock, only 1 left!

0

41

MTD 791-611063

Ground Tab

$

$

Not available

42

MTD 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 10

0

43

MTD 753-04619

Exhaust Gasket

$8.49

$

In Stock, only 4 left!

0

44

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$3.99

$

Usually ships in 3-6 days

0

45

MTD 753-05169

Muffler Assembly (Includes 43, 44 & Spark Arrestor)

$104.99

$

Usually ships in 3-6 days

0

46

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

47

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

48

MTD 753-04182

Cylinder Gasket

$15.99

$

Usually ships in 3-6 days

0

49

MTD 753-04814

Cylinder Assembly (includes 47 & 48)

Note: Not shown

$78.99

$

In Stock, only 1 left!

0

MTD 753-1209

Piston Ring Set

Note: Not shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04826

Short Block Assembly (includes 14, 42 & 46-49)

$195.99

$

Usually ships in 3-6 days

0
