31041 (H 600) - Toro ProLine Rear-Engine Riding Mower (SN: 324000001 - 324999999) (2024) Main Bearing Case Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

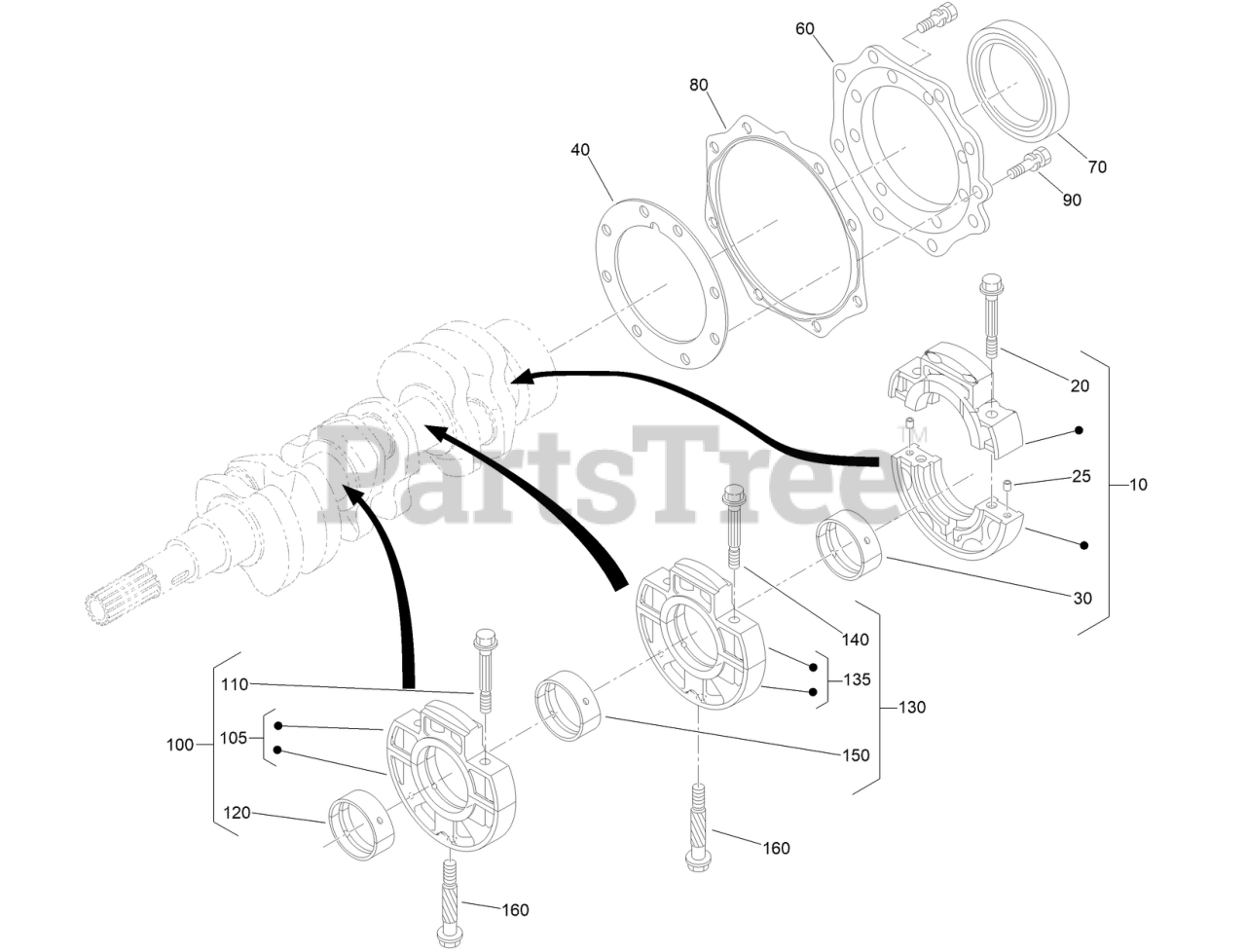

Main Bearing Case Assembly Parts Diagram

  • Title

10

Toro 125-9064

WHEEL BEARING CASE ASM

$293.99

$

Usually ships in 3-6 days

0

20

Toro 125-9065

BOLT-FLANGE

$3.99

$

Usually ships in 3-6 days

0

25

Toro 125-9082

PIN-STRAIGHT

$0.99

$

Usually ships in 3-6 days

0

30

Toro 100-2032

CRANKSHAFT-METAL (STD SET)

$

$

Not available

30

Toro 134-9681

METAL,CRANKSHAFT

$

$

Currently unavailable

30

Toro 130-1210

METAL-CRANKSHAFT

$40.99

$

Usually ships in 3-6 days

0

40

Toro 100-1873

GASKET-CASE, BEARING

$10.99

$

Usually ships in 3-6 days

0

60

Toro 112-8334

COVER-CASE, BEARING

$165.99

$

Usually ships in 3-6 days

0

70

Toro 110-3724

SEAL-OIL

$70.99

$

Usually ships in 3-6 days

0

80

Toro 100-1876

GASKET-COVER, CASE

$20.99

$

Usually ships in 3-6 days

0

90

Toro 100-1750

BOLT

$2.49

$

Usually ships in 3-6 days

0

100

Toro 130-1177

BEARING CASE ASM

$94.99

$

Usually ships in 3-6 days

0

105

Toro 100-1987

MAIN BEARING CASE ASM

$63.99

$

Usually ships in 3-6 days

0

110

Toro 100-1757

BOLT-CASE, BEARING

$4.99

$

Usually ships in 3-6 days

0

120

Toro 100-2033

CRANKSHAFT-METAL (STD SET)

$

$

Not available

120

Toro 100-1945

CRANKSHAFT-METAL (-0.2MM SET)

$

$

Not available

120

Toro 130-1217

METAL-CRANKSHAFT

$42.99

$

Usually ships in 3-6 days

0

130

Toro 130-1299

BEARING CASE ASM

$111.99

$

Usually ships in 3-6 days

0

135

Toro 100-2027

MAIN BEARING CASE ASM

$95.99

$

Usually ships in 3-6 days

0

140

Toro 100-1757

BOLT-CASE, BEARING

$4.99

$

Usually ships in 3-6 days

0

150

Toro 100-2033

CRANKSHAFT-METAL (STD SET)

$

$

Not available

150

Toro 100-1945

CRANKSHAFT-METAL (-0.2MM SET)

$

$

Not available

150

Toro 130-1217

METAL-CRANKSHAFT

$42.99

$

Usually ships in 3-6 days

0

160

Toro 100-1874

BOLT-CASE, BEARING

$14.99

$

Usually ships in 3-6 days

0
