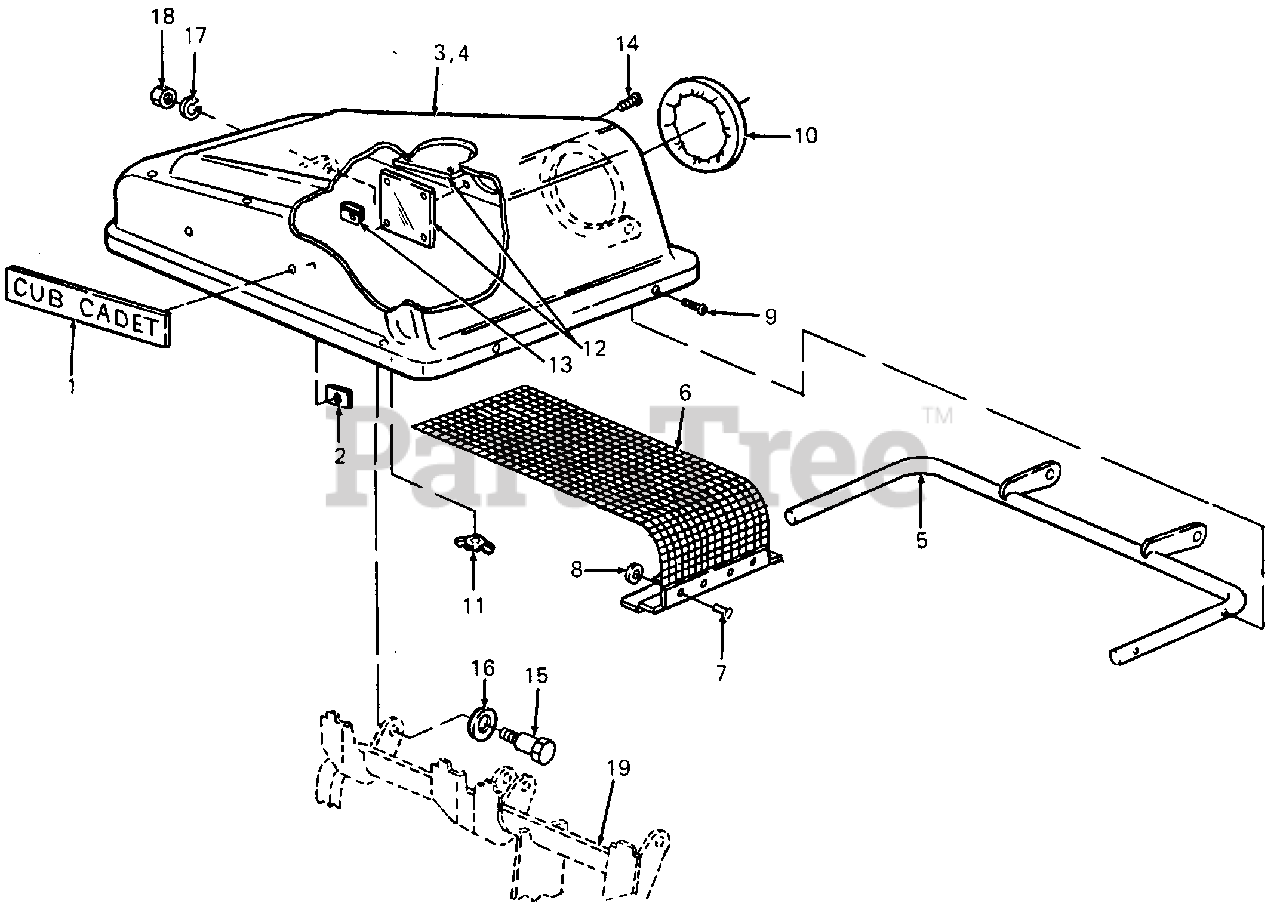

311 (190-311-100) - Cub Cadet Twin Rear Bagger att Cover Assembly Parts Diagram

Twin Rear Bagger

Cover Assembly Parts Diagram

  • Title

1

Cub Cadet 731-3081

Plaque, Logo w/Studs
(Superseded to 731-3081A)

$

$

Not available

2

Cub Cadet 726-3040

Nut, Push-on Speed

$3.57

$

In Stock, only 2 left!

0

3

Cub Cadet 16594A

Cover Assy, Grass Catcher

Note: (Includes Ref No. 4, 5, 6, 9 [Qty 9], 10, 11 [Qty 18], 12 [Qty 2], 13 [Qty

$

$

Not available

4

Order Grass Catcher Cover Assy 16594A

$

$

Not available

5

Cub Cadet 16596

Bracket Assy, Hinge

Variations

Cub Cadet 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$96.37

$

Usually ships in 5-10 days

0

$

$

6

Cub Cadet 16847

Screen Assy

Note: (Includes Ref No. 7 [Qty 4] & 8 [Qty 4])

$

$

Not available

7

Cub Cadet 728-0123

Rivet, Pop
(Superseded to 928-0123)

$4.02

$

Usually ships in 5-10 days

0

8

Cub Cadet 736-0400

Washer, Flat, .218 X .62 X .063
(Superseded to 936-0400)

$

$

Not available

9

Cub Cadet 710-1005

Screw, Hex Wash. Hd. Tapp, 1/4 X .50 Lg
(Superseded to 710-0599)

$3.52

$

In Stock, Qty 20+

0

10

Cub Cadet 723-0412

Seal, Tube, 7.1 ID

$30.44

$

Usually ships in 5-10 days

0

11

Cub Cadet 726-0258

Twist Fastener, Zip

$3.41

$

Usually ships in 5-10 days

0

12

Cub Cadet 731-0824

Plate, Plastic, 1/8 Thk X 5.62 Sq

$

$

Not available

13

Cub Cadet 726-0244

Nut, U-Type Speed
(Superseded to 712-0147)

$5.53

$

Usually ships in 5-10 days

0

14

Cub Cadet 710-0351

Screw, Truss Mach., #10 X .50 Lg

$3.60

$

In Stock, Qty 14

0

15

Cub Cadet 738-0380

Screw, Shld
(Superseded to 738-0380)

$6.70

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0253

Washer, Bell, .505 X 1.0 X .075 Thk
(Superseded to 936-0253)

$3.27

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0169

Washer, Lock, 3/8
(Superseded to 936-0169)

$3.04

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$3.52

$

In Stock, Qty 8

0

19

Cub Cadet 16588

Tube Assy, Catcher Support
(Superseded to 16592-0637)

$157.23

$

Usually ships in 5-10 days

0
