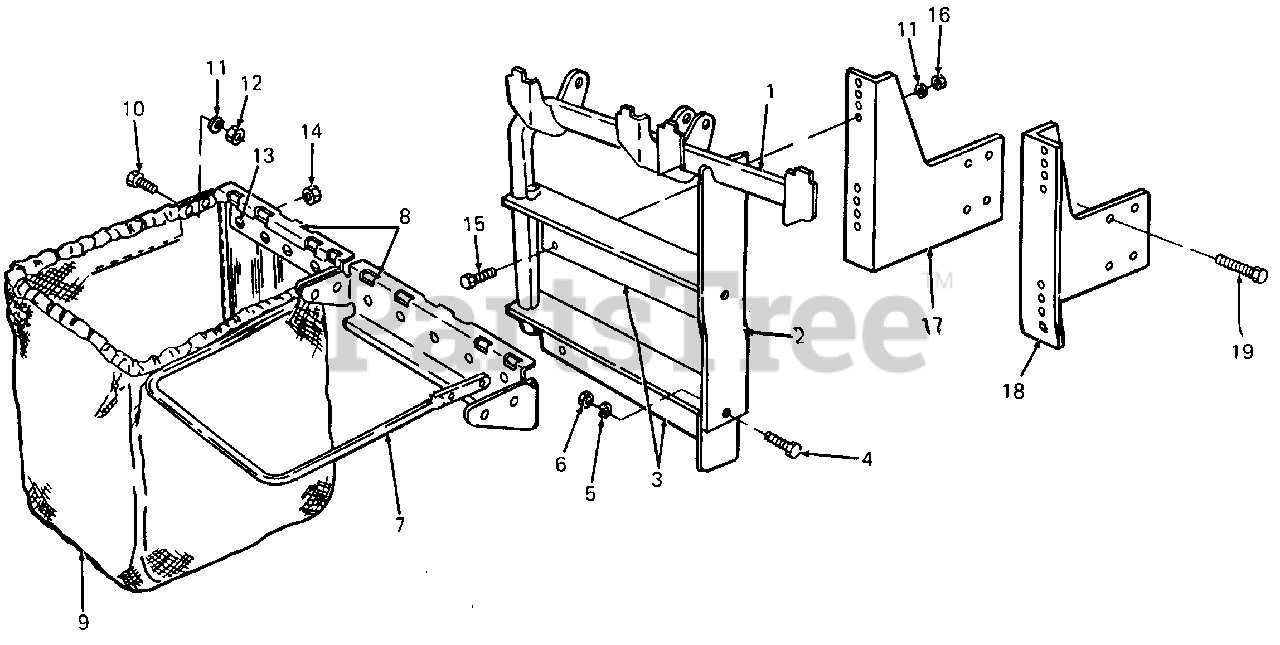

311 (190-311-100) - Cub Cadet Twin Rear Bagger Bag, Frame & Support Parts Diagram

Twin Rear Bagger

Bag, Frame & Support Parts Diagram

  • Title

1

Cub Cadet 16588

Tube Assy, Catcher Support
(Superseded to 16592-0637)

$205.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 16593

Bracket, Support
(Superseded to 783-0601-0637)

$37.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 16587

Bracket, Support Tube Mounting
(Superseded to 16587D-0637)

$87.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0118

Screw, Hex, 5/16-18 X .75 Lg
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 749-0701

Frame, Catcher Bag
(Superseded to 749-0701A-0637)

Variations

Cub Cadet 749-0701-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 16591

Bracket, Bag Frame Hanger
(Superseded to 16591A-0637)

Variations

Cub Cadet 16591-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 764-0221

Bag, Grass Catcher
(Superseded to 964-0221)

$77.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0412

Screw, Hex, 1/4-28 X .75 Lg

$5.99

$

In Stock, Qty 9

0

11

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

12

Cub Cadet 712-0314

Nut, Hex, 1/4-28

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0192

Screw, Truss Mach, #10-24 X .38 Lg

$3.99

$

In Stock, Qty 12

0

14

Cub Cadet 712-0272

Nut, Hex Sems, #10-24

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 710-0751

Screw, Hex, 1/4-20 X .62 Lg GR 5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR 5

$4.99

$

In Stock, Qty 11

0

17

Cub Cadet 703-1400

Bracket, LH Bagger Support

$

$

Not available

18

Cub Cadet 703-1401

Bracket, RH Bagger Support

$

$

Not available

19

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0
