311 (86017) - Snapper String Trimmer 311 Bump Head And Accessories Parts Diagram

String Trimmer

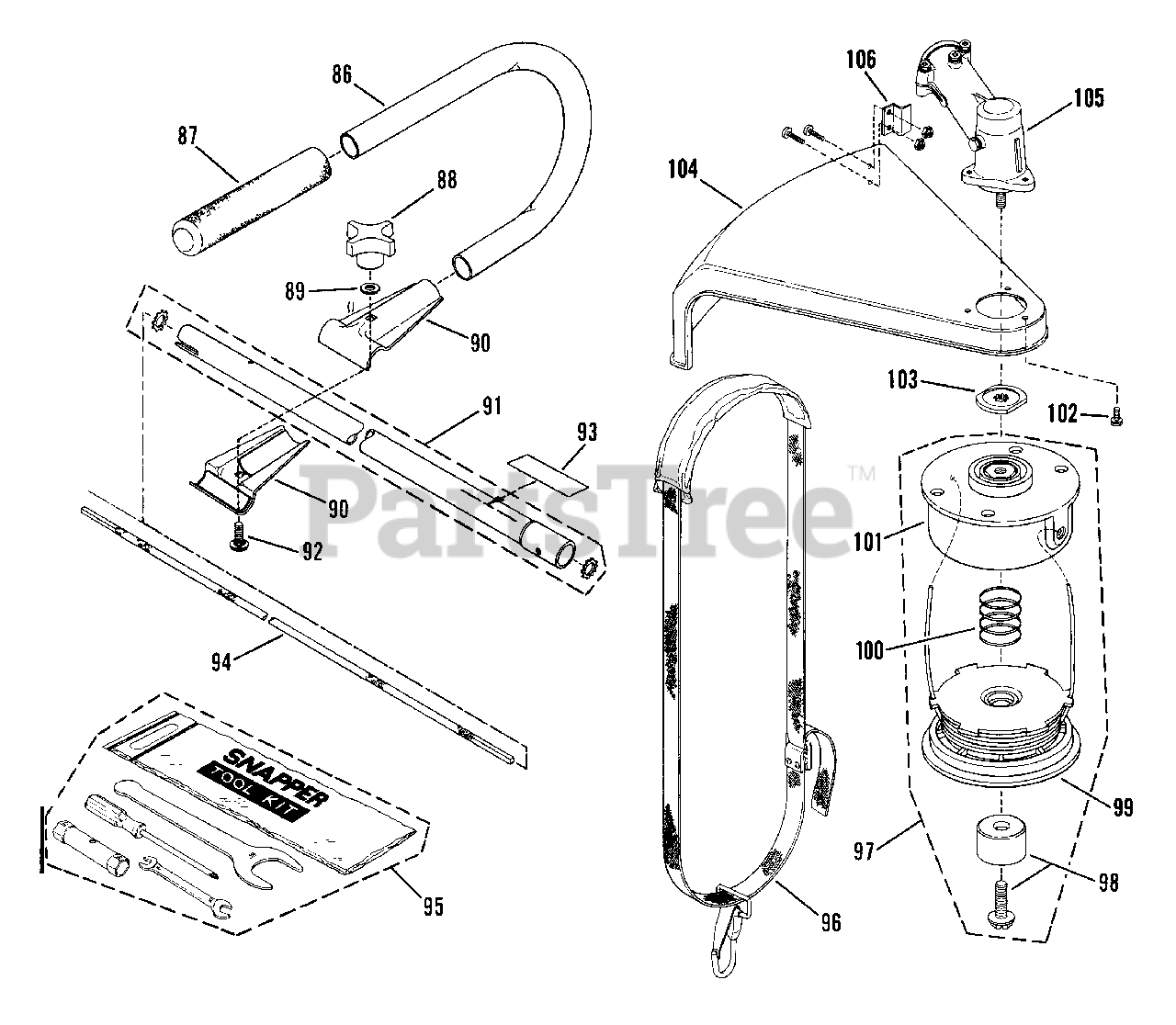

311 Bump Head And Accessories Parts Diagram

  • Title

86

Snapper 7036137

HANDLE, "J"

$

$

Currently unavailable

87

Snapper 7015070

GRIP, "J" Handle

$

$

Currently unavailable

88

Snapper 7015087

KNOB

$

$

Currently unavailable

89

Snapper 7090188

WASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

90

Snapper 7051554

CLAMP, Half

$

$

Currently unavailable

91

Snapper 57389

ASSEMBLY, Liner & Tubing

$

$

Currently unavailable

92

Snapper 7090861

SCREW, 5/16C x 1-3/4"

$

$

Not available

93

Snapper 7015169

DECAL-WARNING

$

$

Currently unavailable

94

Snapper 7015090

SHAFT, Flex (54.375" x .245", .268" Square Ends x 1")

$

$

Not available

95

Snapper 7043980

TOOL KIT
(Superseded to 7043980YP)

Note: Was 43068

$20.99

$

Usually ships in 2-12 days

0

96

Snapper 7015557

SHOULDER STRAP

Note: Was 43982

$

$

Not available

97

Snapper 68037

BUMP HEAD ASSM'Y

Note: (Incl. items 98, 99,100, & 101)

$

$

Currently unavailable

98

Snapper 68039

KNOB & BOLT

$

$

Currently unavailable

99

Snapper 68036

SPOOL & LINE

$

$

Currently unavailable

100

Snapper 7042074

SPRING
(Superseded to 7042074YP)

$3.99

$

Usually ships in 2-12 days

0

101

Snapper 68021

HUB

$

$

Currently unavailable

102

Snapper 7043954

BOLT, Hex Head

$

$

Currently unavailable

103

Snapper 7015683

SPACER

Note: Was 43007

$

$

Currently unavailable

104

Snapper 7016007

SHIELD

$14.99

$

In Stock, only 1 left!

0

105

Snapper 7043005

GEAR HEAD

$

$

Not available

106

Snapper 68010

LINE CUTTER KIT

Note: (Incl. Hrdw.)

$

$

Currently unavailable
