3112 H (990500) - Simplicity Sovereign Garden Tractor, 12hp HYDROSTATIC CONTROL GROUP Parts Diagram

Sovereign Garden Tractor, 12hp

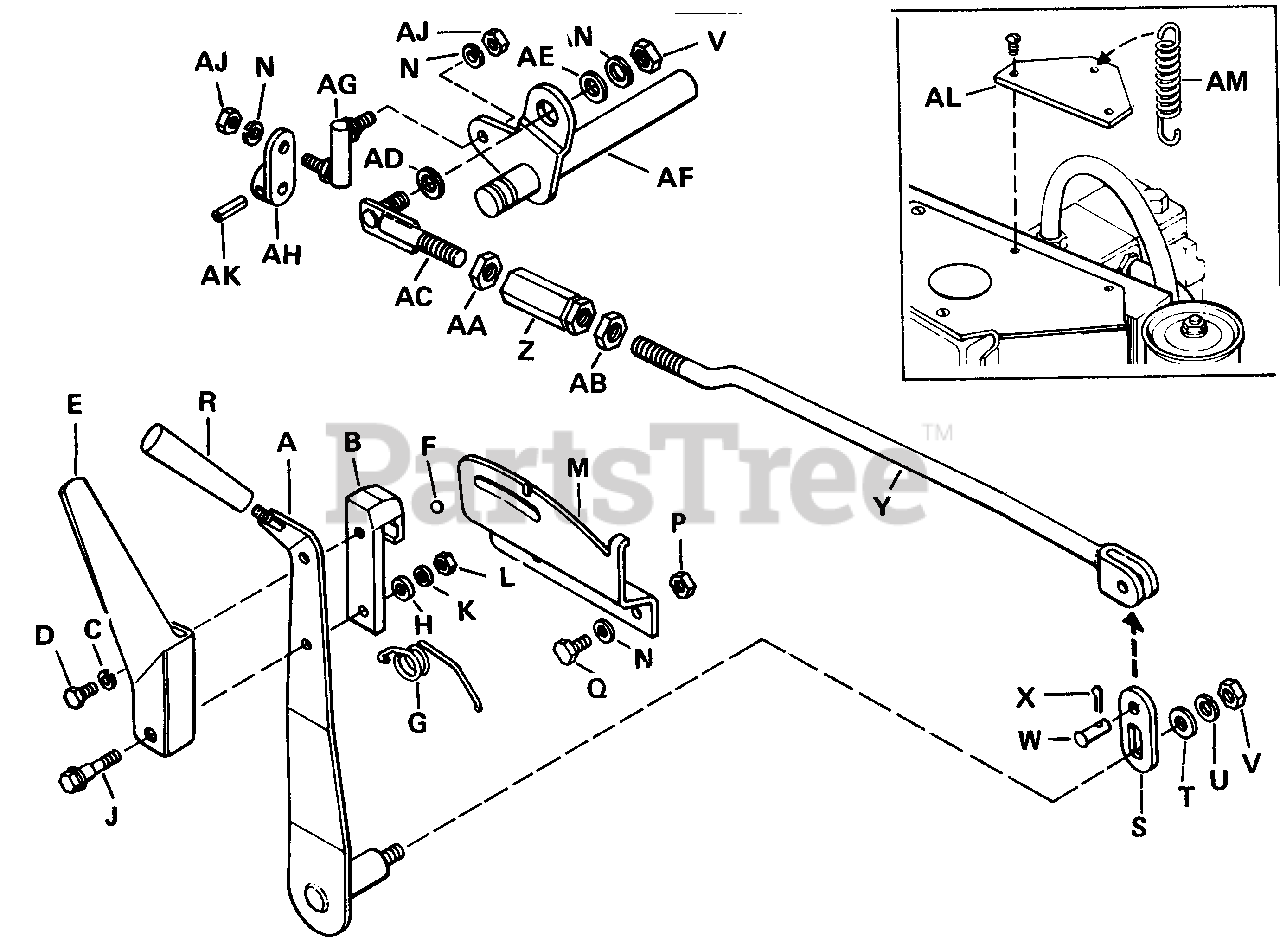

HYDROSTATIC CONTROL GROUP Parts Diagram

  • Title

A

Simplicity 166036

Lever Assembly

$

$

Not available

B

Simplicity 166038

Stop Clamp

$

$

Not available

C

Simplicity 2720003

Lock Washer, 1/4" Std.

$

$

Not available

D

Simplicity 2705002

Hex Capscrew, 1/4"-20 N.C. x 1/2"

$

$

Not available

E

Simplicity 166050

Handle

$

$

Not available

F

Simplicity 2166178SM

Shift Ball Handle, 5/16"

$4.49

$

In Stock, only 2 left!

0

G

Simplicity 2166047SM

Spring

$

$

Not available

H

Simplicity 166063

Spacer

$

$

Not available

J

Simplicity 2166051SM

Shoulder Bolt

$

$

Not available

K

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

L

Simplicity 2717513

Full Hex Lock Nut, 1/4"-20

$

$

Not available

M

Simplicity 166087

Support Plate

$

$

Not available

N

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

P

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

Q

Simplicity 2705012

Hex Capscrew, 5/16"-18 N.C.x 5/8"

$

$

Not available

R

Simplicity 2164180

Handle

$

$

Not available

S

Simplicity 164123

Link,

$

$

Not available

T

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

U

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

V

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

W

Simplicity 1708298SM

Pin

$

$

Not available

X

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

Y

Simplicity 166083

Rod Assy., Control, Front

$

$

Not available

Z

Simplicity 166088

Turn Buckle

$

$

Not available

AA

Simplicity 718046

Full Hex Nut, 7/16"-14 L.H.

$

$

Not available

AB

Simplicity 2717022

Full Hex Nut, 7/16"-14 R.H.

$

$

Not available

AC

Simplicity 166089

Rod Assy., Rear Control

$

$

Not available

AD

Simplicity 166078

Spacer

$

$

Not available

AE

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AF

Simplicity 166095

Shaft Assy., Control

$

$

Not available

AG

Simplicity 2166079SM

Ball Joint, Double End

$

$

Not available

AH

Simplicity 166092

Link Assy., Control

$

$

Not available

AJ

Simplicity 2717002

Full Hex Nut, 5/16"-24

$

$

Not available

AK

Simplicity 2723008

Roll Pin, 1/4" x 1-1/4"

$

$

Not available

AL

Simplicity 166160

Spring Clip

$

$

Not available

AM

Simplicity 2107135SM

Spring

$34.99

$

Usually ships in 2-12 days

0
