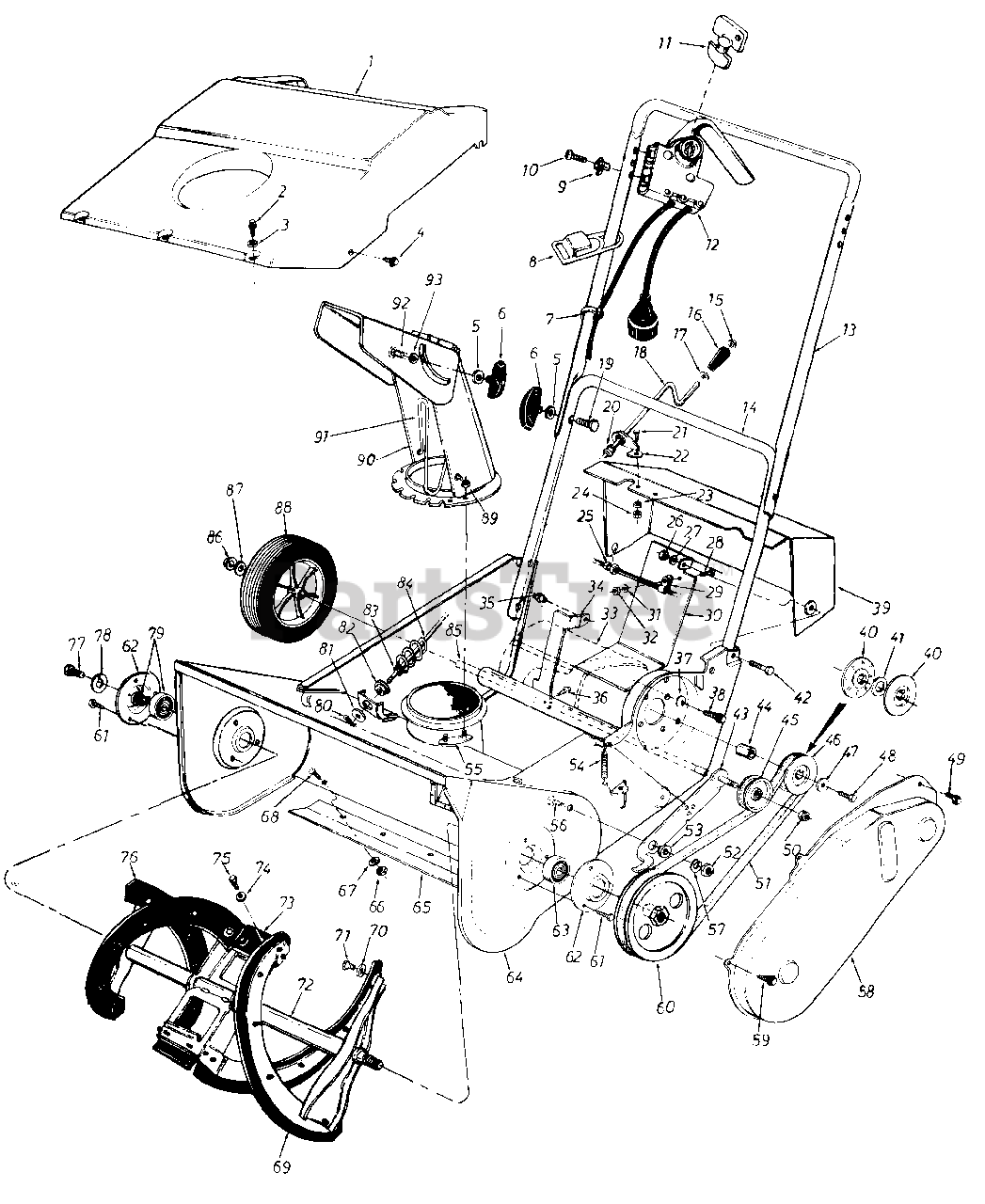

31174C - MTD Snow Thrower (1986) Electric Parts Diagram

Snow Thrower

Electric Parts Diagram

  • Title

1

MTD 731-0724

21" Snow Thrower Shroud

$

$

Not available

2

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

3

MTD 736-0370

Spr.-Wash. .206" I.D. x .448" O.D.

$

$

Not available

4

MTD 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

5

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

6

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

7

MTD 726-0223

Cable Tie

$

$

Not available

8

MTD 725-0899

Cord Restraint

$

$

Not available

9

MTD 725-1112

Insulating Spacer

$

$

Currently unavailable

10

MTD 710-0943

Fl-Countersunk Scr. #10-24 x 1.5" Lg.

$

$

Not available

11

MTD 725-1121

Key

$

$

Not available

12

MTD 725-1120

Electric Control w/Key

$

$

Not available

13

MTD 749-0694

Upper Handle

$

$

Currently unavailable

14

MTD 749-0691

Lower Handle

$

$

Not available

15

MTD 726-0100

Push Nut for 3/8" Rod

$3.99

$

In Stock, Qty 8

0

16

MTD 720-0171

Knob
(Superseded to 920-0171)

$14.99

$

In Stock, only 1 left!

0

17

MTD 736-0140

Fl-Wash. .385 I.D. x .62" O.D.

$6.99

$

In Stock, Qty 9

0

18

MTD 784-5179

Chute Crank Ass'y. L.H.

$

$

Not available

19

MTD 710-0405

Curved Hd. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

20

MTD 735-0218

Chute Crank Grommet
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

21

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

22

MTD 784-5178

Upper Chute Crank Brkt.
(Superseded to 784-5178A)

$

$

Not available

23

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

24

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

25

MTD 725-0908

Cord Restraint

$

$

Not available

26

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0473

Truss Mach. Scr. #10-24 x .50" Lg.

$3.99

$

In Stock, only 1 left!

0

29

MTD 725-1089

Cord Restraint

$

$

Currently unavailable

30

MTD 784-5325

21" Blower Housing Ass'y.

$

$

Not available

31

MTD 736-0147

Ext. L-Wash. #10
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

32

MTD 712-0121

Hex Nut #10-24 Thd.

$3.99

$

In Stock, Qty 20+

0

33

MTD 725-1068

Electric Motor 120V

$

$

Not available

34

MTD 784-5187

Motor Support Brkt.

$

$

Currently unavailable

35

MTD 731-0786

Motor Shroud w/Hdwe.

$

$

Currently unavailable

36

MTD 710-0892

Hex L-Wash. Hd. AB-Tap 1/4 " x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

37

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)

$

$

Not available

39

MTD 784-5184

Dash Panel

$

$

Currently unavailable

40

MTD 756-0416

3/8-V-Pulley Half .625" I.D. x 2.25
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

41

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

42

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

43

MTD 784-5180

Idler Brake Brkt. Ass'y.
(Superseded to 753-05156)

$

$

Not available

44

MTD 748-0192

Spacer .635" I.D. x .890" O.D. x .80" Lg.

$7.49

$

Usually ships in 3-6 days

0

45

MTD 756-0313

Fl-Idler w/Flanges 2.12" O.D.

$24.99

$

In Stock, Qty 8

0

46

MTD 756-0416

3/8-V-Pulley Half .625" I.D. x 2.25
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

47

MTD 736-0242

Bell-Wash. .345" I.D. x .88" 0. D.

$3.99

$

In Stock, Qty 20+

0

48

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 16

0

49

MTD 710-0892

Hex L-Wash. Hd. AB-Tap 1/4 " x .62" Lg .
(Superseded to 910-0892)

$

$

Not available

50

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

51

MTD 754-0285

V-Belt 1/2" X 34.0" Lg.
(Superseded to 954-0285)

$

$

Not available

52

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

53

MTD 748-0234

Shld. Spacer .500" Dia. x .27" Lg.

$4.49

$

In Stock, Qty 10

0

54

MTD 732-0474

Extension Spring

$

$

Not available

55

MTD 05783

Chute Flange Keeper Ass'y.

$

$

Not available

56

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

57

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

58

MTD 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

MTD 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$53.99

$

In Stock, only 1 left!

0

MTD 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$53.99

$

In Stock, only 1 left!

0

MTD 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

MTD 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$53.99

$

In Stock, only 1 left!

0

MTD 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$53.99

$

In Stock, only 1 left!

0

MTD 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$43.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$43.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$43.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$53.99

$

In Stock, only 1 left!

0

59

MTD 710-0352

Hex B-Tap Scr. 1/4 X .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

60

MTD 756-0476

Flat Pulley 5.06" O.D. 1/2-20 L.H.

$

$

Not available

61

MTD 710-0352

Hex B-Tap Scr. 1/4 X .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

62

MTD 784-5174

Brg. Cup
(Superseded to 784-5174-0637)

Variations

MTD 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 741-0124

Ball Bearing .669" I.D. x 1.574" O.D.
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

64

MTD 784-5325

21" Blower Housing Ass'y.

$

$

Not available

65

MTD 731-0778

Shave Plate
(Superseded to 731-1033)

$44.99

$

In Stock, Qty 18

0

66

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

67

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 14

0

68

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

69

MTD 731-0781

Rubber Spiral 8.62" Dia. L.H.
(Superseded to 931-0780A)

$25.99

$

In Stock, Qty 14

0

70

MTD 736-0142

Fl-Wash. .281" I.D. x .50" 0. D.

$4.49

$

Usually ships in 3-6 days

0

71

MTD 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg. Spec.

$3.99

$

In Stock, Qty 20+

0

72

MTD 784-5335

Auger Ass'y. 21 " 8.62" Dia.
(Superseded to 984-04027A)

$182.99

$

In Stock, Qty 11

0

73

MTD 731-0782

Rubber Paddle
(Superseded to 931-0782A)

$6.49

$

In Stock, Qty 10

0

74

MTD 736-0400

Fl-Wash. .218" I.D. x .62" O.D.

$4.99

$

In Stock, Qty 16

0

75

MTD 710-0962

Hex Wash. B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

76

MTD 731-0780

Rubber Spiral 8.62" Dia. R.H.
(Superseded to 931-0780A)

$25.99

$

In Stock, Qty 14

0

77

MTD 710-0875

Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

78

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

79

MTD 753-0374

Kit Bearing and Collar

$

$

Not available

80

MTD 714-0507

Cot-Pin 3/32 Dia. x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

81

MTD 736-0234

Fl-Wash. .385" I.D. x 1.50" O.D.

$5.99

$

Usually ships in 3-6 days

0

82

MTD 741-0403

Hex Bushing .385" I.D.

$

$

Not available

83

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$6.99

$

In Stock, Qty 9

0

84

MTD 784-5179

Chute Crank Ass'y. L.H.

$

$

Not available

85

MTD 749-0605

Wheel Axle Tubing

$

$

Not available

86

MTD 726-0221

Push Cap 1/2" Dia.

$5.99

$

In Stock, only 2 left!

0

87

MTD 736-0108

Fl-Wash. .510" I.D. x .75" O.D.

$6.49

$

Usually ships in 3-6 days

0

88

MTD 734-0831

Plastic Wheel Ass'y. 6 x 1.50"

$

$

Not available

89

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

90

MTD 784-5332

5.0" Dia. Chute Ass'y.

$

$

Currently unavailable

91

MTD 732-0484

Chute Ass'y. Guard

$

$

Currently unavailable

92

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

93

MTD 736-0278

Fl-Wash. .328 I.D. x .68" O D

$5.49

$

Usually ships in 3-6 days

0
