312 (190-312-100) - Cub Cadet Triple Rear Bagger Bag, Frame & Support Parts Diagram

Triple Rear Bagger

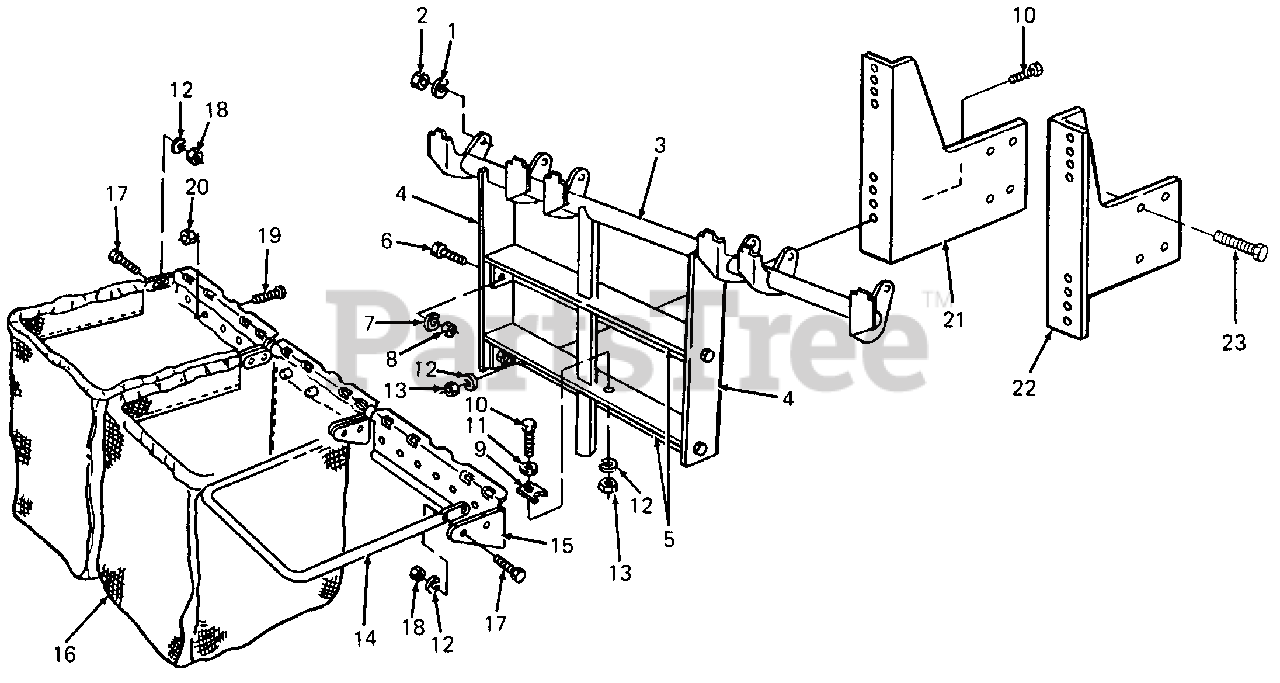

Bag, Frame & Support Parts Diagram

  • Title
1

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$3.99

$

In Stock, only 2 left!

0

3

Cub Cadet 749-0750

Tube Assy, Catcher Support
(Superseded to 689-00002-0637)

Variations

Cub Cadet 749-0750-0637

SUPPORT ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 16593

Bracket, Catcher Latch & Support
(Superseded to 783-0601-0637)

$32.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 17200

Bracket, Catcher Support Tube Mounting

$

$

Not available

6

Cub Cadet 710-0118

Screw, Hex, 5/16-18 X .75 Lg
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 17247

Bracket, Support Tubing Adapter
(Superseded to 17247-0637)

Variations

Cub Cadet 17247-0637

BRACKET.-TUBING ADAPT - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0751

Screw, Hex, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 14

0

13

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 3 left!

0

14

Cub Cadet 749-0745

Frame, Catcher Bag
(Superseded to 749-0745A-0637)

$56.99

$

In Stock, only 1 left!

0

15

Cub Cadet 17201

Bracket, Bag Frame Hanger
(Superseded to 17201A-0637)

Variations

Cub Cadet 17201-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 764-0251

Bag, Grass Catcher
(Superseded to 964-0251)

$83.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0412

Screw, Hex, 1/4-28 X .75 Lg

$5.49

$

In Stock, Qty 10

0

18

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0192

Screw, Truss Mach., #10-24 X .38 Lg

$3.49

$

In Stock, Qty 11

0

20

Cub Cadet 712-0272

Nut, Hex Sems, #10-24

$3.99

$

In Stock, Qty 7

0

21

Cub Cadet 703-1400

Bracket, LH Bagger Support

$

$

Not available

22

Cub Cadet 703-1401

Bracket, RH Bagger Support

$

$

Not available

23

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 20+

0
