312 (312112) - Cub Cadet Walk-Behind Mower (1982) Front/Rear Wheel, Throttle Control and Handle Assemblies Parts Diagram

Walk-Behind Mower

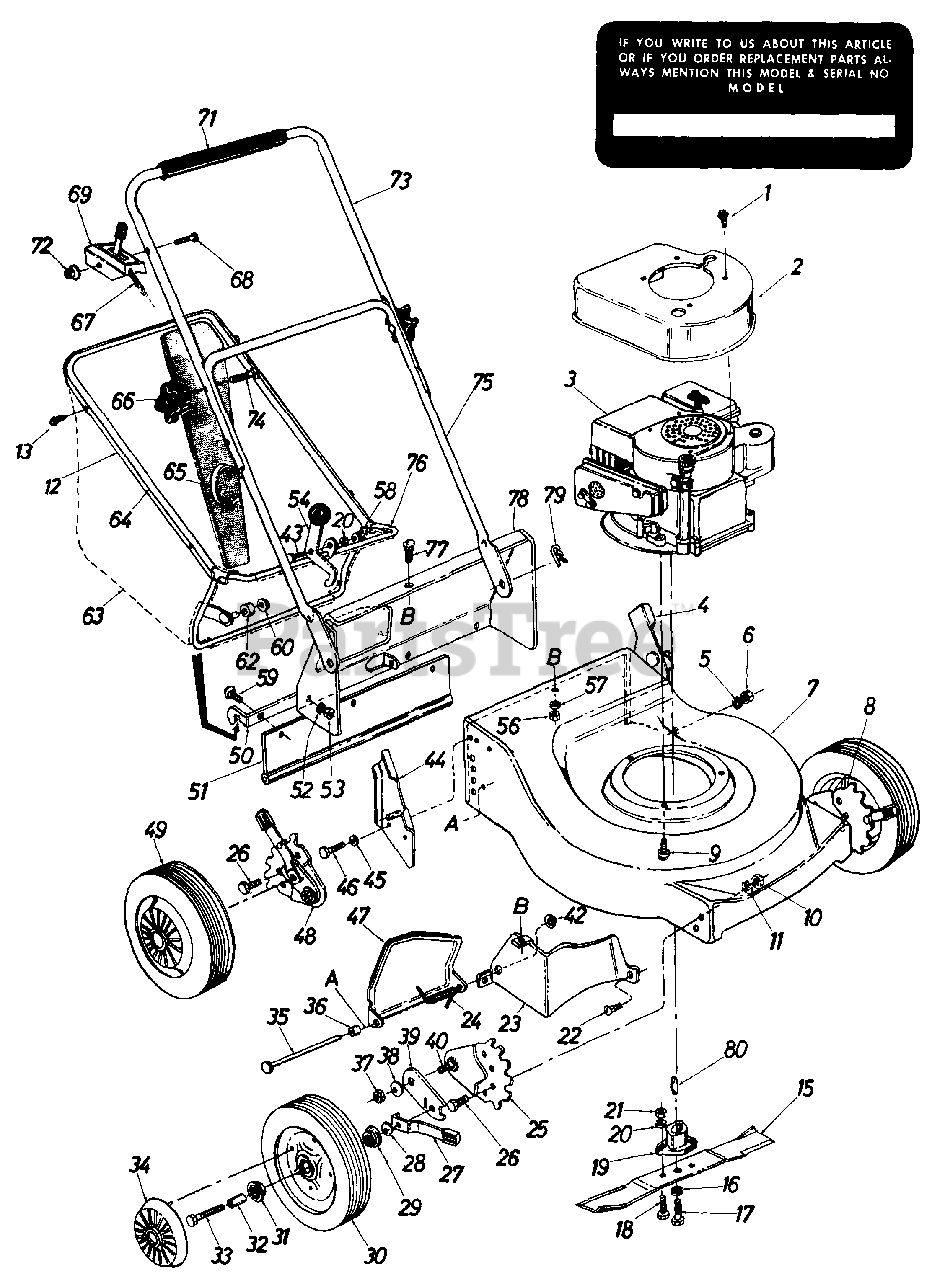

Front/Rear Wheel, Throttle Control and Handle Assemblies Parts Diagram

  • Title

1

Cub Cadet 710-0227

Hex Wash. Hd. Self-Tap Scr. #8 x .38" Lg.

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 10877

Engine Shroud - Metal

Note: Color Code - 499

$

$

Currently unavailable

3

Engine

$

$

Not available

4

Cub Cadet 12297

Handle Mount Brkt. - L.H.

Note: Color Code - 499

$

$

Not available

5

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

6

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 14501

20" Deck Ass'y.

Note: Color Code - 499; Code N

$

$

Currently unavailable

8

Cub Cadet 12321

Height Adjuster Ass'y. Comp. - L.H.

$

$

Not available

9

Cub Cadet 710-0654

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0654A)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 11

0

12

Cub Cadet 731-0606

Grass Catcher Top Cover

$

$

Not available

13

Cub Cadet 710-0224

Hex AB-Tap Scr. #10 x 1/2 Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 10

0

15

Cub Cadet 742-0123

20" Blade

$

$

Not available

16

Cub Cadet 736-0217

L-Wash. 3/8" I.D. Heavy Duty

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-0888)

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 10769

Blade Adapter Kit

$

$

Not available

20

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

22

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$5.49

$

In Stock, Qty 15

0

23

Cub Cadet 14586

Rear Baffle

Note: Color Code - 499

$

$

Currently unavailable

24

Cub Cadet 732-0346

Torsion Spring

$

$

Not available

25

Cub Cadet 12323

Index Plate

$

$

Not available

26

Cub Cadet 710-0209

Hex Sems Bolt 3/8-16 x .62" Lg.

$

$

Not available

27

Cub Cadet 732-0394

Spring Lever With Knob

$

$

Not available

28

Cub Cadet 736-0105

Belleville Wash.

$4.99

$

In Stock, Qty 6

0

29

Cub Cadet 741-0484

Ball Bearing
(Superseded to 941-0484)

$7.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 734-0845

Front Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

31

Cub Cadet 741-0267

Ball Bearing

$

$

Not available

32

Cub Cadet 750-0434

Spacer

$7.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$4.99

$

In Stock, Qty 19

0

34

UNKNOWN

$

$

Not available

35

Cub Cadet 738-0386

Hinge Pin .25" Dia. x 7.88" Lg.

$

$

Not available

36

Cub Cadet 750-0218

Spacer .262 I.D. x .31 O.D. x .58" Lg.
(Superseded to 950-0218)

$

$

Not available

37

Cub Cadet 712-0375

Hex Cent. L-Nut

$4.99

$

In Stock, only 2 left!

0

38

Cub Cadet 736-0255

Belleville Wash.

$4.99

$

In Stock, only 1 left!

0

39

Cub Cadet 10619

Pivot Bar

$

$

Not available

40

Cub Cadet 738-0269

Shoulder Bolt

$

$

Not available

42

Cub Cadet 726-0106

Cap Speed Nut 1/4" Rod

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 738-0140

Shld. Bolt .437" Dia. x .180" Lg.

$5.99

$

In Stock, Qty 8

0

44

Cub Cadet 12296

Handle Mount Brkt. - R.H.
(Superseded to 12296B-0637)

$

$

Not available

45

Cub Cadet 736-0142

Fl-Wash. .281" I.D. x .50" O.D. x .063

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 710-0776

Hex Wash. Hd. Self-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 15

0

47

Cub Cadet 13407

Chute Door

$

$

Not available

48

Cub Cadet 12322

Height Adjuster Ass'y. Comp. - R.H.

$

$

Not available

49

Cub Cadet 734-0845

Rear Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

50

Cub Cadet 14012

Grass Catcher Hitch Brkt.

$

$

Not available

51

Cub Cadet 731-0432

Rear Protective Flap Ass'y.
(Superseded to 731-0665)

$

$

Not available

52

Cub Cadet 736-0211

Fl-Wash. .285 I.D. x 1.25" O.D.

$7.49

$

In Stock, only 2 left!

0

53

Cub Cadet 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 13

0

54

Cub Cadet 13435

Cam Lever Ass'y.

$

$

Not available

56

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

58

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

59

Cub Cadet 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 9

0

60

Cub Cadet 726-0100

Cap Speed Nut 3/8" Rod

$4.99

$

In Stock, only 1 left!

0

62

Cub Cadet 731-0430

Plastic Roller

$

$

Not available

63

Cub Cadet 764-0171

Grass Bag
(Superseded to 964-0171B)

$

$

Not available

64

Cub Cadet 749-0524

Grass Catcher Upper Frame

$

$

Not available

65

Cub Cadet 726-0188

Cable Tie

$

$

Not available

66

Cub Cadet 720-3012

Hand Knob

$

$

Not available

67

Cub Cadet 746-0230

Conduit and Wire

$

$

Not available

68

Cub Cadet 710-0606

Hex Bolt 1/4-20 x 1.50" Lg.

$5.99

$

In Stock, only 2 left!

0

69

Cub Cadet 746-0204

Throttle Control Ass'y. Comp.
(Superseded to 946-0802A)

$64.99

$

In Stock, only 4 left!

0

?70

Cub Cadet 731-0344

Plastic Label

$

$

Not available

71

Cub Cadet 731-3026

Grip

$

$

Currently unavailable

72

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 749-0379

Upper Handle (Chrome)

$

$

Currently unavailable

74

Cub Cadet 710-0405

Curved Hd. Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.99

$

In Stock, Qty 10

0

75

Cub Cadet 749-0505

Lower Handle (Chrome)
(Superseded to 749-0907B)

$53.99

$

In Stock, only 2 left!

0

76

Cub Cadet 13924

Lower Grass Catcher Frame Ass'y.

$

$

Not available

77

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$5.49

$

In Stock, Qty 15

0

78

Cub Cadet 14585

Rear Deck Section

Note: Color Code - 499; Code N

$

$

Currently unavailable

79

Cub Cadet 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 10

0

80

Cub Cadet 714-0365

#6 Hi-Pro Key 5/32" x .62" Dia.

$5.49

$

Usually ships in 3-6 days

0
