3120 - Husqvarna Chainsaw (SN: 19981000001 - 20000799999) CARBURETOR DETAILS Parts Diagram

Chainsaw

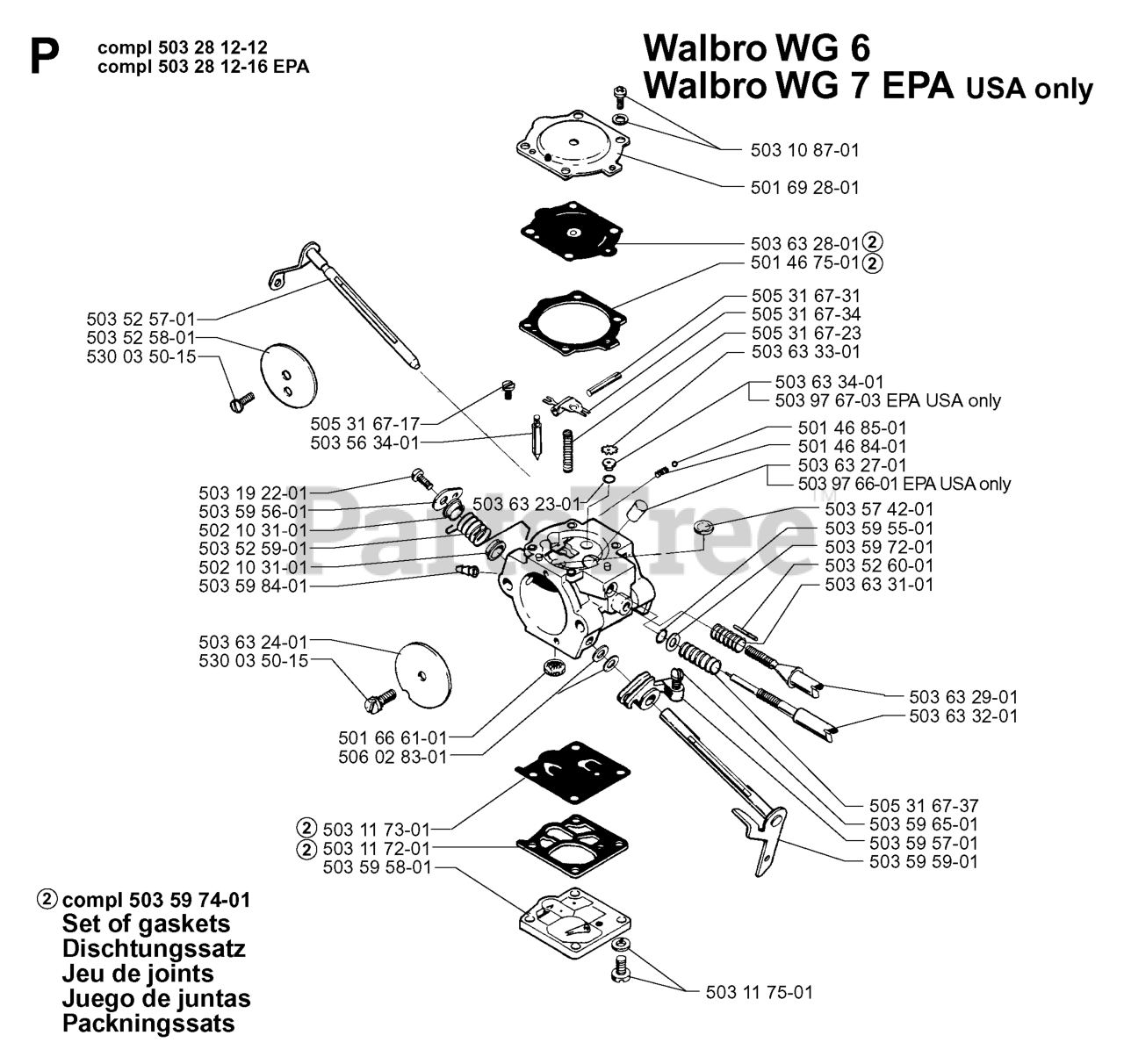

CARBURETOR DETAILS Parts Diagram

  • Title

506 02 83-01

Husqvarna 506028301

WASHER

$11.99

$

Usually ships in 3-10 days

0

503 63 31-01

Husqvarna 503633101

SPRING-MIX NEEDLE

$14.99

$

Usually ships in 3-10 days

0

503 59 55-01

Husqvarna 503595501

O-RING

$14.99

$

Usually ships in 3-10 days

0

505 31 67-37

Husqvarna 505316737

PRESSURE SPRING

$17.99

$

In Stock, only 2 left!

0

503 52 58-01

Husqvarna 503525801

CHOKE SHUTTER

$

$

Not available

505 31 67-17

Husqvarna 505316717

SCREW
(Superseded to 502105501)

$

$

Not available

503 63 23-01

Husqvarna 503632301

O-RING
(Superseded to 531002421)

Note: 1

$

$

Not available

503 97 66-01

Husqvarna 503976601

JET

Note: EPA USA ONLY

$5.99

$

Usually ships in 3-10 days

0

503 52 59-01

Husqvarna 503525901

SPRING,THROTTLE RETURN

$

$

Not available

501 69 28-01

Husqvarna 501692801

COVER DIAPH

$7.49

$

Usually ships in 3-10 days

0

502 10 31-01

Husqvarna 502103101

BUSHING

$10.99

$

Usually ships in 3-10 days

0

503 59 65-01

Husqvarna 503596501

SCREW

$

$

Not available

505 31 67-34

Husqvarna 505316734

LEVER

$15.99

$

In Stock, Qty 7

0

503 56 34-01

Husqvarna 503563401

INLET NEEDLE
(Superseded to 505316550)

$22.99

$

Usually ships in 3-10 days

0

503 59 72-01

Husqvarna 503597201

Washer

$

$

Not available

503 59 84-01

Husqvarna 503598401

FUEL NIPPLE-CARB

$

$

Not available

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 20+

0

501 46 85-01

Husqvarna 501468501

BALL

$8.49

$

Usually ships in 3-10 days

0

503 11 75-01

Husqvarna 503117501

SCREW W/ WASHER

$8.49

$

Usually ships in 3-10 days

0

503 97 67-03

Husqvarna 503976703

Note: EPA USA ONLY

$

$

Currently unavailable

530 03 50-15

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

503 28 12-12

Husqvarna 503281212

CARBURETOR,WALBRO WG6
(Superseded to 503282001)

$239.99

$

Usually ships in 3-10 days

0

503 63 32-01

Husqvarna 503633201

HI-NEEDLE,CARB

$5.99

$

Usually ships in 3-10 days

0

503 28 12-16

Husqvarna 503281216

CARBURETOR WG7 EPA

Note: EPA

$395.99

$

Usually ships in 3-10 days

0

503 59 56-01

Husqvarna 503595601

LEVER

$

$

Not available

503 52 60-01

Husqvarna 503526001

ADJ NEEDLE-LO,CARB

$

$

Not available

503 57 42-01

Husqvarna 503574201

WELCH PLUG

$9.99

$

In Stock, only 2 left!

0

503 11 73-01

Husqvarna 503117301

DIAPHRAGM/PUMP
(Superseded to 503597402)

Note: 503 59 74-01 SET OF GASKETS

$26.99

$

Usually ships in 3-10 days

0

503 63 29-01

Husqvarna 503632901

ADJ SCREW-LO,CARB

$53.99

$

Usually ships in 3-10 days

0

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$3.49

$

In Stock, only 3 left!

0

505 31 67-23

Husqvarna 505316723

LEVER SPRING

$

$

Not available

503 11 72-01

Husqvarna 503117201

GASKET
(Superseded to 503597402)

Note: 503 59 74-01 SET OF GASKETS

$26.99

$

Usually ships in 3-10 days

0

503 59 59-01

Husqvarna 503595901

THROTTLE SHAFT

$

$

Not available

503 59 57-01

Husqvarna 503595701

LEVER

$5.99

$

Usually ships in 3-10 days

0

503 59 58-01

Husqvarna 503595801

COVER

$

$

Not available

503 63 27-01

Husqvarna 503632701

SEAT ASSY-NOZZLE
(Superseded to 503636601)

$

$

Not available

503 19 22-01

Husqvarna 503192201

SCREW

$

$

Not available

503 63 24-01

Husqvarna 503632401

SHUTTER-THROTTLE

$39.99

$

Usually ships in 3-10 days

0

503 63 33-01

Husqvarna 503633301

STAR WASHER

$

$

Not available

501 46 75-01

Husqvarna 501467501

GASKET
(Superseded to 503597402)

Note: 503 59 74-01 SET OF GASKETS

$26.99

$

Usually ships in 3-10 days

0

503 63 28-01

Husqvarna 503632801

METERING DIAPHRAGM GSKT
(Superseded to 503597402)

Note: 503 59 74-01 SET OF GASKETS

$26.99

$

Usually ships in 3-10 days

0

505 31 67-31

Husqvarna 505316731

PIN

$5.99

$

Usually ships in 3-10 days

0

503 63 34-01

Husqvarna 503633401

JET

$

$

Not available

503 52 57-01

Husqvarna 503525701

CHOKE SHAFT

$

$

Not available

501 46 84-01

Husqvarna 501468401

SPRING

$7.99

$

Usually ships in 3-10 days

0
