3120 - Husqvarna Chainsaw (SN: 20013500001 & Above) IGNITION SYSTEM Parts Diagram

Chainsaw

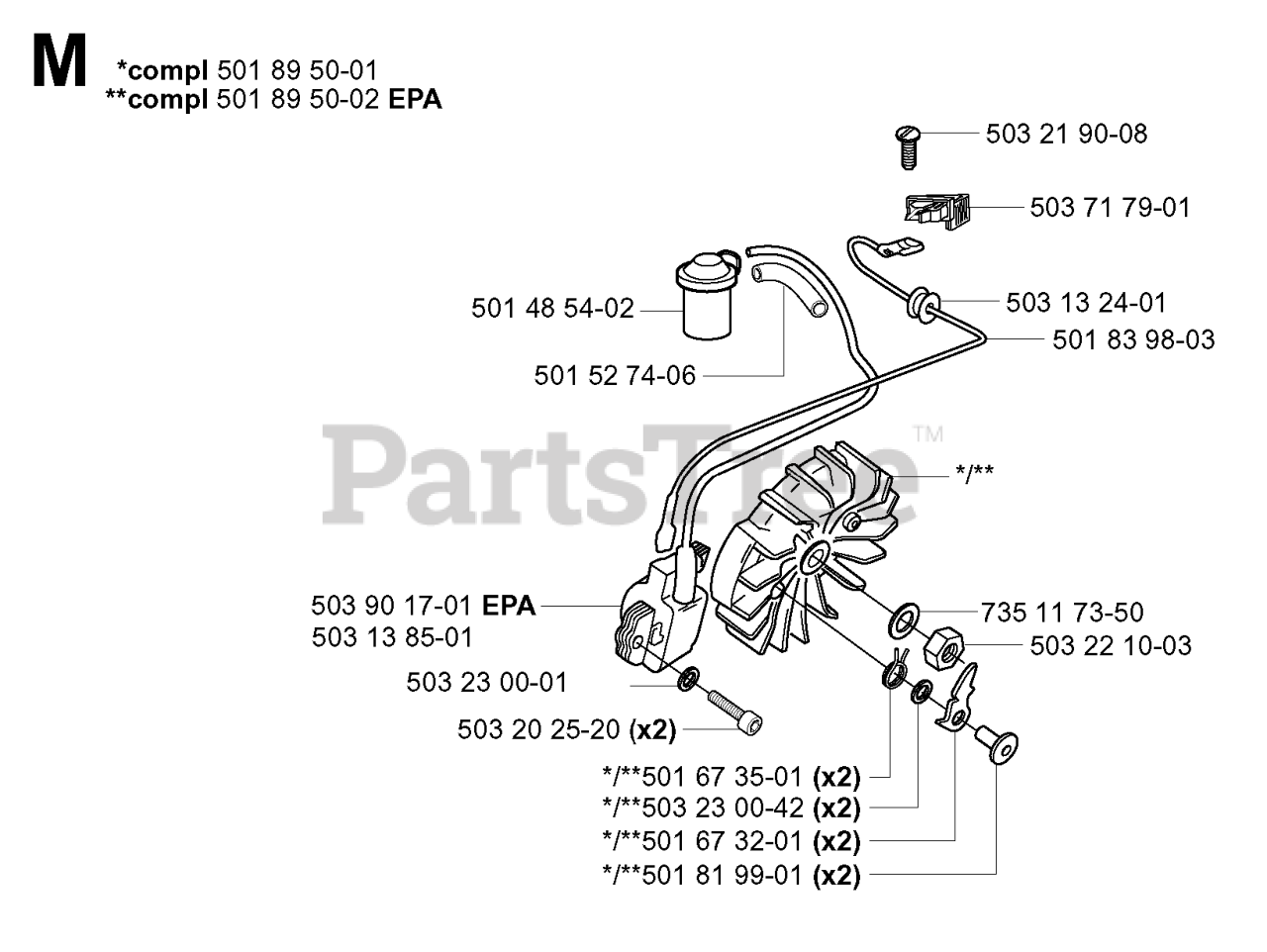

IGNITION SYSTEM Parts Diagram

  • Title

503 23 00-01

Husqvarna 503230001

WASHER 4.2X9

$4.99

$

In Stock, Qty 10

0

503 13 85-01

Husqvarna 503138501

ELECTRONIC BOX
(Superseded to 595312601)

$203.99

$

Usually ships in 3-10 days

0

503 20 25-20

Husqvarna 503202520

SCREW

$4.99

$

In Stock, only 4 left!

0

503 71 79-01

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

Usually ships in 3-10 days

0

501 67 35-01

Husqvarna 501673501

SPRING

$3.49

$

In Stock, Qty 19

0

501 89 50-01

Husqvarna 501895001

RP FLYWHEEL CPL
(Superseded to 522892001)

$170.99

$

Usually ships in 3-10 days

0

501 52 74-06

Husqvarna 501527406

HOSE

$8.49

$

Usually ships in 3-10 days

0

503 22 10-03

Husqvarna 503221003

NUT M10X1

$5.49

$

In Stock, only 2 left!

0

501 83 98-03

Husqvarna 501839803

LEAD

$12.99

$

In Stock, Qty 11

0

501 89 50-02

Husqvarna 501895002

FLYWHEEL
(Superseded to 522892002)

Note: EPA

$359.99

$

Usually ships in 3-10 days

0

503 13 24-01

Husqvarna 503132401

GROMMET

$3.49

$

Usually ships in 3-10 days

0

501 67 32-01

Husqvarna 501673201

PAWL

$7.99

$

In Stock, Qty 12

0

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$16.99

$

In Stock, only 3 left!

0

735 11 73-50

Husqvarna 735117350

SPRING WASHER 10.5X18

$3.49

$

In Stock, only 2 left!

0

503 21 90-08

Husqvarna 503219008

SCREW
(Superseded to 503205508)

$

$

Not available

501 81 99-01

Husqvarna 501819901

SCREW M5X14

$5.49

$

In Stock, only 2 left!

0

503 90 17-01

Husqvarna 503901701

IGNITION MODULE
(Superseded to 587329402)

Note: EPA

$147.99

$

In Stock, only 2 left!

0

503 23 00-42

Husqvarna 503230042

WASHER

$4.99

$

In Stock, only 2 left!

0
