3120 XP - Husqvarna Chainsaw IGNITION SYSTEM Parts Diagram

Chainsaw

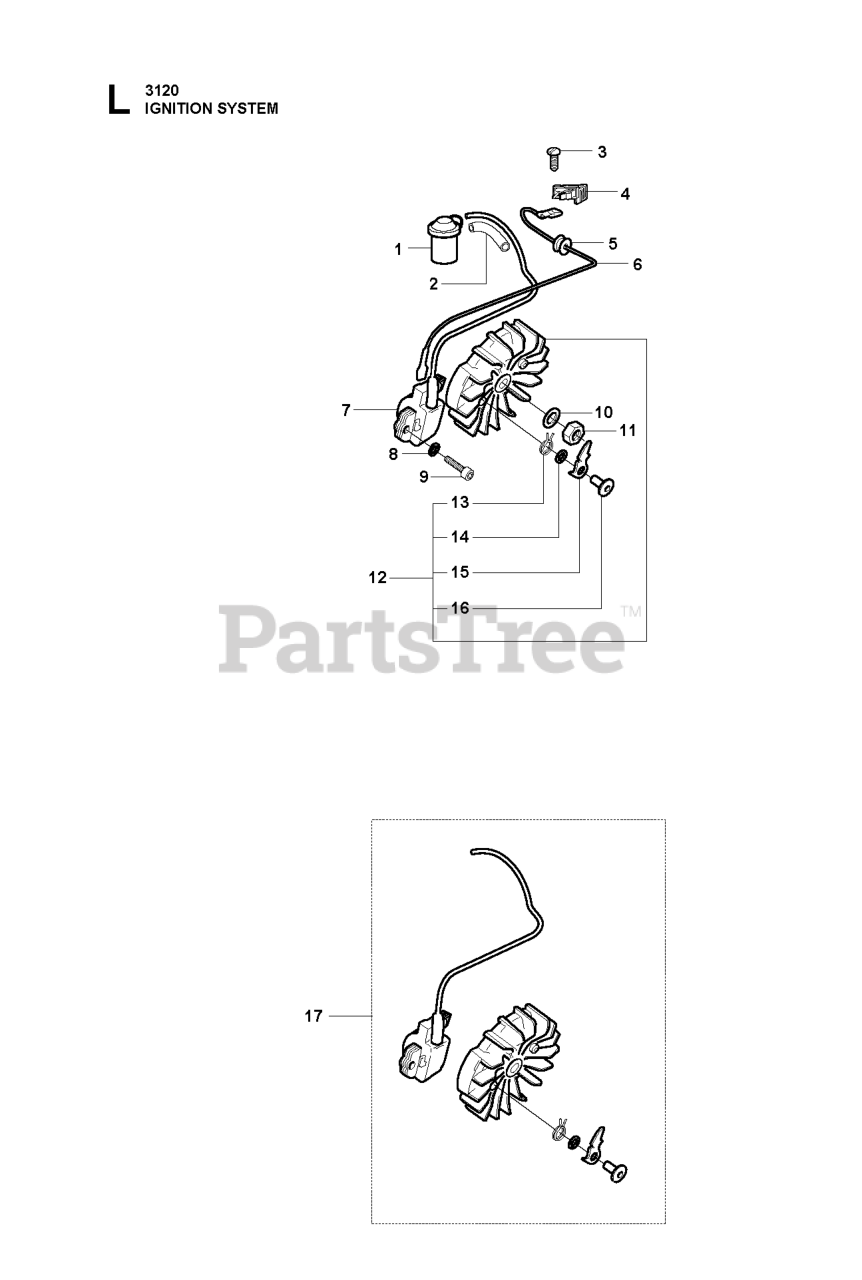

IGNITION SYSTEM Parts Diagram

  • Title

12

Husqvarna 522892002

FLYWHEEL

Note: (cut-out 9800 rpm)

$262.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503221003

NUT M10X1

$5.49

$

In Stock, only 2 left!

0

5

Husqvarna 503132401

GROMMET

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 501839803

LEAD

$12.99

$

In Stock, Qty 5

0

1

Husqvarna 501485402

SPARK PLUG CONN. KIT

$15.99

$

In Stock, Qty 10

0

8

Husqvarna 503230001

WASHER 4.2X9

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 503230042

WASHER

$3.49

$

In Stock, only 2 left!

0

4

Husqvarna 503717901

SWITCH ON/OFF

$14.99

$

In Stock, only 3 left!

0

13

Husqvarna 501673501

SPRING

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 522892001

FLYWHEEL CPL

Note: Up to s/n 20172700017 (cut-out11000 rpm)

$170.99

$

Usually ships in 3-10 days

0

10

Husqvarna 735117350

SPRING WASHER 10.5X18

$3.49

$

In Stock, only 2 left!

0

15

Husqvarna 501673201

PAWL

$7.99

$

In Stock, only 2 left!

0

17

Husqvarna 595312601

Ignition Module

Note: Replaces 503 13 85-01 s/n up to 20172700017 (cut-out 9800 rpm)

$159.99

$

Usually ships in 3-10 days

0

3

Husqvarna 723228485

SCREW 4X5

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 501819901

SCREW M5X14

$5.49

$

In Stock, Qty 5

0

9

Husqvarna 503202520

SCREW

$3.49

$

In Stock, Qty 8

0

7

Husqvarna 587329401

IGNITION MODULE
(Superseded to 587329402)

Note: (cut-out 9800 rpm)

$142.99

$

In Stock, only 2 left!

0

2

Husqvarna 501527406

HOSE

$5.99

$

Usually ships in 3-10 days

0
