312000x68B - Murray 31" Lawn Tractor (2003) Chassis & Hood Parts Diagram

31" Lawn Tractor

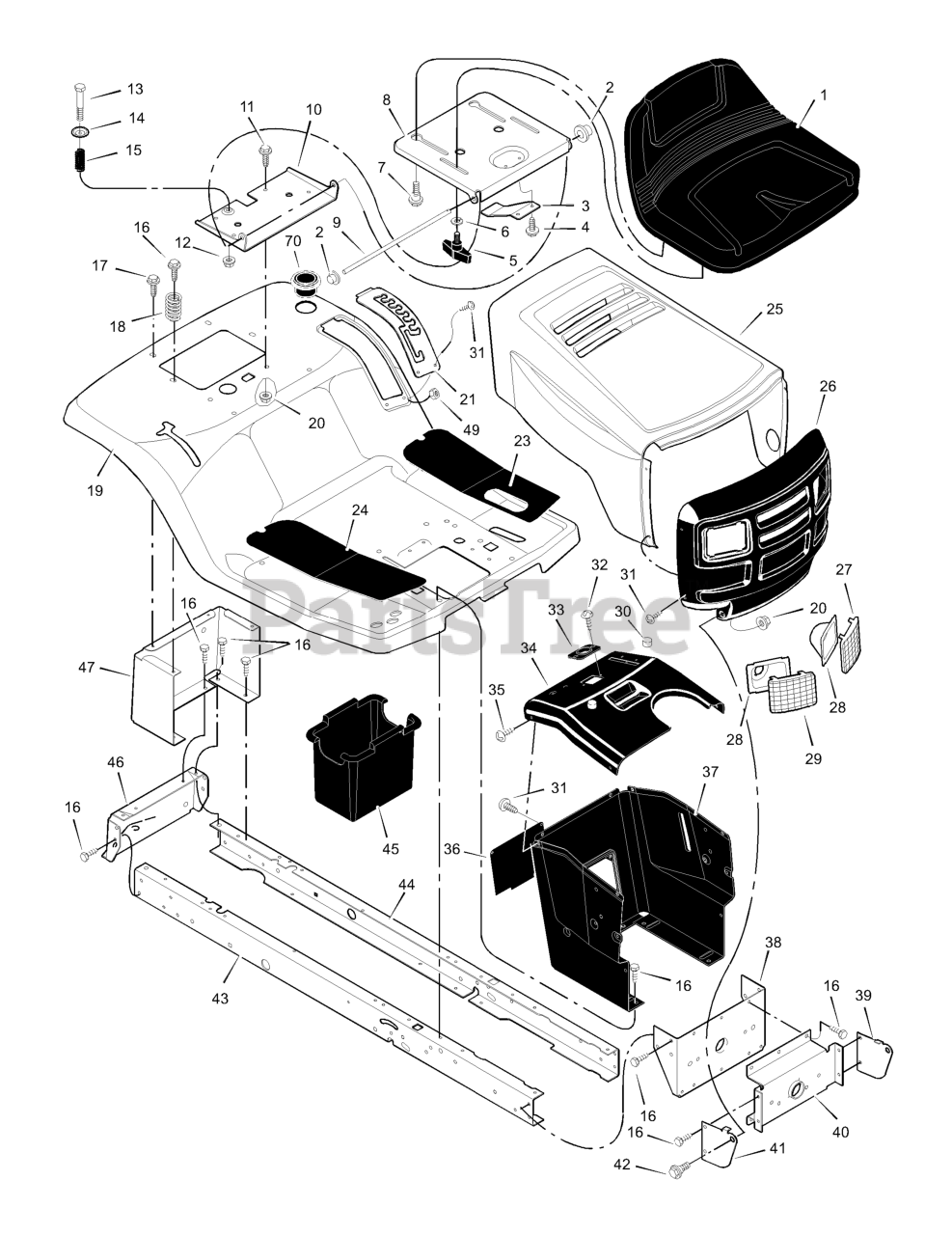

Chassis & Hood Parts Diagram

  • Title
1

Murray 690566MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 14

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E700

Support, Seat

$

$

Currently unavailable

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 094153E700MA

Bracket, Pivot
(Superseded to 1001648E701MA)

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

Murray 1001558E700

Deck, Seat

$

$

Currently unavailable

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 094151E700

Plate, Index

$

$

Currently unavailable

23

Murray 094999MA

Mat, Left

$18.99

$

In Stock, only 1 left!

0

24

Murray 094998MA

Mat, Right

$

$

Not available

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Murray 094081MA

Lens, Left

$8.99

$

Usually ships in 2-12 days

0

28

$

$

Currently unavailable

29

Murray 094080MA

Lens, Right

$9.49

$

In Stock, only 1 left!

0

30

Murray 1001591MA

Plug, Dome

$3.99

$

Usually ships in 2-12 days

0

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 1 left!

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491MA

Bearing, Steering

$5.49

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

35

$4.49

$

In Stock, only 2 left!

0

36

Murray 093007E700

Panel, Access

$

$

Currently unavailable

37

Murray 095318E700

Support, Dash

$

$

Currently unavailable

38

Murray 1001270E700MA

Bracket, Rear Hanger
(Superseded to 1001270E701MA)

$165.99

$

Usually ships in 2-12 days

0

39

Murray 094083E700

Support, Left Grille

$

$

Currently unavailable

40

Murray 094007E700

Axle, Hanger

$

$

Currently unavailable

41

Murray 094082E700

Support, Right Grille

$

$

Currently unavailable

42

Murray 009X58MA

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

In Stock, only 1 left!

0

43

Murray 1001268E701

Frame, Right

$

$

Not available

44

Murray 1001269E701MA

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E700

Plate, Hitch

$

$

Currently unavailable

47

Murray 690434E700

Panel, Rear

$87.99

$

Usually ships in 2-12 days

0

48

$4.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

70

Murray 1001542MA

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray F-030746L

Instruction Book & Parts List

$

$

Currently unavailable
