312002x11A - Murray 31" Lawn Tractor (2004) Motion Drive Parts Diagram

31" Lawn Tractor

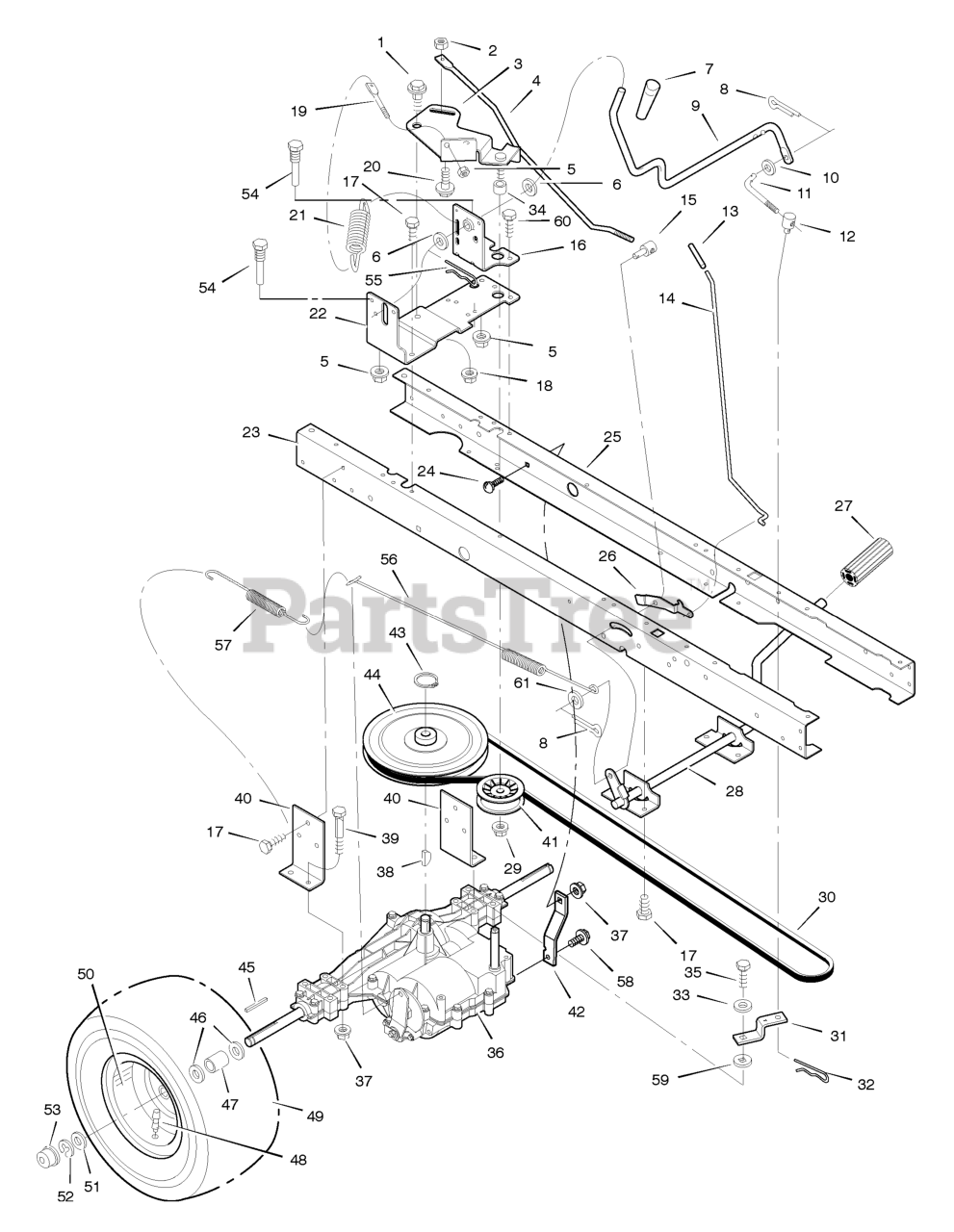

Motion Drive Parts Diagram

  • Title
1

Murray MU009X39

BOLT, Shoulder

$

$

Currently unavailable

2

Murray MU015X89

NUT, Hex

$

$

Currently unavailable

3

Murray MU690173 Z

Arm, Idler

$

$

Currently unavailable

4

Murray MU094041 Z

ROD, Clutch

$

$

Currently unavailable

$

$

Currently unavailable

6

$

$

Currently unavailable

$

$

Currently unavailable

8

Murray MU030X20

PIN, Cotter

$

$

Currently unavailable

9

Murray MU094043 Z

LEVER, Shift

$

$

Currently unavailable

10

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

11

Murray MU094044Z

Link, Shift

$

$

Currently unavailable

12

Murray MU021920 Z

NUT, Adjuster

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Murray MU1001245 Z

ROD, Parking Brake

$

$

Currently unavailable

15

Murray MU094815ZMA

NUT, Adjuster

$

$

Currently unavailable

16

Murray MU1001303 Z

BRACKET, Shift Pivot

$

$

Currently unavailable

17

$

$

Currently unavailable

$

$

Currently unavailable

19

Murray MU094042 Z

STUD, Spring Mounting

$

$

Currently unavailable

20

Murray MU009X54

BOLT, Shoulder

$

$

Currently unavailable

21

Murray MU165X116

SPRING, Extension

$

$

Currently unavailable

22

Murray MU1001302E701

BRACKET, Right Shifter

$

$

Currently unavailable

23

Murray MU1001928E701MA

FRAME, Right

$

$

Currently unavailable

24

Murray MU002X53

BOLT, Carriage

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Murray MU094045 Z

Latch, Parking Brake

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Murray MU94038E700

LEVER, Brake/Clutch

$

$

Currently unavailable

$

$

Currently unavailable

30

Murray MU037X87

BELT, Motion Drive

$

$

Currently unavailable

31

Murray MU094031 Z

Yoke, Shift

$

$

Currently unavailable

32

Murray MU0031X6

PIN, Hair

$

$

Currently unavailable

33

$

$

Currently unavailable

34

$

$

Currently unavailable

35

$

$

Currently unavailable

36

Transaxle, Peerless **

$

$

Not available

$

$

Currently unavailable

38

Murray MU020697

Key, Woodruff

$

$

Currently unavailable

39

$

$

Currently unavailable

40

Murray MU094008E701

BRACKET, Transaxle

$

$

Currently unavailable

41

$

$

Currently unavailable

42

Murray MU094433E701MA

BRACKET, Torque Strap, LH

$

$

Currently unavailable

43

Murray MU0011X7

Ring, Snap

$

$

Currently unavailable

44

Murray MU095094

PULLEY, Drive

$

$

Currently unavailable

45

Murray MU021553

Key, Square

$

$

Currently unavailable

46

$

$

Currently unavailable

47

Murray MU690554 Z

SPACER, Transaxle

$

$

Currently unavailable

48

Murray MU024373

Stem, Valve

$

$

Currently unavailable

49

$

$

Currently unavailable

--

$

$

Currently unavailable

50

Murray MU690376601

WHEEL & TIRE ASSEMBLY

$

$

Currently unavailable

51

$

$

Currently unavailable

52

$

$

Currently unavailable

53

Murray MU094618

Hub Cap

$

$

Currently unavailable

54

Murray MU093349

GUIDE, Belt

$

$

Currently unavailable

55

Murray MU0031X4

PIN, Hair

$

$

Currently unavailable

56

Murray MU165X141

SPRING, Extension

$

$

Currently unavailable

57

Murray MU165X92

SPRING, Extension

$

$

Currently unavailable

58

$

$

Currently unavailable

59

$

$

Currently unavailable

60

$

$

Currently unavailable

61

$

$

Currently unavailable
