312002x11B - Murray 30" Lawn Tractor (2005) Engine Mount Parts Diagram

30" Lawn Tractor

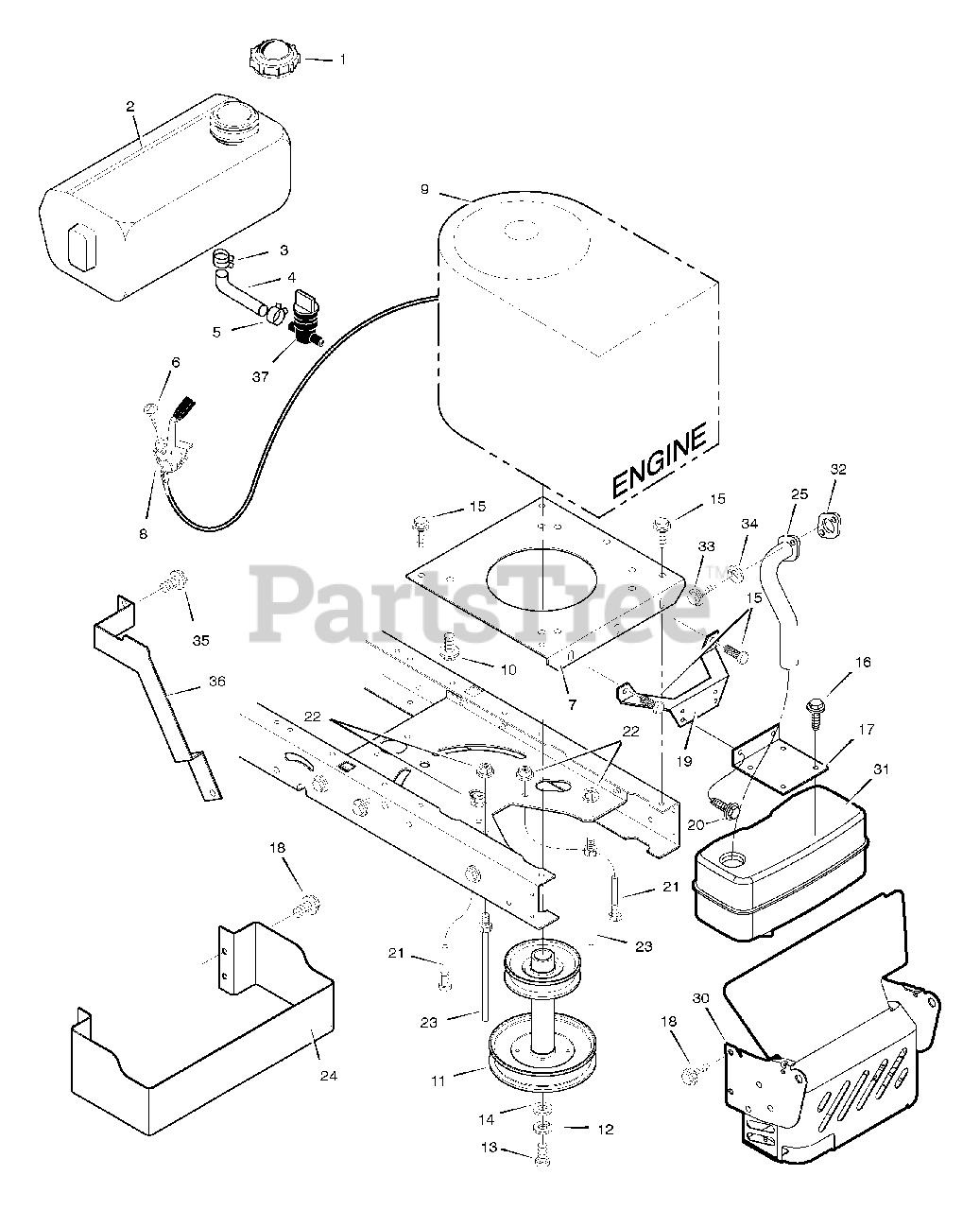

Engine Mount Parts Diagram

  • Title

1

Murray MU092317

Fuel Cap

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

2

Murray MU690280

Fuel Tank

$

$

Currently unavailable

3

Murray MU095197

Hose Clamp

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

4

Murray MU7601033

FUEL LINE (Cut to length)

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

5

Murray MU095197

Hose Clamp

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

6

Murray MU26X201

SCREW

$

$

Currently unavailable

7

Murray MU094006E701

Plate, Engine

$

$

Currently unavailable

8

Murray MU092371

Throttle Control

$

$

Currently unavailable

9

Engine, Briggs & Stratton *

$

$

Not available

10

Murray MU0025X7

BOLT, Engine Mount

$

$

Currently unavailable

11

Murray MU690439

Stack Pulley Assembly

$

$

Currently unavailable

12

Murray MU019X35

LOCKWASHER

$

$

Currently unavailable

13

Murray MU01X140

BOLT, Hex

$

$

Currently unavailable

14

Murray MU17X170

WASHER

$

$

Currently unavailable

15

Murray MU26X249

SCREW

$

$

Currently unavailable

16

Murray MU26X229

SCREW

$

$

Currently unavailable

17

Murray 690538E701MA

Bracket, Muffler

$11.99

$

Usually ships in 2-12 days

0

18

Murray MU26X277

SCREW

$

$

Currently unavailable

19

Murray 690537E701MA

Bracket, Muffler Mount

$76.99

$

Usually ships in 2-12 days

0

20

Murray MU026X214

SCREW

$

$

Currently unavailable

21

Murray MU094384

GUIDE, Belt

$

$

Currently unavailable

22

Murray MU015X79 Z

NUT, Flange

$

$

Currently unavailable

23

Murray MU094066

GUIDE, Belt

$

$

Currently unavailable

24

Murray MU1001620-701

GUARD, Heat Shield

$

$

Currently unavailable

25

Murray MU1001747

Exhaust Tube, Single

$

$

Currently unavailable

30

Murray MU1001619-701

SHIELD, Heat

$

$

Currently unavailable

31

Murray MUMU094654

Muffler

$

$

Currently unavailable

32

Murray MU692236

Gasket

$

$

Currently unavailable

33

Murray MU06X103

SCREW

$

$

Currently unavailable

34

Murray MU018X15

WASHER

$

$

Currently unavailable

35

Murray MU06X104

BOLT, Washer Hex Head

$

$

Currently unavailable

36

Murray MU1001880

GUARD, Exhaust Pipe

$

$

Currently unavailable

37

Murray MU698183

Valve, Fuel Shut-Off

$

$

Currently unavailable
