31201x51B - Murray 30" Lawn Tractor (2000) Steering Parts Diagram

30" Lawn Tractor

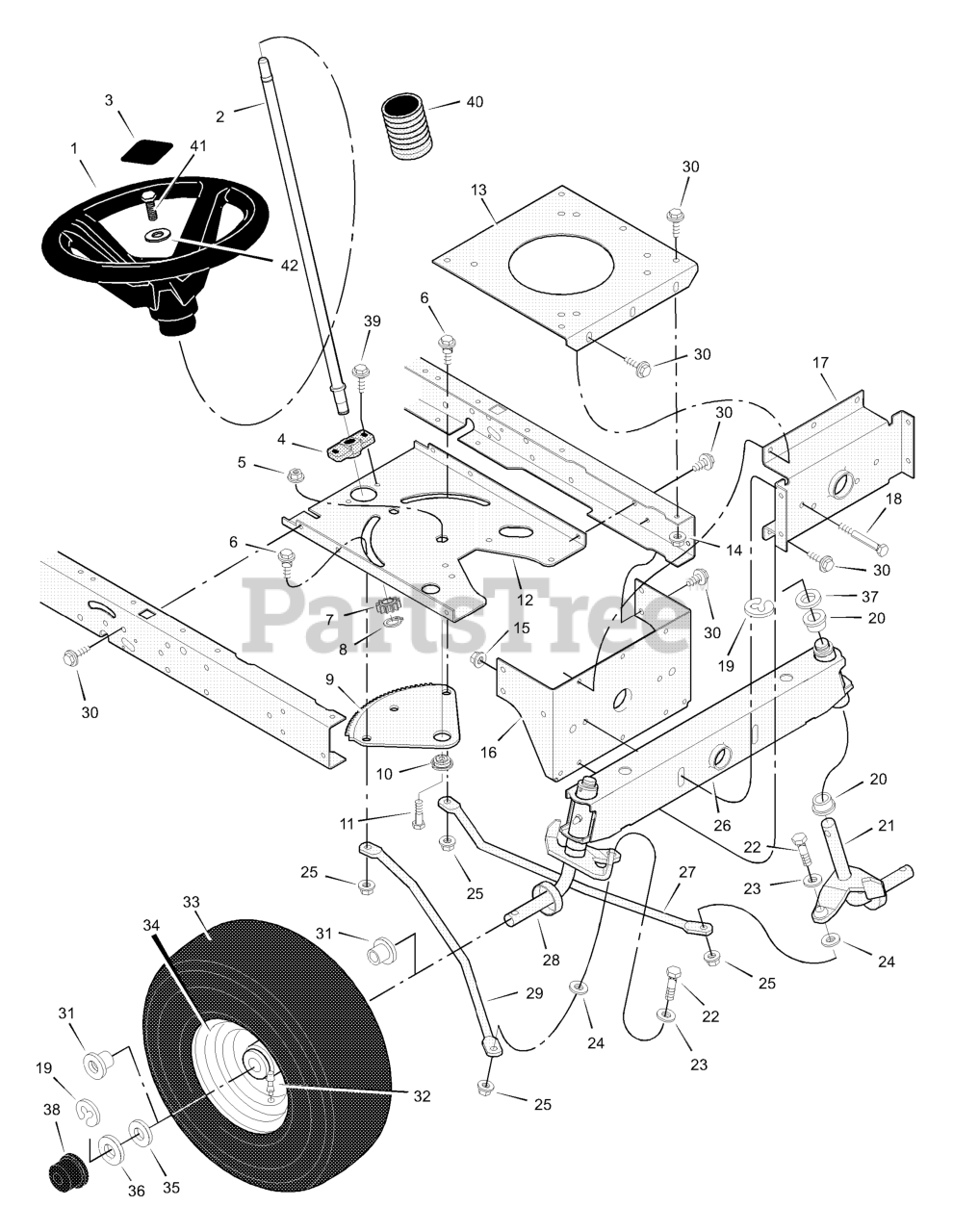

Steering Parts Diagram

  • Title

1

Murray 095336

Wheel, Steering

$63.99

$

Usually ships in 2-12 days

0

2

Murray 690625

Post, Steering

$54.99

$

In Stock, only 1 left!

0

3

Murray 095338MA

Insert, Steering Wheel

$4.49

$

Usually ships in 2-12 days

0

4

Murray 094124MA

Bearing

$15.99

$

In Stock, Qty 5

0

5

Murray 15X111MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X57MA

Bolt, Shoulder

$9.99

$

In Stock, Qty 5

0

7

Murray 690183E700

Gear, Pinion

$

$

Currently unavailable

8

Murray 011X25MA

Ring, Snap

$4.49

$

In Stock, Qty 5

0

9

Murray 094121MA

Gear, Sector

$33.99

$

Usually ships in 2-12 days

0

10

Murray 094123MA

Bearing

$13.99

$

In Stock, only 3 left!

0

11

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

12

Murray 690551E700

Plate, Steering

$

$

Currently unavailable

13

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

14

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

15

Murray 15X118MA

Nut, Flange
(Superseded to 704279)

$3.49

$

Usually ships in 2-12 days

0

16

Murray 094013E701MA

Bracket, Hanger
(Superseded to 1001270E701MA)

$169.99

$

Usually ships in 2-12 days

0

17

Murray 094007E701MA

Axle, Hanger

$34.99

$

Usually ships in 2-12 days

0

18

Murray 01X146MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

19

Murray 0011X3MA

E-ring

$5.99

$

In Stock, Qty 12

0

20

Murray 690150MA

Bearing

$8.99

$

In Stock, only 4 left!

0

21

Murray 1001299E701MA

Spindle Assembly, Left

$247.99

$

Usually ships in 2-12 days

0

22

Murray 01X111MA

Bolt
(Superseded to 703406)

$4.99

$

In Stock, Qty 10

0

23

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

24

Murray 017X53 Z

Washer

$

$

Currently unavailable

25

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Murray 690210MA

Axle Assembly
(Superseded to 7601037MA)

$368.99

$

Usually ships in 2-12 days

0

27

Murray 095329E701MA

Drag Link, Left

$21.99

$

Usually ships in 2-12 days

0

28

Murray 1001298E701MA

Spindle Assembly, Right

$

$

Not available

29

Murray 095328E701MA

Drag Link, Right

$

$

Not available

30

Murray 26X249MA

Screw

$

$

Not available

31

Murray 091334

Bearing, Wheel

$22.99

$

Usually ships in 2-12 days

0

32

Murray 024373MA

Stem, Valve

$8.49

$

Usually ships in 2-12 days

0

33

Murray 090594MA

Tire

Note: (When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.)

$43.99

$

Usually ships in 2-12 days

0

--

Murray 407046MA

Tube

$

$

Not available

34

Murray 690377601

Wheel and Tire Assembly

$

$

Not available

35

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 20+

0

36

Murray 17X113MA

Washer

$3.99

$

Usually ships in 2-12 days

0

37

Murray 017X83MA

Washer
(Superseded to 712120MA)

$5.49

$

In Stock, Qty 16

0

38

Murray 094618MA

Hub Cap

$5.99

$

In Stock, Qty 20+

0

39

Murray 26X267MA

Screw

$4.99

$

Usually ships in 2-12 days

0

40

Murray 092059MA

Bellows

$9.99

$

Usually ships in 2-12 days

0

41

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

42

Murray 17X146MA

Washer
(Superseded to 1933468SM)

$4.49

$

Usually ships in 2-12 days

0
