3122 K - Husqvarna Cut-Off Saw (2011-07) CRANKCASE Parts Diagram

Cut-Off Saw

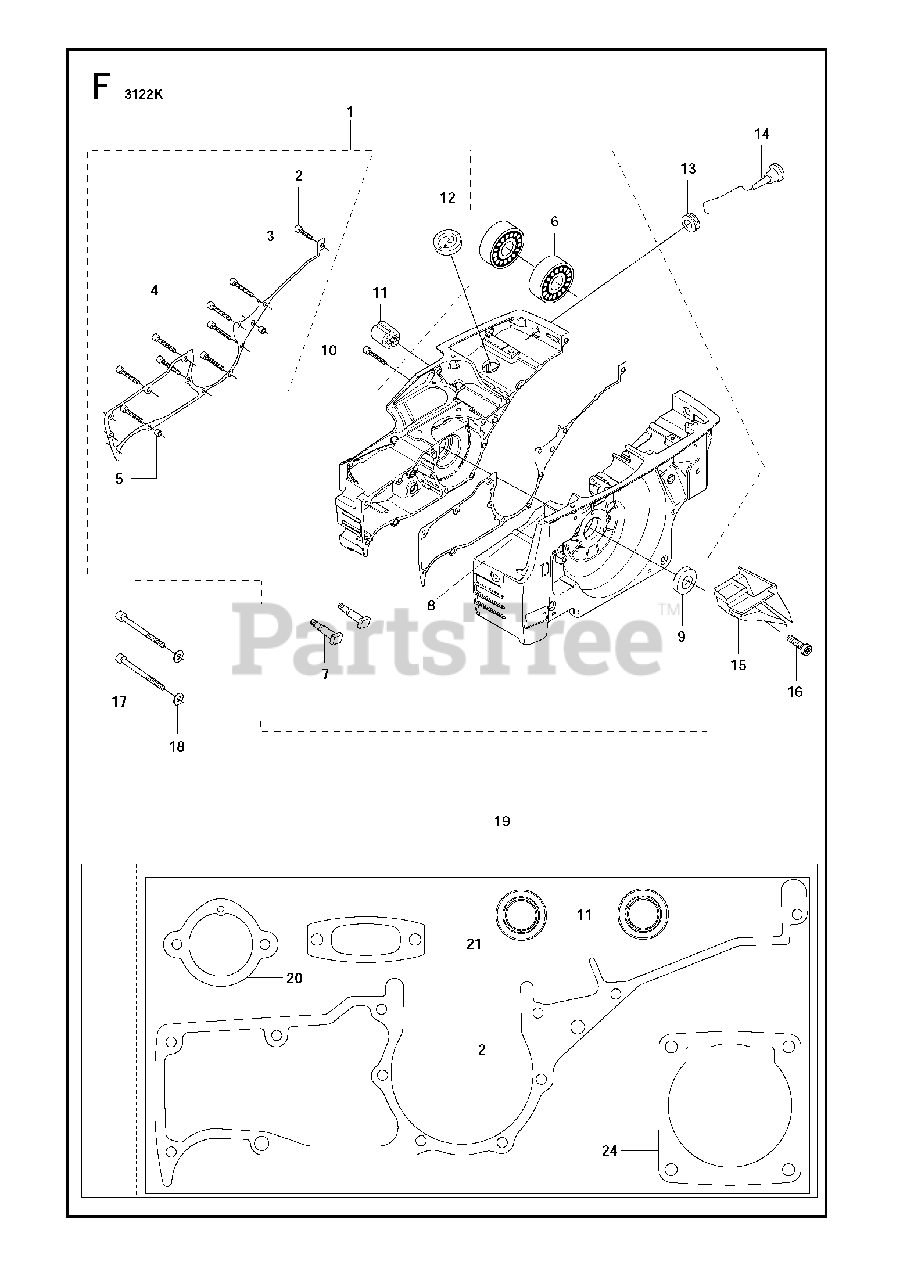

CRANKCASE Parts Diagram

  • Title

1

Husqvarna Construction 576 22 39-02

CRANKCASEIncl. 2 - 9

$740.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503 21 53-20

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 503 13 45-01

CRANKCASE

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503 21 53-41

SCREW ITXSCM

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 501 27 08-01

GUIDE BUSHING
(Superseded to 593806001)

$8.99

$

In Stock, only 3 left!

0

6

Husqvarna 503 25 00-02

BALL BEARING
(Superseded to 738220325)

$20.99

$

In Stock, only 4 left!

0

7

Husqvarna 501 81 57-01

BAR BOLT

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 721 42 06-00

SPRING PIN

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 503 26 02-05

SEALING RING

$25.99

$

In Stock, only 2 left!

0

10

Husqvarna 544 21 84-20

SCREW ITXSCM

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 501 26 97-04

ANTIVIBRATION ELEMENT
(Superseded to 501269705)

$10.99

$

In Stock, Qty 19

0

12

Husqvarna 503 13 20-01

GROMMET

$8.49

$

Usually ships in 3-10 days

0

13

Husqvarna 503 14 54-02

GROMMET

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna 506 25 43-01

CHOKE CONTROL

$23.99

$

In Stock, only 1 left!

0

15

Husqvarna 506 23 70-01

AIR NOZZLE

$30.99

$

Usually ships in 3-10 days

0

16

Husqvarna 501 98 10-01

SCREW ITXSCM

$3.99

$

In Stock, only 2 left!

0

17

Husqvarna 503 21 53-25

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 503 23 00-11

WASHER

$3.99

$

In Stock, only 2 left!

0

19

Husqvarna 506 29 24-03

GASKET KITIncl. 3, 9, 10 - 22
(Superseded to 506292404)

$33.99

$

In Stock, only 2 left!

0

20

Husqvarna 506 27 43-02

GASKET
(Superseded to 579851101)

$12.99

$

In Stock, only 1 left!

0

21

Husqvarna 503 13 13-05

GASKET

$8.99

$

In Stock, only 2 left!

0

22

Husqvarna 503 13 46-01

GASKET

$10.99

$

Usually ships in 3-10 days

0
