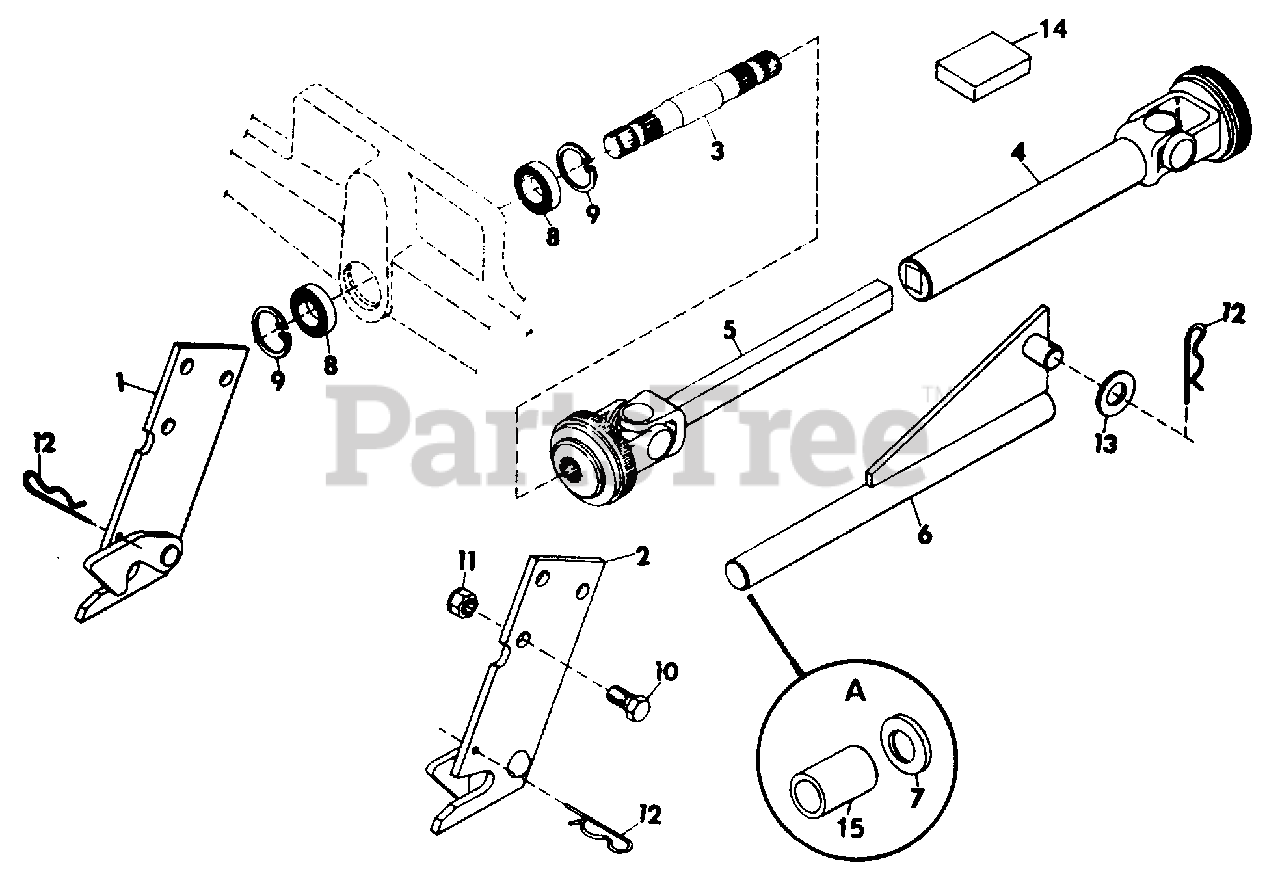

31224 - Gravely Front Drive for 4-Wheel Tractor FRONT DRIVE KIT Parts Diagram

Front Drive for 4-Wheel Tractor

FRONT DRIVE KIT Parts Diagram

  • Title

1

Gravely 011697

BRACKET, FRONT ATTACHMENT WELD, R.H.
(Superseded to 08747600)

$112.99

$

Usually ships in 4-12 days

0

2

Gravely 011698

BRACKET, FRONT ATTACHMENT WELD, L.H.
(Superseded to 08747500)

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 018654

SHAFT, FRT PTO
(Superseded to 08708100)

$180.99

$

Usually ships in 4-12 days

0

4

Gravely 018653

SHAFT, FRT PTO PROP.
(Superseded to 08708000)

$

$

Not available

5

Gravely 015802

JOINT, U, MALE END
(Superseded to 08701500)

$477.99

$

Usually ships in 4-12 days

0

6

Gravely 011396

GUIDE, PUSH ROD WELDMENT
(Superseded to 08862000)

$

$

Not available

7

Gravely 131019

WASHER, FLAT 1.062X2.000X.134
(Superseded to 06443000)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 019072

BEARING, BALL .984X2.047X.590
(Superseded to 05421500)

$13.99

$

In Stock, Qty 6

0

9

Gravely 019073

RING, RETAINING 2.062X.590
(Superseded to 05713300)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 180173

BOLT, HEX 1/2-13X1
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

11

Gravely 120378

NUT, HEX 1/2-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

13

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 17

0

14

Gravely 024560

KIT, REPAIR UNIVERSAL JOINT(NEAPCO)
(Superseded to 03155800)

Note: (NEAPCO)

$

$

Not available

15

Gravely 031301

SPACER
(Superseded to 08714400)

$

$

Not available
