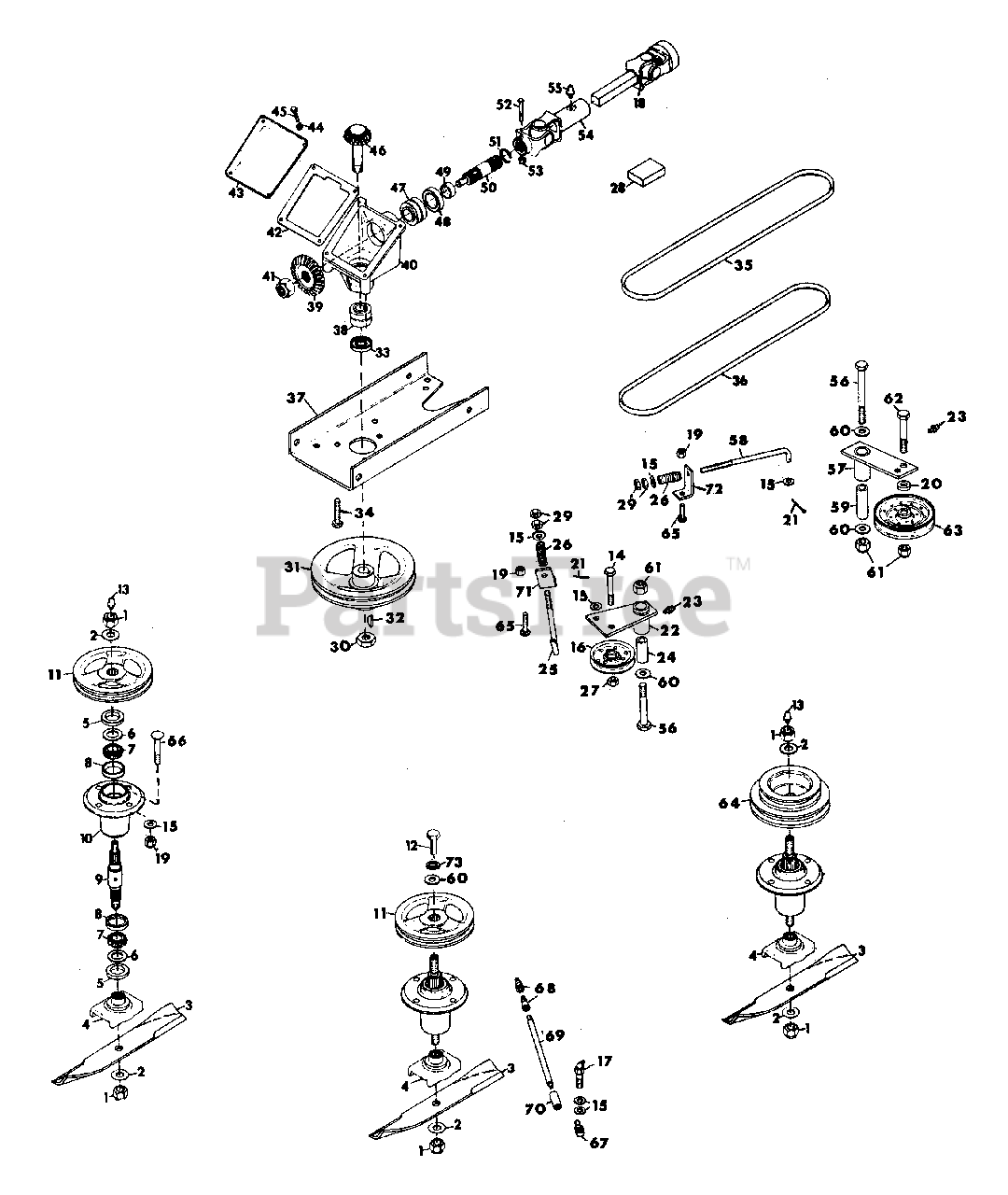

31229 - Gravely Mower Lift for 4-Wheel Tractor Mower Drive Parts Diagram

Mower Lift for 4-Wheel Tractor

Mower Drive Parts Diagram

  • Title

1

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, Qty 14

0

2

Gravely 131016

Washer, Flat .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 25124

Blade

$

$

Currently unavailable

4

Gravely 23026

Cradle, Blade

$

$

Currently unavailable

5

Gravely 21211

Seal, Steel

$

$

Currently unavailable

6

Gravely 20743

Washer, Flat; .975 x 1.970 x .030

$

$

Currently unavailable

7

9246

Cone, Roller Bearing

$

$

Not available

8

9245

Cup, Roller Bearing

$

$

Not available

9

Gravely 21216

Shaft, Left and Right Spindles

$

$

Currently unavailable

9

31356

Shaft, Center Spindle

$

$

Not available

10

21215

Housing, Left and Right Spindles

$

$

Not available

10

Gravely 21218

Housing, Center Spindle

$

$

Currently unavailable

11

Gravely 31359

Pulley

$

$

Currently unavailable

12

Gravely 22065

Bolt, Special

$

$

Currently unavailable

13

Gravely 411010

Fitting, Lube 1/8 NPT
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 180128

Bolt, Hex 3/8-16 x 1.75
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 21060

Sheave, Idler

$

$

Currently unavailable

17

Gravely 273351

Fitting, Lube 65 Deg. NPT
(Superseded to 07025400)

$

$

Not available

18

Gravely 31389

Universal Shaft, Male

$

$

Currently unavailable

19

Gravely 456004

Nut, Lock; 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

20

Gravely 31368

Spacer

$

$

Currently unavailable

21

Gravely 179252

Pin, Cotter .062 x 1.000
(Superseded to 06707500)

$0.99

$

In Stock, only 3 left!

0

22

Gravely 31364

Weldment, Idler Pivot

$

$

Currently unavailable

23

Gravely 14406

Fitting, Lube; 1/4-28 NPT

$

$

Currently unavailable

24

Gravely 31367

Spacer

$

$

Currently unavailable

25

Gravely 21112

Rod, Idler

$

$

Currently unavailable

26

Gravely 11779

Spring

$

$

Currently unavailable

27

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 24560

Kit, Repair Universal Shaft, Male

$

$

Currently unavailable

28

31828

Kit, Repair Universal Shaft, Female

$

$

Not available

29

Gravely 120369

Nut, Hex; 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 1 left!

0

30

Gravely 451539

Nut Jam 3/4-10 Hex Heavy
(Superseded to 06537700)

$2.49

$

In Stock, Qty 20+

0

31

31382

Pulley, Gearbox

$

$

Not available

32

Gravely 431787

Key, Woodruff 3/16 x 5/8 No. 61
(Superseded to 06609300)

$2.99

$

In Stock, only 2 left!

0

33

14645

Seal, Oil

$

$

Not available

34

Gravely 180173

Bolt, Hex; 1/2-13 x 1.000
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

35

Gravely 31369

Belt, A Section

$

$

Currently unavailable

36

Gravely 31383

Belt, B Section

$

$

Currently unavailable

37

31373

Plate, Support

$

$

Not available

38

14644

Bearing, Taper Roller .750

$

$

Not available

39

19607

Gear, Bevel

$

$

Not available

40

14636

Housing, Gear

$

$

Not available

41

Gravely 456007

Nut, Lock; 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

42

11231

Gasket, Gear Housing

$

$

Not available

43

10982

Cover, Gear Housing

$

$

Not available

44

Gravely 120380

Washer, Lock 1/4 Spring
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

45

Gravely 180016

Bolt, Hex 1/4-20 x .50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

46

19608

Pinion Gear

$

$

Not available

47

14640

Bearing, Taper Roller 1.000

$

$

Not available

48

14646

Seal, Oil

$

$

Not available

49

14641

Spacer

$

$

Not available

50

31412

Shaft

$

$

Not available

51

14642

Ring, Retaining; 1.000 Shaft

$

$

Not available

52

Gravely 180046

Bolt Hex 1/4-20 x 2.250
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

53

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

54

31388

Universal Shaft, Female

$

$

Not available

55

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

56

Gravely 180192

Bolt Hex 1/2-13 x 3.500
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

57

Gravely 31360

Weldment, Idler Pivot

$

$

Currently unavailable

58

Gravely 21111

Rod, Idler

$

$

Currently unavailable

59

Gravely 31363

Spacer

$

$

Currently unavailable

60

Gravely 120389

Washer, Flat .500 x 1.250 x .083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

61

Gravely 435507

Nut, Lock; 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

62

Gravely 180181

Bolt Hex 1/2-13 x 2.000
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

63

Gravely 22063

Pulley, Flat Idler

$

$

Currently unavailable

64

Gravely 31358

Double Pulley

$

$

Not available

65

Gravely 120915

Bolt 3/8-16 x 1.000 RD HD SQ NK

$

$

Not available

66

Gravely 126406

Bolt, 3/8-16 x 1.375 RD HD SQ NK
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

67

Gravely 191759

Elbow Adaptor 90 Deg. 1/8-27 NPT
(Superseded to 07012300)

$17.99

$

Usually ships in 4-12 days

0

68

Gravely 144117

Elbow, Street 1/8-27
(Superseded to 07024800)

$13.99

$

Usually ships in 4-12 days

0

69

Gravely 31357

Nipple, Pipe 1/8-27 x 5.50

$

$

Currently unavailable

70

Gravely 144067

Coupling, Pipe 1/8-27
(Superseded to 07024600)

$

$

Not available

71

Gravely 31345

Support, Spring

$

$

Currently unavailable

72

Gravely 31346

Support, Spring

$

$

Currently unavailable

73

Gravely 120384

Washer, Lock 1/2 Spring
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0
