31260 (726) - Toro Snow Thrower (SN: 000200001 - 000299999) (1972) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

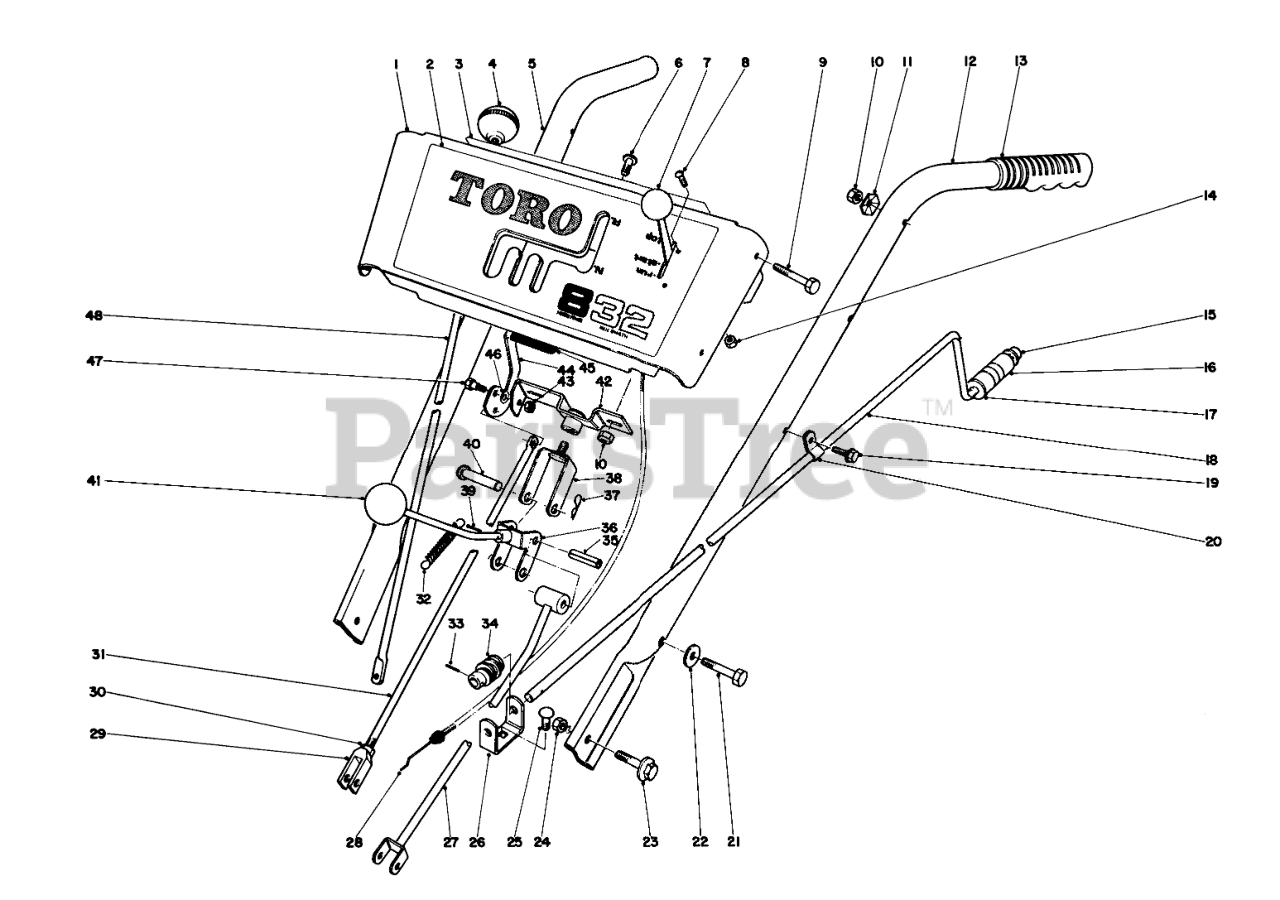

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-4289

Escutcheon Plate (Incl. Ref. 3)

$

$

Currently unavailable

2

Toro 11-8410

Decal (7 HP)

$

$

Currently unavailable

Toro 11-8420

Decal (8 HP)

Note: Not illustrated

$

$

Currently unavailable

3

Toro 11-8390

Decal

$

$

Not available

4

Toro 233-10

KNOB-LEVER

$61.99

$

Usually ships in 3-6 days

0

5

Toro 8-7880

Handle, R.H.

$

$

Currently unavailable

6

Toro 3258-157

Screw, Machine

$

$

Not available

7

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

8

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

9

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

11

Toro 3290-257

Washer

$

$

Not available

12

Toro 11-7150

Handle, Left

$

$

Not available

13

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

14

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

15

Toro 3290-302

Speed Nut

$

$

Currently unavailable

16

Toro 6-0030

Chute Control Grip
(Superseded to 20-2060)

$

$

Not available

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 8-8570

ROD CHUTE CONTROL

$

$

Not available

19

Toro 32140-82

Hex Hd. Screw
(Superseded to 32144-11)

$7.99

$

In Stock, Qty 8

0

20

Toro 2412-10

R-CLAMP

$3.49

$

Usually ships in 3-6 days

0

21

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

23

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 15

0

24

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

25

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

26

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

27

Toro 11-8100

Trunnion

$

$

Not available

28

Toro 8-7790

Throttle Contrl

$

$

Not available

29

Toro 282-1

Yoke
(Superseded to 282-1-01)

$

$

Not available

30

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

31

Toro 8-8030

Drag Link
(Superseded to 20-2310)

$

$

Not available

32

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

33

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

34

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

35

Toro 32121-42

PIN-ROLL

$2.99

$

In Stock, only 1 left!

0

36

Toro 11-9090

Rod Shift
(Superseded to 26-9370)

$186.99

$

Usually ships in 3-6 days

0

37

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

38

Toro 8-7910

Pivot Bracket
(Superseded to 29-6490)

$

$

Not available

39

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

40

Toro 283-5

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

41

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

42

Toro 8-7930

SWIVEL BLOCK WA

$

$

Not available

43

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

44

Toro 11-8830

Handle, Auger
(Superseded to 17-6620)

$

$

Not available

45

Toro 11-8970

AUGER CLUTCH HND GRIP

$

$

Not available

46

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

48

Toro 10-3900

Rod Wheel Clutch

$

$

Currently unavailable
