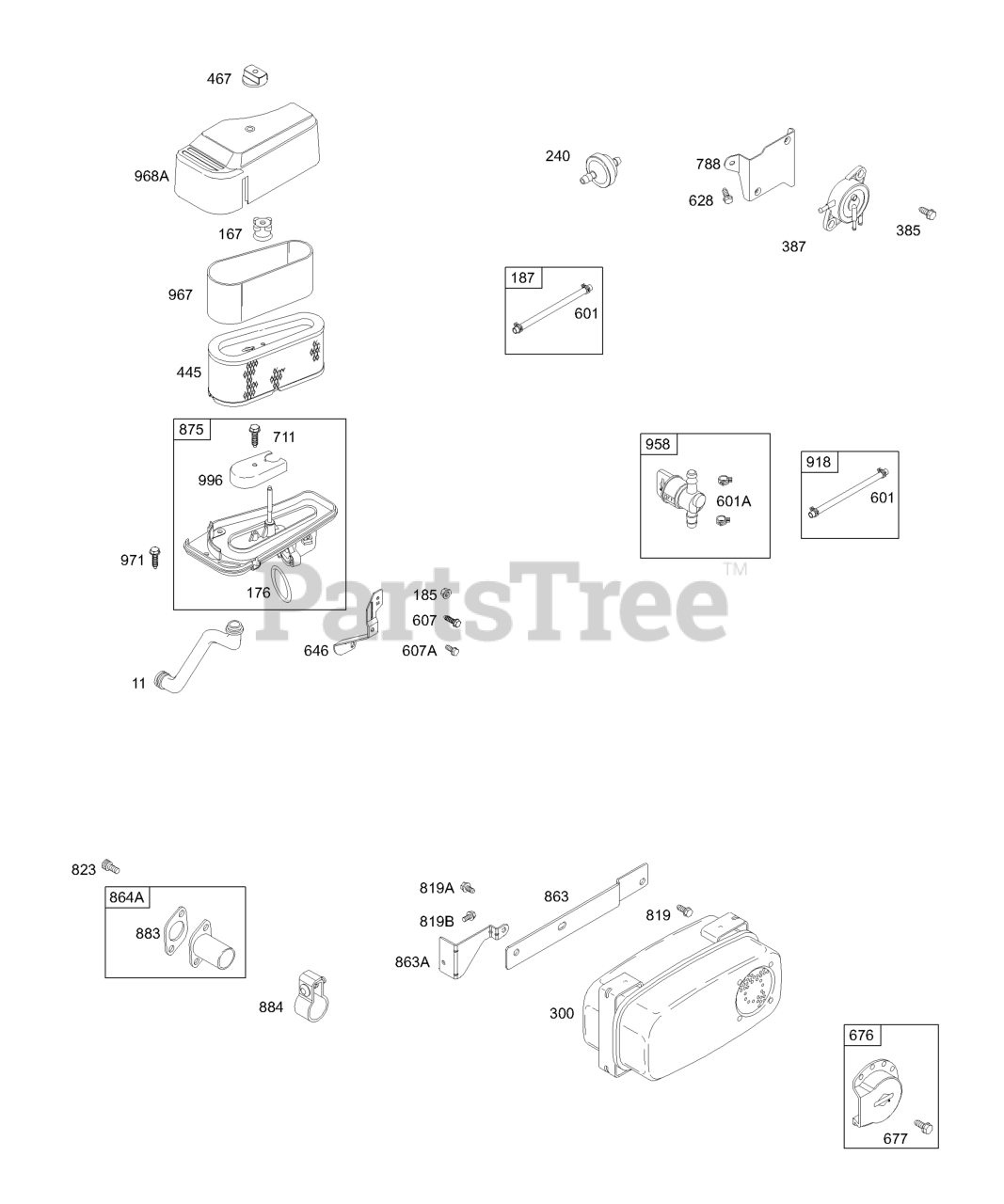

312707-0136-E1 - Briggs & Stratton Vertical Engine Air Cleaner, Fuel, Muffler Parts Diagram

Vertical Engine

Air Cleaner, Fuel, Muffler Parts Diagram

  • Title

11

Briggs & Stratton 691328

Tube-Breather

$15.99

$

In Stock, only 3 left!

0

167

Briggs & Stratton 692297

Seal-Air Cleaner Nut

$10.99

$

Usually ships in 2-12 days

0

176

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Air Cleaner Base)

$4.49

$

In Stock, Qty 20+

0

185

Briggs & Stratton 690958

NUT

Note: (Air Cleaner Base)

$3.49

$

In Stock, Qty 7

0

187

Briggs & Stratton 691050

Line-Fuel
(Superseded to 791766)

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 18

0

240

Briggs & Stratton 394358S

FILTER, Fuel

Note: (White, 75 Microns)

$5.99

$

In Stock, Qty 20+

0

300

Briggs & Stratton 690850

Muffler

$139.99

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 691108

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 20+

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 496894S

Filter-Air Cleaner Cartridge

$19.99

$

In Stock, Qty 10

0

467

Briggs & Stratton 691668

Knob-Air Cleaner

$5.49

$

In Stock, Qty 7

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

607

Briggs & Stratton 690703

Screw

Note: (Air Cleaner Brace)

$3.99

$

Usually ships in 2-12 days

0

607A

Briggs & Stratton 691693

SCREW

Note: (Air Cleaner Brace)

$3.99

$

In Stock, only 2 left!

0

628

Briggs & Stratton 690661

SCREW

Note: (Fuel Pump Bracket)

$3.49

$

In Stock, Qty 19

0

646

Briggs & Stratton 690460

Brace-Air Cleaner

$5.49

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393761

Deflector-Muffler
(Superseded to 795036)

Note: (Side Out)

$8.49

$

In Stock, Qty 5

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 19

0

711

Briggs & Stratton 690703

Screw

Note: (Carburetor Shield)

$3.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 692133

Bracket-Fuel Pump

$15.99

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 690297

Screw

Note: (Muffler Bracket)

$3.49

$

In Stock, Qty 7

0

819A

Briggs & Stratton 691678

SCREW

Note: (Muffler Bracket)

$4.99

$

In Stock, only 1 left!

0

819B

Briggs & Stratton 691676

Screw

Note: (Muffler Bracket)

$3.99

$

In Stock, only 3 left!

0

823

Briggs & Stratton 698941

SCREW

Note: (Muffler Adapter)

$6.99

$

In Stock, Qty 8

0

863

Briggs & Stratton 691204

Bracket-Muffler

Note: (Lower)

$12.99

$

Usually ships in 2-12 days

0

863A

Briggs & Stratton 691205

Bracket-Muffler

$12.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 696129

Base-Air Cleaner

Note: (Plastic)

$

$

Not available

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

884

Briggs & Stratton 690853

Clamp-Muffler

$13.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 393815

Hose-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 272403S

Filter-Pre Cleaner

$3.99

$

In Stock, Qty 15

0

968A

Briggs & Stratton 692355

Cover-Air Cleaner

$87.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 692129

Screw

Note: (Air Cleaner Base to Carburetor)

$5.49

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 690678

Shield-Carburetor

$10.99

$

Usually ships in 2-12 days

0
