313 (190-313-100) - Cub Cadet 38" & 42" Triple Rear Bagger att Cover Assembly II Parts Diagram

38" & 42" Triple Rear Bagger

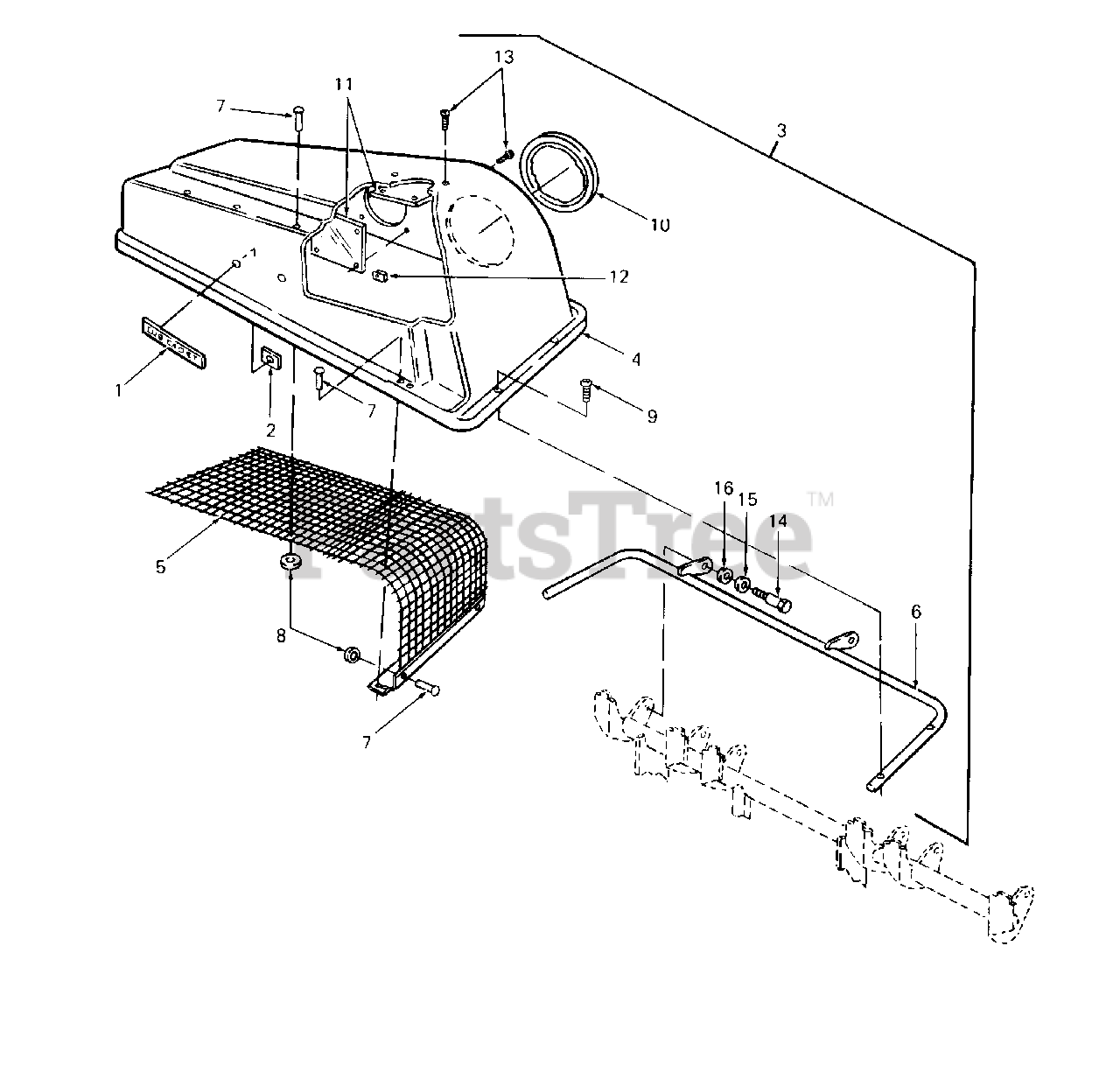

Cover Assembly II Parts Diagram

  • Title

1

Cub Cadet 731-3081

Plaque, Logo w/Studs
(Superseded to 731-3081A)

$

$

Not available

2

Cub Cadet 726-3040

Nut, Push-On Speed

$4.99

$

In Stock, only 2 left!

0

3

Cub Cadet 703-1992

Cover Assy, Grass Catcher

Note: [Includes Ref No.4,5,6,7,(Qty 20),8 (Qty 16),9 (Qty 9),10,11(Qty 2),12(Qty

$

$

Not available

4

Cub Cadet 703-1992

Order Grass Catcher Assy

$

$

Not available

5

Cub Cadet 703-1992

Order Grass Catcher Assy

$

$

Not available

6

Cub Cadet 749-0747

Bracket Assy, Catcher Cover Hinge
(Superseded to 749-0747-0637)

Variations

749-0747-0637

Cub Cadet 749-0747-0637

HINGE BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 728-0123

Rivet, Pop
(Superseded to 928-0123)

$5.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0400

Washer, Flat, .218 x .62 x .063 Thk

$5.99

$

In Stock, Qty 9

0

9

Cub Cadet 710-1005

Screw, Hex Wash Hd Tapp 1/4 X .50 Lg
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 723-0412

Seal, Tube, 7.1 ID

$32.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 731-0824A

Plate, Plastic, 1/8 Thk x 5.62 Sq

$

$

Not available

12

Cub Cadet 726-0244

Nut, U-Type Speed
(Superseded to 712-0147)

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0351

Screw, Truss Mach, #10 X .50 Lg

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 738-0380

Screw, Shld

$8.49

$

In Stock, Qty 10

0

15

Cub Cadet 736-0108

Washer, Flat, .510 x .75 x .033 Thk

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0255

Washer, bell, .515 x 1.14

$4.99

$

In Stock, only 1 left!

0
