31301 - Toro Snow Hound Snow Thrower (SN: 008000001 - 008999999) (1968) Engine Model No. H35-45171f Parts List Parts Diagram

Snow Hound Snow Thrower

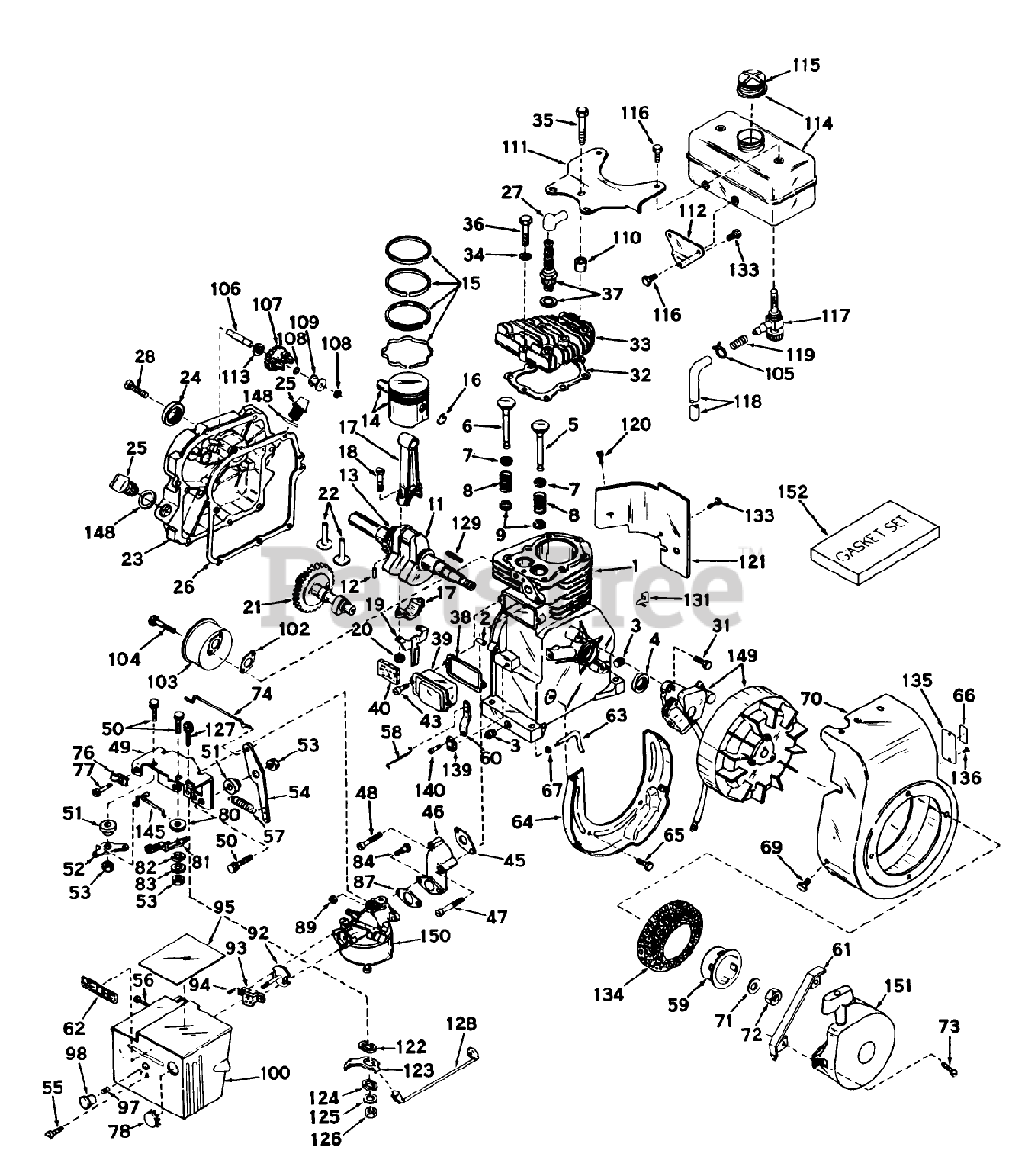

Engine Model No. H35-45171f Parts List Parts Diagram

  • Title

1

Toro 31270

Cylinder Assy., (Incl. Nos. 2, 3 4)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 29183

OIL SEAL

Note: Indicates items included in Gasket Set No. 31346A.

$

$

Currently unavailable

5

Toro 29314A

Valve, Intake (Incl. Ref. #38, 39 40) (Std.)

$

$

Currently unavailable

5

Toro 29316A

Valve, Intake(1/32"overs.)(Incl. Ref. 8, 9 10)

$

$

Currently unavailable

6

Toro 29313A

Valve, Exhaust (Standard)(Incl. Ref. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315A

Valve, Exhaust (1/32" Overs.(Incl. Ref. 8, 9 10)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

8

Toro 31672

Spring-Valve

$

$

Currently unavailable

9

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 30946

Crankshaft Assy. (Incl. Ref. 12 13)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27613

Gear, Crankshaft

$

$

Currently unavailable

14

Toro 31307

Piston Pin Assy. (Incl. 2 of No. 16)(Standard)

$

$

Currently unavailable

14

Toro 31308

Piston Pin Assy. (Incl. 2 of No. 16)(.010 oversize)

$

$

Currently unavailable

14

Toro 31309

53020 ADN. TO 28594

$3.23

$

Usually ships in 3-6 days

0

15

Toro 28986

Piston Ring Set Std.

$

$

Currently unavailable

15

Toro 28987

Piston Ring Set .010 O.S.

$

$

Currently unavailable

15

Toro 28988

Piston Ring Set .020 O.S.

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 30809

Rod Assy., Connecting (Incl. Ref. 18, 19 20)

$

$

Currently unavailable

18

Toro 26706

Bolt, Connecting

$

$

Currently unavailable

19

Toro 28594

53020/22 GIL.HYDRO

$3.23

$

Usually ships in 3-6 days

0

20

Toro 27573

LOCKNUT

$

$

Currently unavailable

21

Toro 31317

Camshaft
(Superseded to 703514)

$

$

Not available

22

Toro 2724

Hook-Battery

$

$

Currently unavailable

23

Toro 30941A

Cover, Cylinder (Incl. Nos. 24 106)

$

$

Currently unavailable

24

Toro 30256

Seal, Oil

Note: Indicates items included in Gasket Set No. 31346A.

$

$

Currently unavailable

25

Toro 27625

Plug-Fill, Oil
(Superseded to 741498)

$

$

Not available

26

Toro 27677

Gasket-Cylinder Cover

Note: Indicates items included in Gasket Set No. 31346A.

$

$

Currently unavailable

27

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

28

Toro 30564

Screw

$

$

Currently unavailable

31

Toro 650489

Screw

$

$

Currently unavailable

32

Toro 29953B

Gasket-Cylinder Head

Note: Indicates items included in Gasket Set No. 31346A.

$

$

Currently unavailable

33

Toro 30579

CYLINDER HEAD

$

$

Currently unavailable

34

Toro 26073

Washer

$

$

Currently unavailable

35

Toro 6023

Screw

$

$

Currently unavailable

36

Toro 6021

Screw

$

$

Currently unavailable

37

Toro 21943

SPARK PLUG

$

$

Currently unavailable

38

Toro 31619

Gasket Breather

Note: Indicates items included in Gasket Set No. 31346A.

$

$

Currently unavailable

39

Toro 31337

Breather Assembly (Incl. Nos. 52 84)

$

$

Currently unavailable

40

Toro 31410

Element-Breather

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

45

Toro 26754

Gasket-Intake

Note: Indicates items included in Gasket Set No. 31346A.

$

$

Currently unavailable

46

Toro 28413

INTAKE PIPE

$

$

Currently unavailable

47

Toro 30647

Screw

$

$

Currently unavailable

48

Toro 30646

Screw

$

$

Currently unavailable

49

Toro 30821

Bracket, Speed Control

$

$

Currently unavailable

50

Toro 30312

SCREW, HEX WASHER HD.

Note: In original production rivets are used instead of the screws and nuts illustrated. Rivets can be removed and illustrated hardware used when replacing component parts.

$

$

Currently unavailable

51

Toro 29530

Bushing

$

$

Currently unavailable

52

Toro 30861

Lever, RPM Adjusting

$

$

Currently unavailable

53

Toro 30529

Nut

Note: In original production rivets are used instead of the screws and nuts illustrated. Rivets can be removed and illustrated hardware used when replacing component parts.

$

$

Currently unavailable

54

Toro 30873

Lever, Bell Crank

$

$

Currently unavailable

55

Toro 14661

752 SICKLE BAR MOWE

$3.23

$

Usually ships in 3-6 days

0

56

Toro 650546

Screw, Rd. Hd. Sheet Metal

$

$

Currently unavailable

57

Toro 31426

Spring-Extension

$

$

Currently unavailable

58

Toro 31858

Jet-Main

$

$

Currently unavailable

59

Toro 590416

Starter Cup

$

$

Currently unavailable

60

Toro 31510

Lever-Governor

$

$

Currently unavailable

61

Toro 31680

Guard, Starter

$

$

Currently unavailable

62

Toro 31683

Decal, Choke

$

$

Currently unavailable

63

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

64

Toro 30658

Baffle, Blower Hsg.

$

$

Currently unavailable

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

66

Toro 31681

Decal, Instruction

$

$

Currently unavailable

67

Toro 28277

Washer-Flat

$

$

Currently unavailable

69

Toro 650556

Screw

$

$

Currently unavailable

70

Toro 30655

Housing,Blower

$

$

Currently unavailable

71

Toro 650490

Washer

$

$

Currently unavailable

72

Toro 650607

Hex Nut

$

$

Currently unavailable

73

Toro 29716

Screw

$

$

Currently unavailable

74

Toro 30865

Link, Bell Crank

$

$

Currently unavailable

76

Toro 27793

Conduit

$

$

Currently unavailable

77

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

78

Toro 31291

Plug

$

$

Currently unavailable

80

Toro 30773

Bushing Control Lever

$

$

Currently unavailable

81

Toro 31269

Lever, Control

$

$

Currently unavailable

82

Toro 28558

Washer

$

$

Currently unavailable

83

Toro 30369

Washer, Flat

$

$

Currently unavailable

84

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

87

Toro 26756

Gasket

Note: Indicates items included in Gasket Set No. 31346A.

$

$

Currently unavailable

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

92

Toro 32397

Plate, Choke

$

$

Currently unavailable

93

Toro 32398

Bracket-Choke

$

$

Currently unavailable

94

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

95

Toro 31682

Decal, Operating

$

$

Currently unavailable

97

Toro 32399

Spring, Compression

$

$

Currently unavailable

98

Toro 32400

Knob, Choke

$

$

Currently unavailable

100

Toro 32417

Capscrew

$

$

Currently unavailable

102

Toro 30081

Gasket Exhaust

Note: Indicates items included in Gasket Set No. 31346A.

$

$

Currently unavailable

103

Toro 30996

Muffler

$

$

Currently unavailable

104

Toro 650538

Screw, Hex Hd. Cap

$

$

Currently unavailable

105

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

106

Toro 30574

Shaft-Governor

$

$

Currently unavailable

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

110

Toro 28212

pacer

$

$

Currently unavailable

111

Toro 28371

Bracket, Fuel Tank-Upper

$

$

Currently unavailable

112

Toro 28209

Bracket, Fuel Tank-Lower

$

$

Currently unavailable

113

Toro 30590A

Washer-Flat

$

$

Currently unavailable

114

Toro 30656

Tank Assy., Fuel (Incl. No. 115)

$

$

Currently unavailable

115

Toro 30998

Cap, Fuel Tank

$

$

Currently unavailable

116

Toro 650556

Screw

$

$

Currently unavailable

117

Toro 29683

Fitting Shut-off, Fuel

$

$

Currently unavailable

118

Toro 30705

Line-Fuel

$

$

Currently unavailable

119

Toro 28819

Spring, Coil

$

$

Currently unavailable

120

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 29745

Extension-Blower

$

$

Currently unavailable

122

Toro 30092

Washer, Insulating

$

$

Currently unavailable

123

Toro 30093

Terminal

$

$

Currently unavailable

124

Toro 30094

Washer, Insulating

$

$

Currently unavailable

125

Toro 30771

Washer, Flat

$

$

Currently unavailable

126

Toro 30095

Nut

Note: In original production rivets are used instead of the screws and nuts illustrated. Rivets can be removed and illustrated hardware used when replacing component parts.

$

$

Currently unavailable

127

Toro 30091

Screw, Hex Slotted Hd.

Note: In original production rivets are used instead of the screws and nuts illustrated. Rivets can be removed and illustrated hardware used when replacing component parts.

$

$

Currently unavailable

128

Toro 28468

Wire, Ground

$

$

Currently unavailable

129

Toro 27247

Key Flywheel

$

$

Currently unavailable

131

Toro 29443

Clip-Wire

$

$

Currently unavailable

133

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

134

Toro 590417

Screen, Air

$

$

Currently unavailable

135

Toro 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

136

Toro 29309

DRIVE STUD

$

$

Currently unavailable

139

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

140

Toro 650548

Screw

$

$

Currently unavailable

145

Toro 30774

Link, RPM Adjusting

$

$

Currently unavailable

148

Toro 29673

Gasket

Note: Indicates items included in Gasket Set No. 31346A.

$

$

Currently unavailable

149

Toro 610690A

Magneto

$

$

Currently unavailable

150

Toro 630958B

Carburetor

$

$

Currently unavailable

151

Toro 590420

Starter, Rewind

$

$

Currently unavailable

152

Toro 31346A

Gasket Set

$

$

Currently unavailable
