31301 - Toro Snow Hound Snow Thrower (SN: 008000001 - 008999999) (1968) SNOW HOUND-20" SNOW THROWER Parts Diagram

Snow Hound Snow Thrower

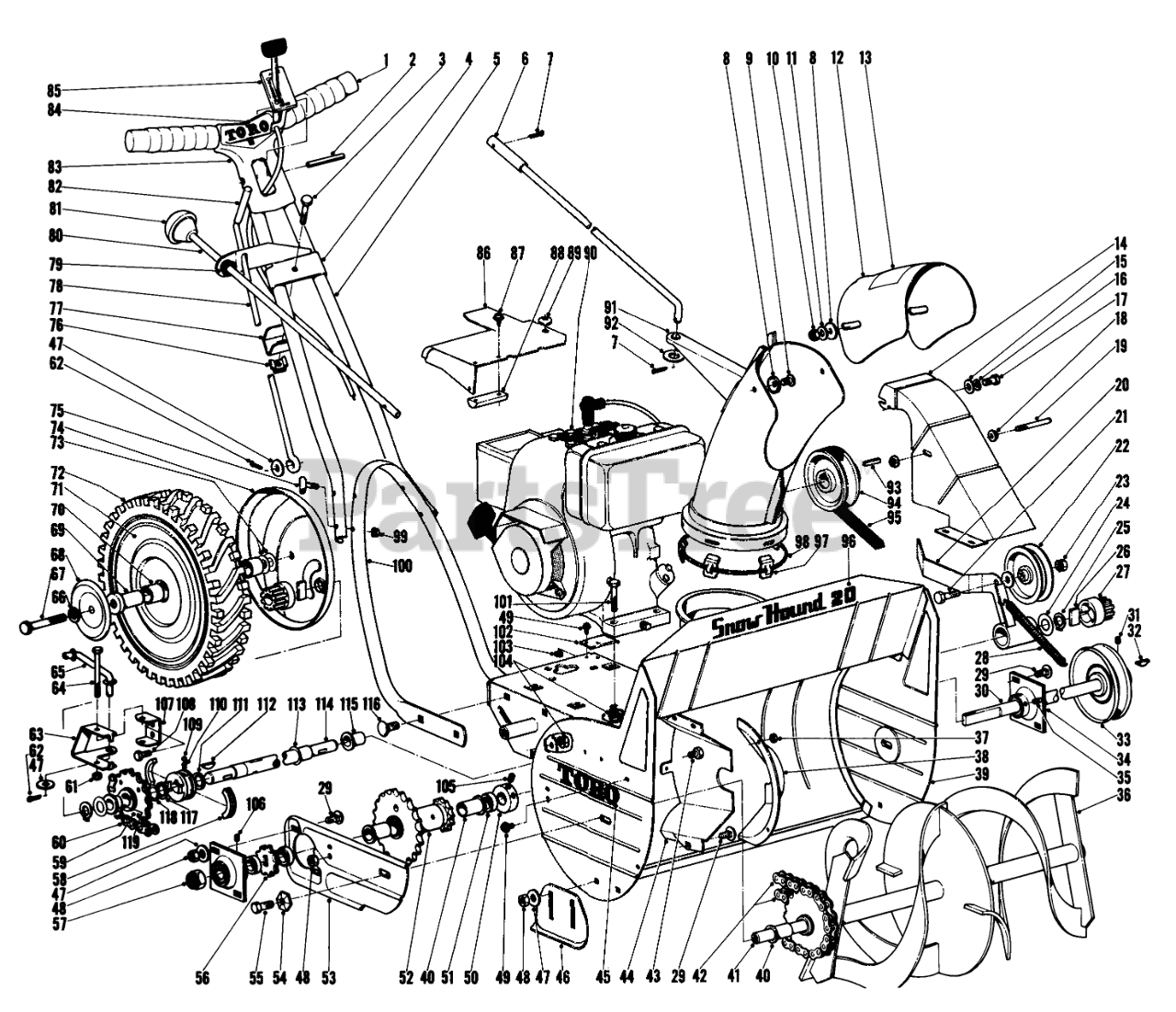

SNOW HOUND-20" SNOW THROWER Parts Diagram

  • Title

1

Toro 5-1994

Handle Clip

$

$

Not available

2

Toro 32121-10

PIN-ROLL

$7.49

$

Usually ships in 3-6 days

0

3

Toro 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

4

Toro 3-6052

Bracket-Control

$

$

Currently unavailable

5

Toro 3-7441

Handle Arm, Upper W.A.

$

$

Currently unavailable

6

Toro 3-7393

Rod-Chute

$

$

Currently unavailable

7

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 3290-249

Washer

$

$

Currently unavailable

9

Toro 32122-14

SCREW-PPH

$2.49

$

In Stock, Qty 16

0

10

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3-2596

Deflector

$

$

Not available

13

Toro 3-1666

Decal

$

$

Currently unavailable

14

Toro 5-3453

Tire

$

$

Not available

15

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

18

Toro 32128-14

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

19

Toro 3-6302

Guide Pin

$

$

Not available

20

Toro 3-9120

Belt Tightener

$

$

Not available

21

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

22

Toro 244-63

PULLEY B

$

$

Not available

23

Toro 32149-4

Nut

$

$

Currently unavailable

24

Toro 5-1078

Washer

$

$

Not available

25

Toro 32120-91

Snap Ring

$

$

Currently unavailable

26

Toro 2-3620

RATCHET DOG

$

$

Not available

27

Toro 1-3669

Pinion Kit

$

$

Currently unavailable

28

Toro 3-6011

Spring, Tension

$

$

Not available

29

Toro 3-5861

Bolt
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

30

Toro 3-7383

Drive Shaft

$

$

Not available

31

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

33

Toro 3-2590

Pulley

$

$

Not available

34

Toro 251-178

Bushing Flange Mounted

$

$

Not available

35

Toro 3241-2

SCREW-SQH
(Superseded to 3241-7)

$3.99

$

In Stock, Qty 5

0

36

Toro 3-7373

Rotor Incl. Ref. #44

$

$

Not available

37

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

38

Toro 3-7396

Guard-Rotor Chain

$

$

Not available

39

Toro 3-7438

Frame Incl. Ref. #72

$

$

Currently unavailable

40

Toro 256-146

Bushing

$

$

Not available

41

Toro 3-5997

ROTOR SHAFT

$

$

Not available

42

Toro 3-6014

Chain

$

$

Not available

Toro 2710-6

LINK-CONNECTING

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0

43

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

44

Toro 3-7397

Guard, Chain

$

$

Not available

45

Toro 3-1058

Decal

$

$

Not available

46

Toro 3-3866

Skid
(Superseded to 40-8160-01)

$23.99

$

In Stock, Qty 20+

0

47

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

49

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

50

Toro 3-5315

Collar

$

$

Not available

51

Toro 3-7384

COSHAFT SPACER

$

$

Not available

52

Toro 3-7378

Sprocket (Incl. Ref. 7)

$

$

Not available

53

Toro 3-7387

Support-Bearing

$

$

Not available

54

Toro 3290-224

LOCKWASHER-PYRAMID

$36.99

$

Usually ships in 3-6 days

0

55

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

56

Toro 5-1076

Sprocket

$

$

Not available

57

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

58

Toro 3-5264

DOG

$

$

Not available

59

Toro 3-9240

Drive Sprocket Assembly

$

$

Not available

60

Toro 3-6015

Chain

$

$

Not available

61

Toro 32146-8

Nut
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

62

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

63

Toro 3-6005

Fork Shift

$

$

Not available

64

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

65

Toro 3-6021

Link Shift

$

$

Not available

66

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

67

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 3 left!

0

68

Toro 2-6700

Hub Cap

$

$

Currently unavailable

69

Toro 3-6006

Spindle Wheel

$

$

Not available

70

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

71

Toro 1-3899

Wheel Incl. Ref. #97

$

$

Currently unavailable

72

Toro 3-5955

TIRE

$

$

Not available

73

Toro 5-0744

WASHER

$

$

Not available

74

Toro 4-8540

Wheel Cover

$

$

Not available

75

Toro 3-2654

Bolt

$

$

Not available

76

Toro 3290-196

NUT

$8.49

$

Usually ships in 3-6 days

0

77

Toro 3-7395

Strap, Clamp

$

$

Currently unavailable

78

Toro 3-6031

Control Rod Traction

$

$

Not available

79

Toro 3-5975

Grommet

$

$

Currently unavailable

80

Toro 3-6018

Control Rod Upper Chute

$

$

Currently unavailable

81

Toro 233-11

Knob

$

$

Currently unavailable

82

Toro 3-6055

Grip

$

$

Currently unavailable

83

Toro 3-5595

Cover Plate

$

$

Currently unavailable

84

Toro 3-5707

Decal

$

$

Currently unavailable

85

Toro 5-3452

Control, Throttle Assy.

$

$

Not available

86

Toro 3-7382

Chain Guard

$

$

Currently unavailable

87

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

88

Toro 3-6312

Chain Guide

$

$

Not available

89

Toro 3290-227

Washer

$

$

Currently unavailable

90

Toro 221-291

Engine

$

$

Currently unavailable

91

Toro 3-7392

Chute

$

$

Currently unavailable

92

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

93

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 2 left!

0

94

Toro 3-6045

Pulley

$

$

Not available

95

Toro 3-6044

BELT

$

$

Not available

96

Toro 3-6301

Decal

$

$

Not available

97

Toro 3-3885

Clip

$

$

Currently unavailable

98

Toro 3-3927

Garter Spring

$

$

Not available

99

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

100

Toro 3-6046

Handle, Lower

$

$

Currently unavailable

101

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

102

Toro 3-6017

Lock Bracket

$

$

Not available

103

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 10

0

104

Toro 3290-187

Locknut

$

$

Currently unavailable

105

Toro 3246-3

SCREW-HSH

$12.99

$

Usually ships in 3-6 days

0

106

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

107

Toro 3-6424

Pivot Support

$

$

Currently unavailable

108

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

109

Toro 255-5

BALL-STEEL

$2.49

$

Usually ships in 3-6 days

0

110

Toro 2-4340

Spring

$

$

Currently unavailable

111

Toro 32120-41

5/8X039 EX HD RING

$

$

Currently unavailable

112

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

113

Toro 2-1640

Washer

$

$

Currently unavailable

114

Toro 3-3921

Drive Shaft

$

$

Not available

115

Toro 3-4066

BUSHING

$3.49

$

Usually ships in 3-6 days

0

116

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

117

Toro 3-1631

Sliding Jaw

$

$

Currently unavailable

118

Toro 3-1223

Thrust Washer

$

$

Currently unavailable

119

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, Qty 5

0
