31302 - Toro Snow Hound Snow Thrower (SN: 002000001 - 002999999) (1972) Carburetor No. 630958b Parts Diagram

Snow Hound Snow Thrower

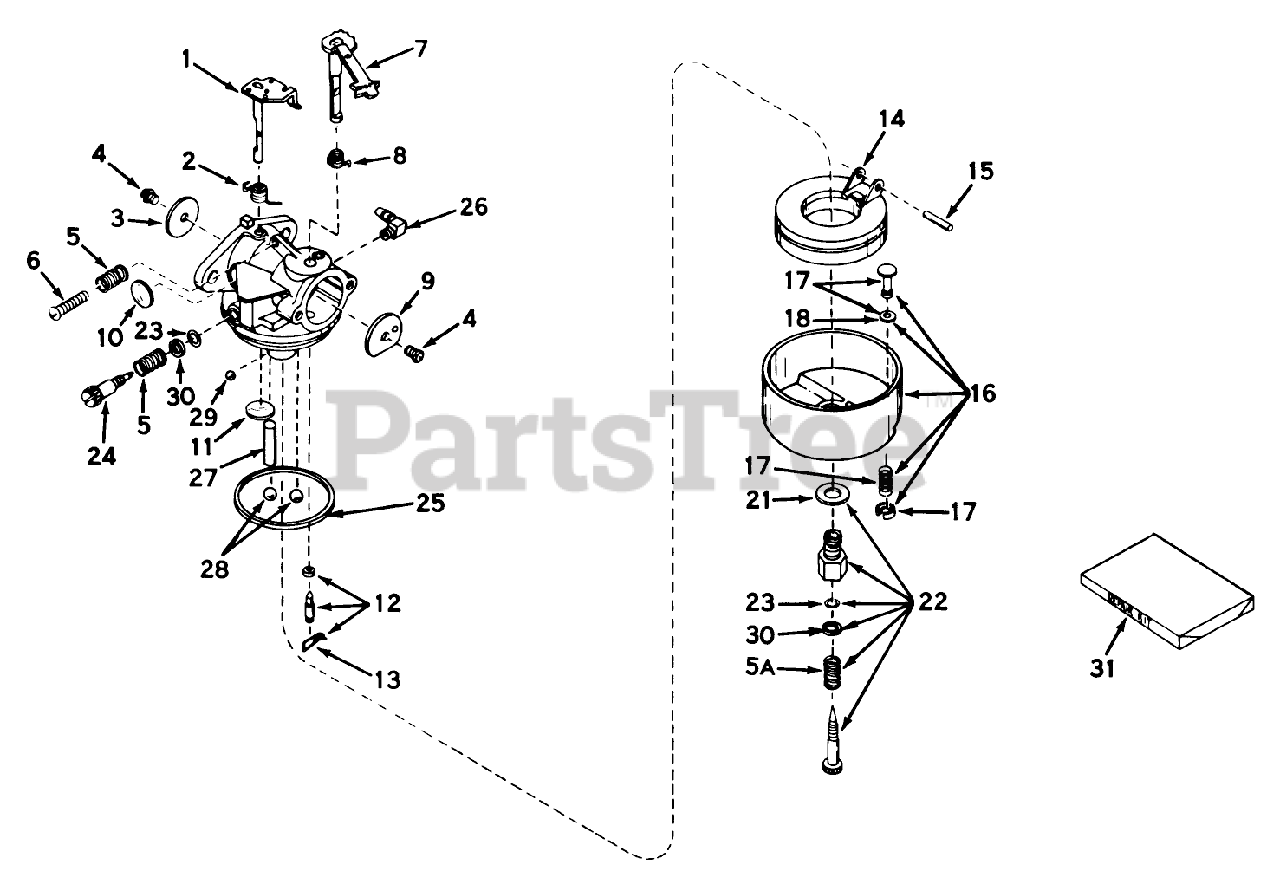

Carburetor No. 630958b Parts Diagram

  • Title

1

Toro 630983

Shaft Lever Assy.

$

$

Currently unavailable

2

Toro 631279

Spring, Throtte Return

$

$

Currently unavailable

3

Toro 631036

Shutter-Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

5A

Toro 630738

Spring

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 31841

Shaft Lever Ass-y Choke

$

$

Currently unavailable

8

Toro 630735

Spring-Positioning, Choke

$

$

Currently unavailable

9

Toro 31837

DISCONTINUED

$

$

Not available

10

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in repair kit part no. 31840.

$

$

Currently unavailable

11

Toro 631027

Plug-Welch, Atmospheric Vent

Note: Indicates items included in repair kit part no. 31840.

$

$

Currently unavailable

12

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

Note: Indicates items included in repair kit part no. 31840.

$

$

Currently unavailable

13

Toro 631022

Clip-Spring

$

$

Currently unavailable

14

Toro 631023

Float,Carburetor

$

$

Currently unavailable

15

Toro 631024

Shaft-Float

Note: Indicates items included in repair kit part no. 31840.

$

$

Currently unavailable

16

Toro 631025

Bowl Drain Assy., Float (Incl. No. 17)

$

$

Currently unavailable

17

Toro 27136A

Bowl Drain ASM

$

$

Currently unavailable

18

Toro 27554

Gasket-Plunger, Drain

Note: Indicates items included in repair kit part no. 31840.

$

$

Currently unavailable

21

Toro 27110

Washer-Bowl Nut

$

$

Currently unavailable

22

Toro 31839

Adjustment Screw Assy., Main (Incl. Nos. 5A, 21 23)

Note: Indicates items included in repair kit part no. 31840.

$

$

Currently unavailable

23

Toro 630740

ORing

Note: Indicates items included in repair kit part no. 31840.

$

$

Currently unavailable

24

Toro 631078

Screw, Idle Adj.

Note: Indicates items included in repair kit part no. 31840.

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

Note: Indicates items included in repair kit part no. 31840.

$

$

Currently unavailable

26

Toro 631038

Fitting Fuel Inlet

$

$

Currently unavailable

27

Toro 631039

Pin

$

$

Currently unavailable

28

Toro 630747

Plug, Cup

$

$

Currently unavailable

29

Toro 631081

BalI, Steel

$

$

Currently unavailable

30

Toro 630739

Washer

$

$

Currently unavailable

31

Toro 31840

Repair Kit (Incl. items marked *)

Note: Indicates items included in repair kit part no. 31840.

$

$

Currently unavailable
