31304 - Toro Snow Hound Snow Thrower (SN: 004000001 - 004999999) (1974) AUGER ASSEMBLY Parts Diagram

Snow Hound Snow Thrower

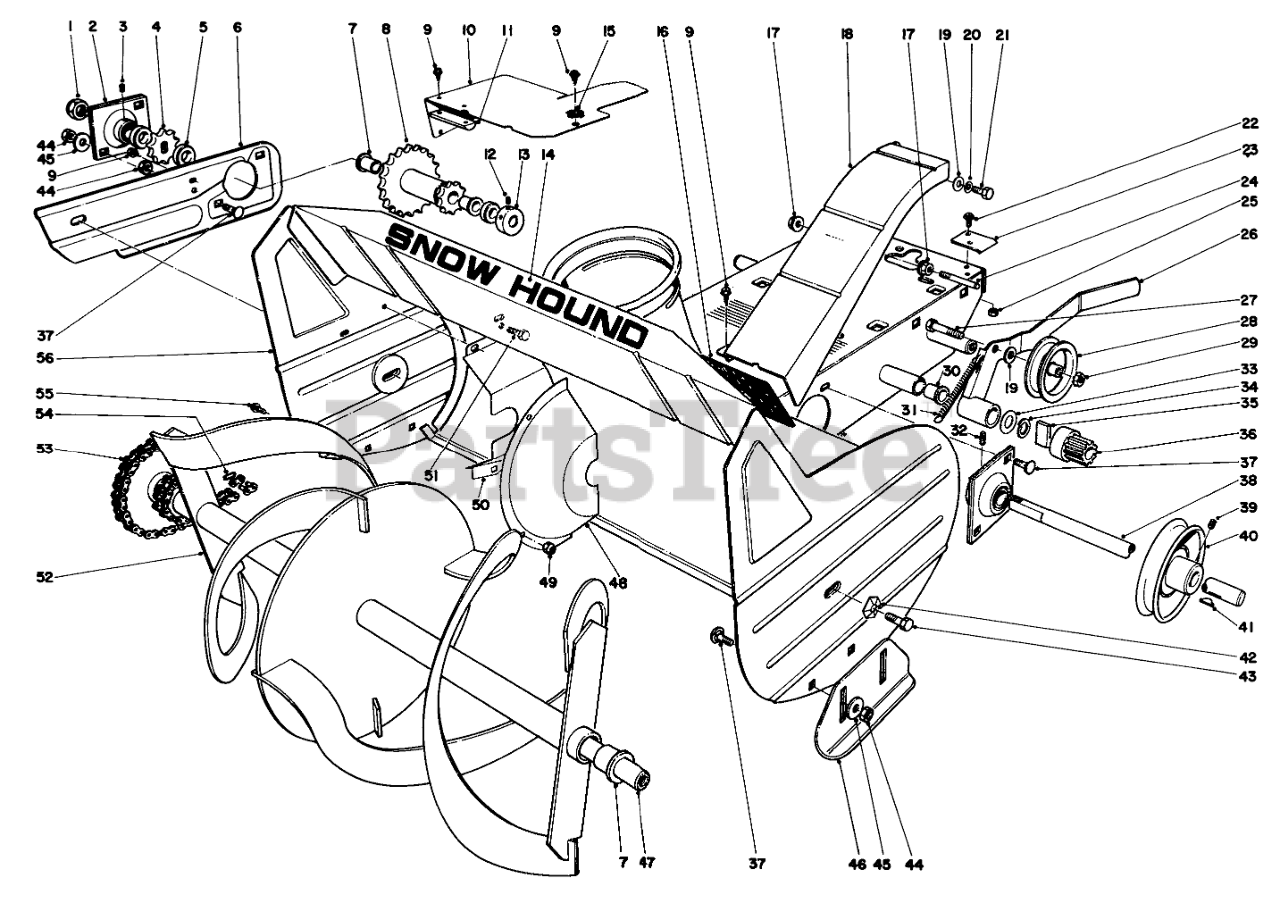

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

2

Toro 251-178

Bushing Flange Mounted

$

$

Not available

3

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

4

Toro 5-1076

Sprocket

$

$

Not available

5

Toro 3-7384

COSHAFT SPACER

$

$

Not available

6

Toro 3-7387

Support-Bearing

$

$

Not available

7

Toro 256-146

Bushing

$

$

Not available

8

Toro 3-7378

Sprocket (Incl. Ref. 7)

$

$

Not available

9

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

10

Toro 3-7382

Chain Guard

$

$

Currently unavailable

11

Toro 3-6312

Chain Guide

$

$

Not available

12

Toro 3246-3

SCREW-HSH

$12.99

$

Usually ships in 3-6 days

0

13

Toro 3-5315

Collar

$

$

Not available

14

Toro 11-5120

Decal

$

$

Not available

15

Toro 3290-227

Washer

$

$

Currently unavailable

16

Toro 10-2970

Decal
(Superseded to 94-2568)

$8.49

$

In Stock, only 3 left!

0

17

Toro 32128-14

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

18

Toro 20-3490

Shroud

$

$

Not available

19

Toro 32564

Washer

$

$

Currently unavailable

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

22

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

23

Toro 3-6017

Lock Bracket

$

$

Not available

24

Toro 3-6302

Guide Pin

$

$

Not available

25

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 10

0

26

Toro 20-3500

Belt Tightener

$

$

Not available

27

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

28

Toro 244-63

PULLEY B

$

$

Not available

29

Toro 321494

Nut

$

$

Currently unavailable

30

Toro 3-4066

BUSHING

$3.49

$

Usually ships in 3-6 days

0

31

Toro 3-6011

Spring, Tension

$

$

Not available

32

Toro 3241-2

SCREW-SQH
(Superseded to 3241-7)

$3.99

$

In Stock, Qty 5

0

33

Toro 5-1078

Washer

$

$

Not available

34

Toro 32120-91

Snap Ring

$

$

Currently unavailable

35

Toro 2-3620

RATCHET DOG

$

$

Not available

36

Toro 1-3669

Pinion Kit

$

$

Currently unavailable

37

Toro 3-5861

Bolt
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

38

Toro 3-7383

Drive Shaft

$

$

Not available

39

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

40

Toro 3-2590

Pulley

$

$

Not available

41

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

42

Toro 3290-224

LOCKWASHER-PYRAMID

$36.99

$

Usually ships in 3-6 days

0

43

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

44

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

45

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Toro 3-3866

Skid
(Superseded to 40-8160-01)

$23.99

$

In Stock, Qty 20+

0

47

Toro 3-5997

ROTOR SHAFT

$

$

Not available

48

Toro 3-7396

Guard-Rotor Chain

$

$

Not available

49

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

50

Toro 3-7397

Guard, Chain

$

$

Not available

51

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

52

Toro 3-7373

Rotor Assy. (Incl. Ref. 7)

$

$

Not available

53

Toro 3-6014

Chain

$

$

Not available

54

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

55

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

56

Toro 5-8559

Frame, Main (Incl. Ref.30 & 16)

$

$

Currently unavailable
