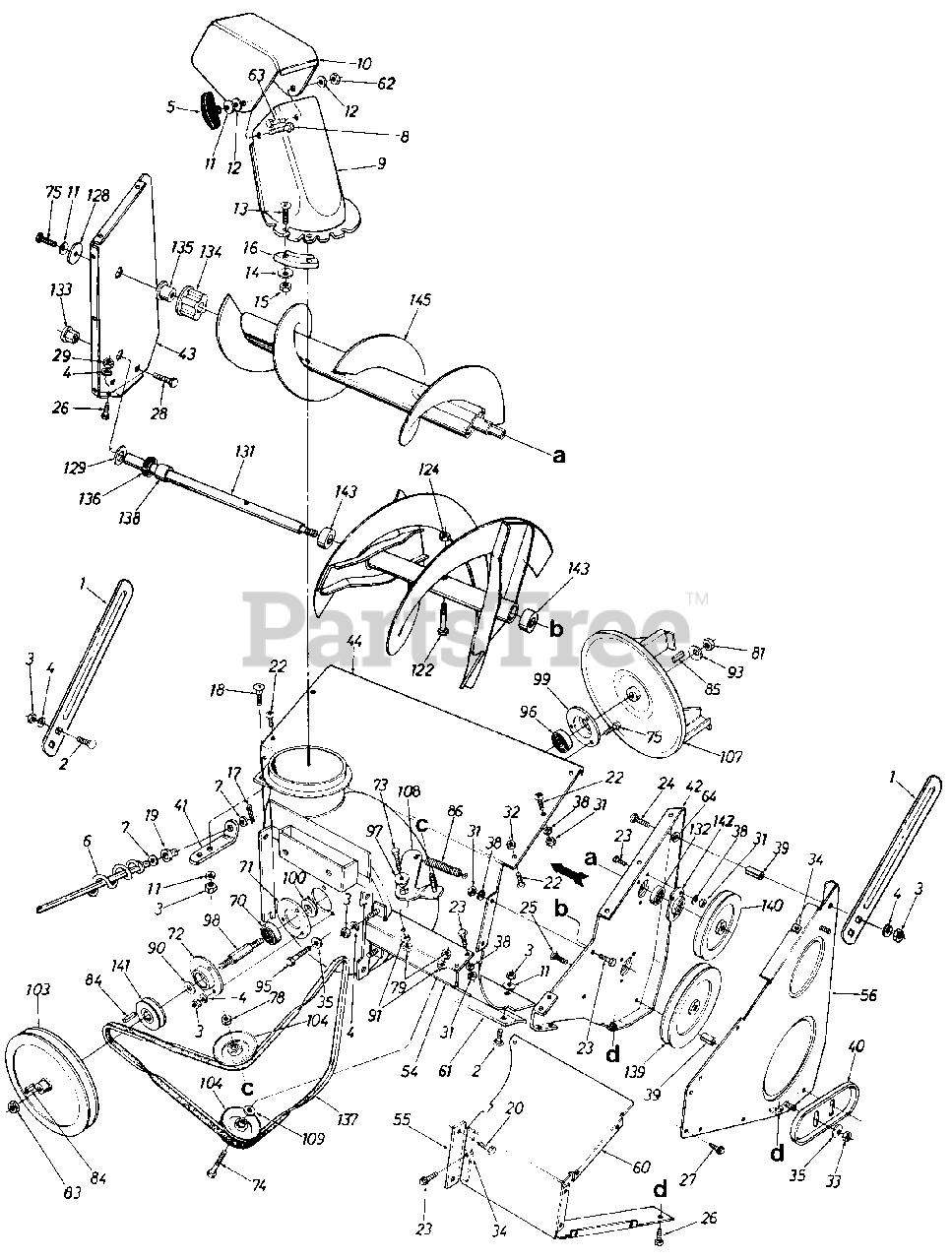

31383-7 - MTD Snow Thrower (1987) Snow Parts Diagram

Snow Thrower

Snow Parts Diagram

  • Title

1

MTD 05139

Guide Blade
(Superseded to 790-00181-0637)

$40.99

$

Usually ships in 3-6 days

0

2

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

5

MTD 09966

Hand Knob Ass'y.
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

6

MTD 05980

Chute Crank Ass'y.

$

$

Not available

7

MTD 736-0264

Fl-Wash. .385" I.D. x .62"

$6.49

$

In Stock, only 2 left!

0

8

MTD 710-0276

Carriage Bolt 5/16-18 x 1.0"

$3.99

$

In Stock, Qty 20+

0

9

MTD 731-0839

6" Dia. Lower Chute
(Superseded to 931-0840B)

$78.99

$

Usually ships in 3-6 days

0

10

MTD 731-0845

6.0 Dia. Upper Chute
(Superseded to 731-0846C)

$48.99

$

In Stock, only 1 left!

0

11

MTD 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .06

$3.99

$

In Stock, Qty 20+

0

12

MTD 736-0231

Fl-Wash. .344 I.D. x .125 O.D. x .125

$4.49

$

In Stock, only 4 left!

0

13

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 12

0

15

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

16

MTD 784-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$3.99

$

In Stock, Qty 20+

0

17

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

18

MTD 710-0451

Carriage Bolt 5/16-18 x .75'

$3.99

$

In Stock, Qty 20+

0

19

MTD 741-0475

Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-0600

Hex Self-Tap Scr. 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

22

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5"

$4.49

$

Usually ships in 3-6 days

0

23

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

24

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

25

MTD 710-0560

Carriage Bolt 3/8-16 x 1.75

$6.49

$

In Stock, Qty 17

0

26

MTD 710-0726

Hex Self-Tap Scr. 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

27

MTD 710-0653

Hex Self-Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

28

MTD 710-0790

Carriage Bolt 3/8-16 x .62"
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

29

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

31

MTD 712-0287

Hex Nut 5/16-18 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

32

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

33

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

34

MTD 712-0377

Speed Clip

$

$

Currently unavailable

35

MTD 736-0105

Bell-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

38

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

39

MTD 750-0434

Spacer .375 I.D. x 1" Lg.

$6.49

$

Usually ships in 3-6 days

0

40

MTD 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$26.99

$

In Stock, Qty 20+

0

41

MTD 784-5123

Chute Crank Brkt.
(Superseded to 784-5123-0637)

Variations

MTD 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

42

MTD 784-5350

Spiral Housing Plate R.H.

$

$

Not available

43

MTD 784-5351

Spiral Housing Plate L.H.

$

$

Not available

44

MTD 784-5352

24" Spiral Hsg. Ass'y.

Note: (31353)

$

$

Not available

MTD 784-5353

26" Spiral Hsg. Ass'y.

Note: (31383)

$

$

Currently unavailable

54

MTD 784-5362

V-Channel

Note: (31353)

$

$

Currently unavailable

MTD 784-5363

V-Channel

Note: (31383)

$

$

Not available

55

MTD 784-5360

Support Bracket

$

$

Currently unavailable

56

MTD 784-5373

Side Cover Ass'y.

$

$

Currently unavailable

60

MTD 784-5378

Belt Cover 6.42"

Note: (31353)

$

$

Not available

MTD 784-5379

Belt Cover 8.42"

Note: (31383)

$

$

Not available

61

MTD 705-5036

Shave Plate

Note: (31353)

Variations

MTD 705-5036-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 705-5037

Shave Plate

Note: (31383)

Variations

MTD 705-5037-0637

No Longer Available PLATE-SHAV - POWDER BLACK (0637)

$

$

Not available

$

$

62

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

63

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75"

$4.49

$

In Stock, only 2 left!

0

64

MTD 726-0201

Push Speed Nut

$6.49

$

In Stock, Qty 20+

0

70

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

71

MTD 14249

Spindle Reinforcement Plate

$

$

Not available

72

MTD 15297

Open Brg. Housing
(Superseded to 15297A)

Note: (Incl. Ref. 70)

$64.99

$

Usually ships in 3-6 days

0

73

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

74

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.49

$

In Stock, Qty 8

0

75

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 17

0

78

MTD 712-0116

Hex Ins. L-Nut 3/8-24

$4.49

$

In Stock, Qty 7

0

79

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

81

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

83

MTD 712-0923

Hex L-Nut 5/8-18 Thd.

$6.49

$

Usually ships in 3-6 days

0

84

MTD 714-0122

Sq. Key 3/16" x .75"

$3.49

$

In Stock, Qty 17

0

85

MTD 714-0133

Sq. Key 3/16" x 1.5"

$4.49

$

In Stock, Qty 12

0

86

MTD 732-0549

Ext. Spring 3/4 O.D. x 4" Lg.

$

$

Not available

90

MTD 736-0156

Fl-Wash. .635 I.D.

$3.99

$

In Stock, Qty 13

0

91

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

93

MTD 736-0317

Bell-Wash. .630

$7.49

$

In Stock, Qty 20+

0

95

MTD 738-0154

Shld. Bolt .50 Dia. x 2.11 Lg.

$

$

Not available

96

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

97

MTD 738-0347

Shld. Spacer .625 I.D.
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 13

0

98

MTD 738-0687

Fan Spindle

$

$

Not available

99

MTD 741-0163

Bearing Hsg. Ass'y.
(Superseded to 741-0163A)

Note: (Incl. Ref. 96)

$45.99

$

Usually ships in 3-6 days

0

100

MTD 750-0674

Spacer .790 I.D.

$

$

Currently unavailable

103

MTD 756-0478

5/8 V-Pulley 7.5" O.D.

$

$

Not available

104

MTD 756-0499

V-Idler Pulley 3.5" O.D.
(Superseded to 956-0399)

$47.99

$

In Stock, Qty 5

0

107

MTD 784-5367

11" Dia. Blower Fan Ass'y.

$

$

Currently unavailable

108

MTD 784-5377

Idler Bracket Ass'y.

$

$

Not available

109

MTD 736-0320

Fl-Wash. .40 I.D.

$6.49

$

In Stock, Qty 9

0

122

MTD 710-0890

Shear Bolt 5/16-18 x 1.5"
(Superseded to 710-0890A)

$1.99

$

In Stock, Qty 20+

0

124

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

128

MTD 736-0362

Flat Washer .32" I.D.

$4.49

$

In Stock, Qty 20+

0

129

MTD 736-0401

Fl-Wash. .76" I.D.

$

$

Not available

131

MTD 738-0715

Spindle Shaft

Note: (31353)

$

$

Currently unavailable

MTD 738-0716

Spindle Shaft

Note: (31383)

$

$

Currently unavailable

132

MTD 741-0155

Ball Brg. .62 I.D.
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

133

MTD 741-0245

Hex Flange Brg.
(Superseded to 941-0245)

$9.49

$

In Stock, Qty 20+

0

134

MTD 741-0477

Tubing Support Brg.

$

$

Currently unavailable

135

MTD 748-0310

Shaft Pin

$

$

Not available

136

MTD 750-0678

Spacer 1.25 I.D. x 1.5

$

$

Currently unavailable

137

MTD 754-0338

V-Belt
(Superseded to 954-0338)

Note: (31353)

$61.99

$

In Stock, only 2 left!

0

MTD 754-0339

V-Belt
(Superseded to 954-0339A)

Note: (31383)

$71.99

$

Usually ships in 3-6 days

0

138

MTD 750-0696

Spacer

Note: (31383 Only)

$

$

Not available

139

MTD 756-0497

1/2 V-Pulley 9" O.D.

$

$

Currently unavailable

140

MTD 756-0498

1/2 V-Pulley 5.5" O.D.

$

$

Not available

141

MTD 756-0500

1/2 V-Pulley 2.75"

Note: (31353)

$

$

Not available

MTD 756-0495

1/2 V-Pulley 3"

Note: (31383)

$

$

Not available

142

MTD 784-0211

Bearing Housing

$

$

Not available

143

MTD 741-0401

Sleeve Brg. .75 I.D.
(Superseded to 941-0401)

$6.99

$

In Stock, Qty 14

0

MTD 784-5370

10" Spiral Ass'y. R.H.

$

$

Currently unavailable

MTD 784-5369

10" Spiral Ass'y. L.H.

Note: (Not Shown)

$

$

Currently unavailable

145

MTD 784-5374

24" Auger Ass'y.

Note: (31353)

$

$

Currently unavailable

MTD 784-5375

26" Auger Ass'y.

Note: (31383)

$

$

Not available
