31411 - Toro Snow Pup Snow Thrower (SN: 001000001 - 001999999) (1971) Upper Main Frame Parts Diagram

Snow Pup Snow Thrower

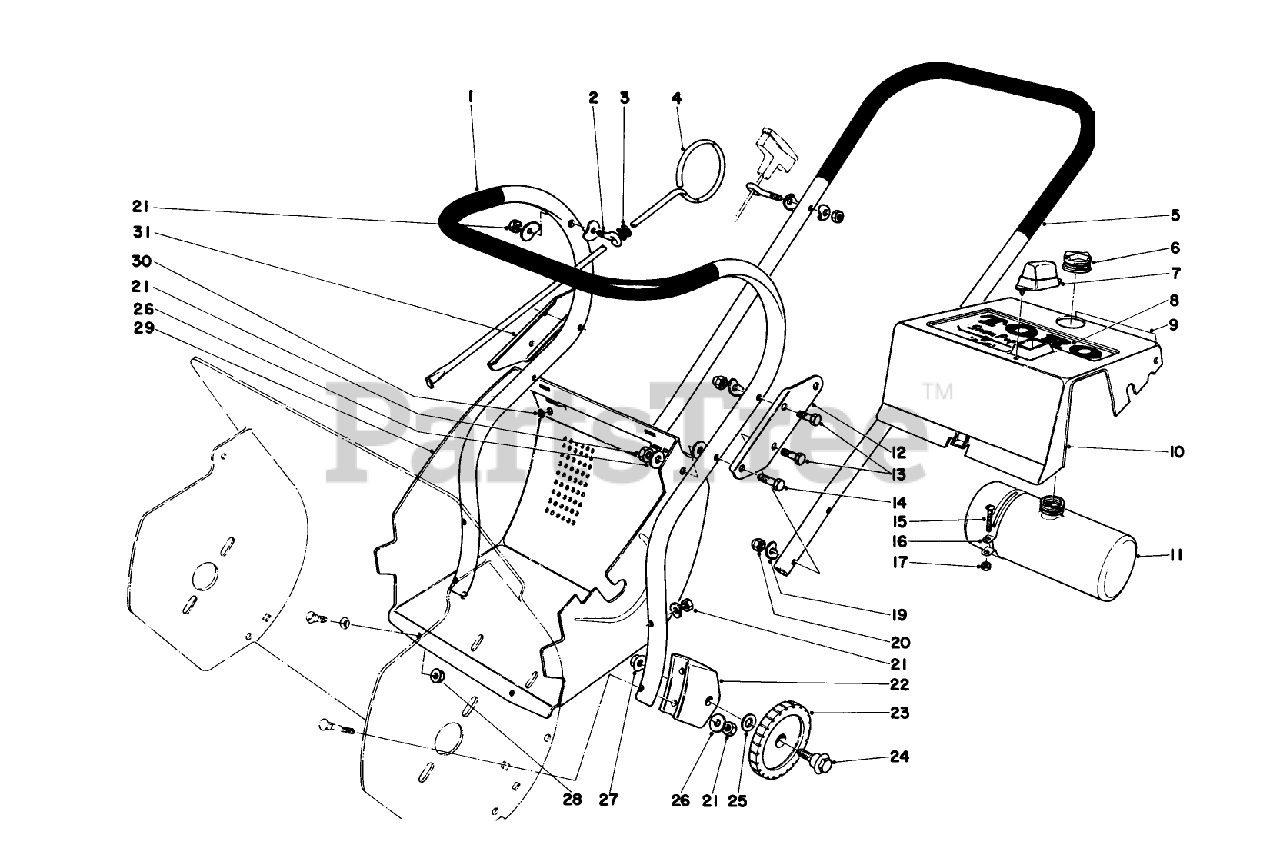

Upper Main Frame Parts Diagram

  • Title

1

Toro 4-1479

See Supercession: 33-4480
(Superseded to 33-4480)

$

$

Not available

2

Toro 3-9278

See Supercession: 52-7120
(Superseded to 52-7120)

$

$

Not available

3

Toro 237-73

DISCONTINUED

$

$

Not available

4

Toro 5-3371

DISCONTINUED

$

$

Not available

5

Toro 4-1509

Handle Upper

$

$

Currently unavailable

6

Toro 222-17

See Supercession: 42-0680
(Superseded to 42-0680)

$

$

Not available

7

Toro 5-0452

DISCONTINUED

$

$

Not available

8

Toro 5-3428

Decal

$

$

Currently unavailable

9

Toro 5-3435

Decal

$

$

Currently unavailable

10

Toro 34949

Upper Shroud (Incl. Ref. #7)

$

$

Currently unavailable

11

Toro 8-9830

See Supercession: 42-3970
(Superseded to 42-3970)

$

$

Not available

12

Toro 3-7503

DISCONTINUED

$

$

Not available

13

Toro 321-26

See Supercession: 321-7
(Superseded to 321-7)

$5.49

$

In Stock, Qty 18

0

14

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

15

Toro 3251-12

10-24 X 1 RND HD MS

$0.99

$

Usually ships in 3-6 days

0

16

Toro 2412-24

1/2 GAS TANK CLAMP

$

$

Not available

17

Toro 32107-6

NUT-SQ

$

$

Currently unavailable

19

Toro 3-7501

WASHER

$6.99

$

In Stock, only 4 left!

0

20

Toro 32111-7

NUT-CAP

$8.49

$

In Stock, only 2 left!

0

21

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3-9326

Bracket Wheel

$

$

Currently unavailable

23

Toro 3-9322

DISCONTINUED

$

$

Not available

24

Toro 3-9323

Bolt-Shoulder

$

$

Currently unavailable

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

26

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

27

Toro 32128-16

NUT-HHF

$0.99

$

In Stock, only 3 left!

0

28

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 11

0

29

Toro 5-2459

DISCONTINUED

$

$

Not available

30

Toro 3290-351

DISCONTINUED

$

$

Not available

31

Toro 3-7504

DISCONTINUED

$

$

Not available

8

Toro 5-3427

Decal

$

$

Currently unavailable
