31411 - Toro Snow Pup Snow Thrower (SN: 008000001 - 008999999) (1968) Carburetor Model No. 631394 Parts Diagram

Snow Pup Snow Thrower

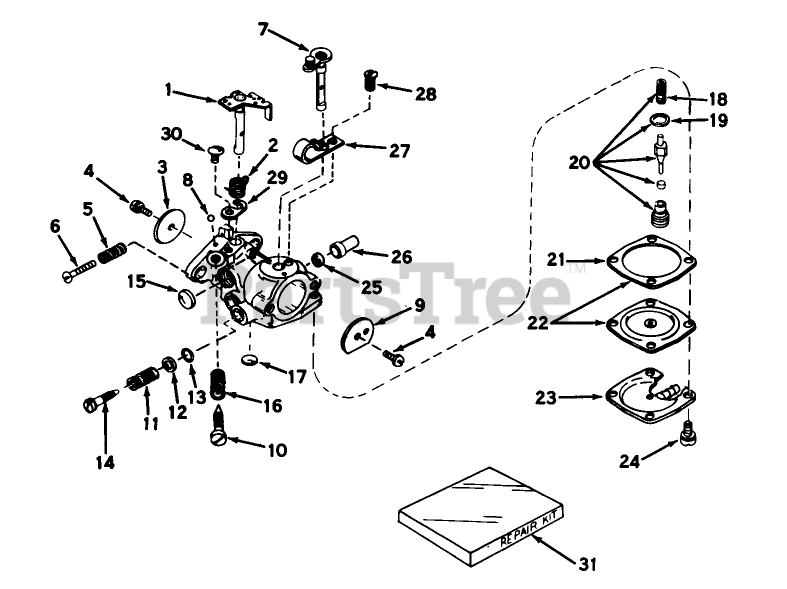

Carburetor Model No. 631394 Parts Diagram

  • Title

1

Toro 631385

Shaft Lever Assy., Throttle

$

$

Currently unavailable

2

Toro 631066

Spring Return

$

$

Currently unavailable

3

Toro 630733

Shutter, Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 631130

Shaft Lever Assy., Choke

$

$

Currently unavailable

8

Toro 631335

Shot, Lead

$

$

Currently unavailable

9

Toro 31837

DISCONTINUED

$

$

Not available

10

Toro 631387

Screw, Idle Adjustment

$

$

Currently unavailable

11

Toro 630738

Spring

$

$

Currently unavailable

12

Toro 630739

Washer

$

$

Currently unavailable

13

Toro 630740

ORing

Note: Indicates Items Included in Repair Kit part no. 631389.

$

$

Currently unavailable

14

Toro 630898

Screw Main Adjustment

$

$

Currently unavailable

15

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Indicates Items Included in Repair Kit part no. 631389.

$

$

Currently unavailable

16

Toro 631345

Spring, IdleAdjustm. Screw

$

$

Currently unavailable

17

Toro 630746

Plug Welch

Note: Indicates Items Included in Repair Kit part no. 631389.

$

$

Currently unavailable

18

Toro 631049

Spring-Valve

$

$

Currently unavailable

19

Toro 630742

Gasket-Valve Seat

$

$

Currently unavailable

20

Toro 631388

Inlet Needle, Seat, Spring Gasket Assy. (Incl. Nos. 18 19)

Note: Indicates Items Included in Repair Kit part no. 631389.

$

$

Currently unavailable

21

Toro 630750

Gasket-Diaphragm

$

$

Currently unavailable

22

Toro 630978

Diaphragm Ass. (Incl. No. 21)

Note: Indicates Items Included in Repair Kit part no. 631389.

$

$

Currently unavailable

23

Toro 32185

63561/33165A O"HITC

$3.23

$

Usually ships in 3-6 days

0

24

Toro 650545

Screw, Diaphragm Cover

$

$

Currently unavailable

25

Toro 631201

Valve Check

$

$

Currently unavailable

26

Toro 32249

Fitting, Fuel Inlet

$

$

Currently unavailable

27

Toro 631048

Spring, Detent

$

$

Currently unavailable

28

Toro 650569

Screw Detent spring

$

$

Currently unavailable

29

Toro 630955

Retainer, Throttle Shaft

$

$

Currently unavailable

30

Toro 650569

Screw Detent spring

$

$

Currently unavailable

31

Toro 631389

Repair Kit

$

$

Currently unavailable
