31411 - Toro Snow Pup Snow Thrower (SN: 008000001 - 008999999) (1968)

Snow Pup Snow Thrower

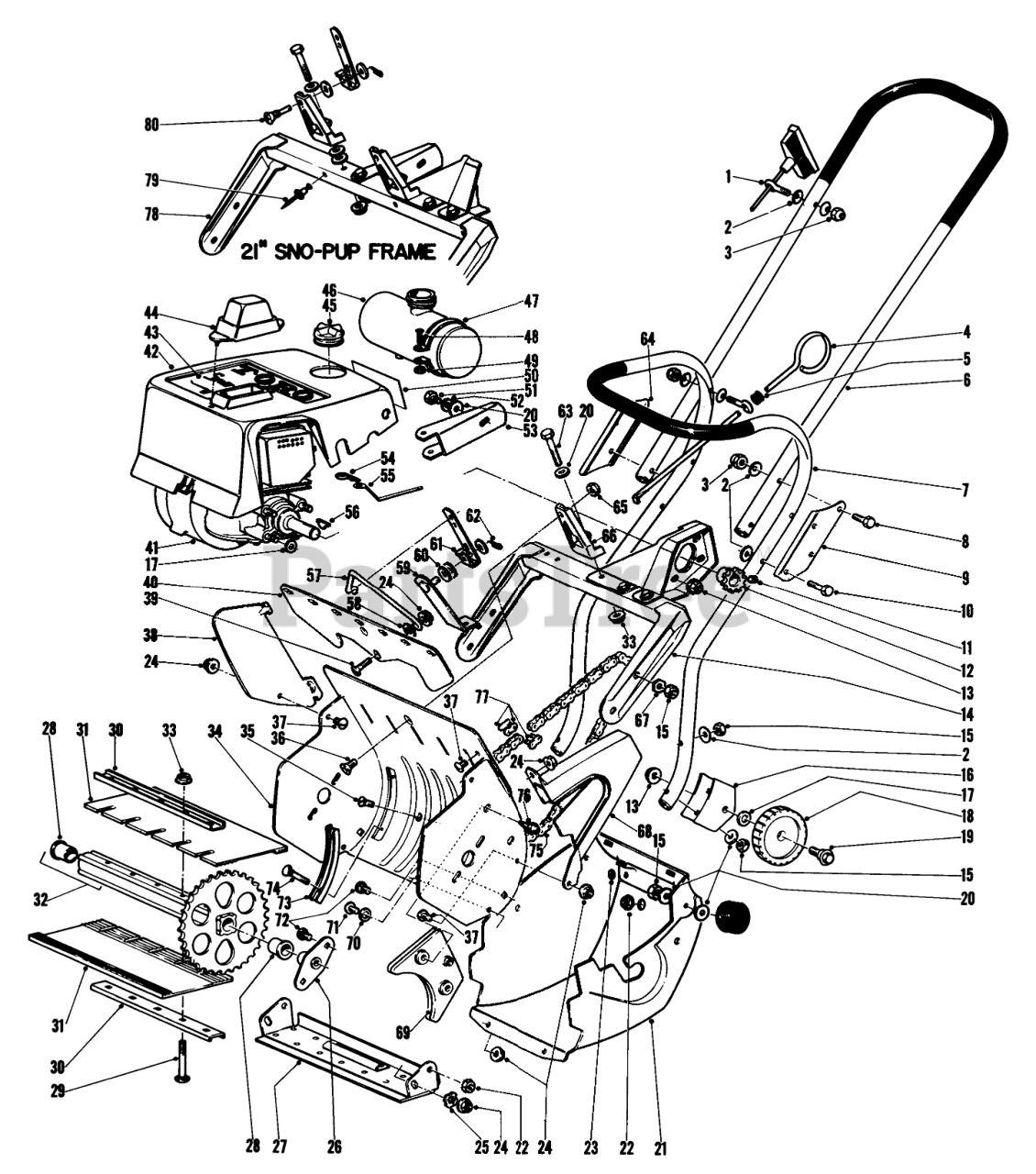

31411 - Toro Snow Pup Snow Thrower (SN: 008000001 - 008999999) (1968) > Parts Diagrams (5) > MAIN FRAME

  • Title
3-9278

1

Bolt-Eye

Part# 3-9278 (Superseded to 52-7120)

OEM Warranty Repair Part for Toro

Not available

3-7501

2

WASHER

Part# 3-7501

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.46

32111-7

3

NUT-CAP

Part# 32111-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.58

5-3371

4

Vane Adj. Rod

Part# 5-3371

OEM Warranty Repair Part for Toro

Not available

237-73

5

GROMMET

Part# 237-73

OEM Warranty Repair Part for Toro

Not available

4-1509

6

Handle Upper

Part# 4-1509

OEM Warranty Repair Part for Toro

Currently unavailable

4-1479

7

Handle Lower

Part# 4-1479 (Superseded to 33-4480)

OEM Warranty Repair Part for Toro

Not available

32140-46

8

Screw

Part# 32140-46

OEM Warranty Repair Part for Toro

Currently unavailable

3-7503

9

SPLICE PLATE

Part# 3-7503

OEM Warranty Repair Part for Toro

Not available

32140-47

10

Screw

Part# 32140-47

OEM Warranty Repair Part for Toro

Currently unavailable

3245-1

11

SCREW-SET, HSH

Part# 3245-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.26

3-9464

12

SPROCKET

Part# 3-9464

OEM Warranty Repair Part for Toro

Not available

32128-16

13

NUT-HHF

Part# 32128-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.01

5-3394

14

Frame Assembly

Part# 5-3394

OEM Warranty Repair Part for Toro

Currently unavailable

32146-8

15

Nut

Part# 32146-8 (Superseded to 32153-4)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.99

3-9326

16

Bracket Wheel

Part# 3-9326

OEM Warranty Repair Part for Toro

Currently unavailable

3256-23

17

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

3-9322

18

Wheel

Part# 3-9322

OEM Warranty Repair Part for Toro

Not available

3-9323

19

Bolt-Shoulder

Part# 3-9323

OEM Warranty Repair Part for Toro

Currently unavailable

3256-2

20

WASHER-FLAT

Part# 3256-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.45

5-3387

21

Shroud, Lower

Part# 5-3387

OEM Warranty Repair Part for Toro

Currently unavailable

32149-2

22

NUT-KEPS

Part# 32149-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.16

3290-351

23

SNO PUP PLATED EYELET

Part# 3290-351

OEM Warranty Repair Part for Toro

Not available

32128-17

24

NUT-LOCK, FLANGE

Part# 32128-17

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.32

3290-261

25

Washer

Part# 3290-261

OEM Warranty Repair Part for Toro

Currently unavailable

3-9273

26

Rotor Shaft Assy.

Part# 3-9273

OEM Warranty Repair Part for Toro

Not available

3-7491

27

Skid, Riveted Assy.

Part# 3-7491 (Superseded to 37-1200)

OEM Warranty Repair Part for Toro

Not available

3-9271

28

Bushing

Part# 3-9271

OEM Warranty Repair Part for Toro

Not available

3-7521

30

Reinforcing Strap

Part# 3-7521

OEM Warranty Repair Part for Toro

Currently unavailable

3-9325

31

Blade-Rotor

Part# 3-9325

OEM Warranty Repair Part for Toro

Not available

3-9272

32

Sprocket & Tube W.A. Incl. #37

Part# 3-9272

OEM Warranty Repair Part for Toro

Not available

3-7486

34

Housing

Part# 3-7486

OEM Warranty Repair Part for Toro

Currently unavailable

32108-92

35

Screw

Part# 32108-92

OEM Warranty Repair Part for Toro

Currently unavailable

32108-94

36

5/16-18X5/8 FLT HD MS

Part# 32108-94

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.67

32122-30

37

SCREW-PTH

Part# 32122-30

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

32108-91

39

10-24X1-1/8 FLT HD MS

Part# 32108-91

OEM Warranty Repair Part for Toro

Currently unavailable

3-9276

40

Mount Vane

Part# 3-9276

OEM Warranty Repair Part for Toro

Not available

221-289

41

Engine

Part# 221-289

OEM Warranty Repair Part for Toro

Currently unavailable

3-4949

42

Shroud Incl. Ref. #7

Part# 3-4949

OEM Warranty Repair Part for Toro

Currently unavailable

5-3427

43

Decal

Part# 5-3427

OEM Warranty Repair Part for Toro

Currently unavailable

5-0452

44

Boot

Part# 5-0452

OEM Warranty Repair Part for Toro

Not available

222-17

45

Gas Cap

Part# 222-17 (Superseded to 42-0680)

OEM Warranty Repair Part for Toro

Not available

5-3385

46

Gas Tank Assy. Incl. Ref. #45

Part# 5-3385 (Superseded to 42-3970)

OEM Warranty Repair Part for Toro

Not available

2412-24

47

1/2 GAS TANK CLAMP

Part# 2412-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.18

3251-12

48

10-24 X 1 RND HD MS

Part# 3251-12

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.32

32107-6

49

NUT-SQ

Part# 32107-6

OEM Warranty Repair Part for Toro

Currently unavailable

5-3435

50

Decal

Part# 5-3435

OEM Warranty Repair Part for Toro

Currently unavailable

321-3

51

SCREW-HH

Part# 321-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.97

3255-7

52

WASHER-LOCK/EXT

Part# 3255-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.48

3-7487

53

Bracket

Part# 3-7487

OEM Warranty Repair Part for Toro

Not available

3290-268

54

Cotter Pin

Part# 3290-268

OEM Warranty Repair Part for Toro

Not available

3-9305

55

Choke, Strap

Part# 3-9305

OEM Warranty Repair Part for Toro

Not available

3257-31

56

Key

Part# 3257-31

OEM Warranty Repair Part for Toro

Currently unavailable

5-3381

57

Linkage Vane Adj.

Part# 5-3381

OEM Warranty Repair Part for Toro

Currently unavailable

3256-1

58

WASHER-FLAT

Part# 3256-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.78

5-3392

59

Vane Adj. Bracket

Part# 5-3392

OEM Warranty Repair Part for Toro

Currently unavailable

3256-22

60

WASHER-FLAT

Part# 3256-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.13

5-3372

61

Bracket-Vane Adj.

Part# 5-3372 (Superseded to 28-7870)

OEM Warranty Repair Part for Toro

Not available

3272-1

62

PIN-COTTER

Part# 3272-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.26

321-10

63

SCREW-HH

Part# 321-10

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.91

3-7504

64

Plate-Splice

Part# 3-7504

OEM Warranty Repair Part for Toro

Not available

3290-257

67

Washer

Part# 3290-257

OEM Warranty Repair Part for Toro

Not available

3-7496

68

Chain Guard

Part# 3-7496 (Superseded to 29-5780)

OEM Warranty Repair Part for Toro

Not available

5-0997

69

Stripper

Part# 5-0997

OEM Warranty Repair Part for Toro

Not available

3-1032

70

Washer

Part# 3-1032 (Superseded to 3256-22)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.13

32104-81

71

SCREW-HEAD, PAN

Part# 32104-81

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.13

3229-22

72

SCREW-CARRIAGE

Part# 3229-22 (Superseded to 3229-11)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.91

3-7498

73

Handle Plate

Part# 3-7498

OEM Warranty Repair Part for Toro

Not available

3229-4

74

SCREW-CARR

Part# 3229-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

3-7495

75

CHAIN

Part# 3-7495

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $112.59

32104-75

76

Screw

Part# 32104-75 (Superseded to 32144-34)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.05

2710-31

77

LINK-CONNECTING, NO. 35

Part# 2710-31

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.44

3-9477

Skid Riveted Assembly

Part# 3-9477 (Superseded to 38-5260)

Note: Not Illustrated.

OEM Warranty Repair Part for Toro

Not available

3-7575

29

Bolt

Part# 3-7575

OEM Warranty Repair Part for Toro

Currently unavailable

3-9475

Strap-Reinforcing

Part# 3-9475

Note: Not Illustrated.

OEM Warranty Repair Part for Toro

Currently unavailable

3-9466

Blade-Rotor

Part# 3-9466

Note: Not Illustrated.

OEM Warranty Repair Part for Toro

Not available

3-9473

Sprocket & Tube (Incl. Ref. #42)

Part# 3-9473

Note: Not Illustrated.

OEM Warranty Repair Part for Toro

Not available

3-7544

33

Nut

Part# 3-7544 (Superseded to 32128-10)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.35

5-3386

Housing

Part# 5-3386

Note: Not Illustrated.

OEM Warranty Repair Part for Toro

Not available

3-9283

38

Vane

Part# 3-9283 (Superseded to 52-7060)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.08

3-9483

Mount-Vane

Part# 3-9483

Note: Not Illustrated.

OEM Warranty Repair Part for Toro

Not available

221-290

Engine

Part# 221-290

Note: Not Illustrated.

OEM Warranty Repair Part for Toro

Currently unavailable

5-3428

43

Decal

Part# 5-3428

OEM Warranty Repair Part for Toro

Currently unavailable

0222-17

45

Gas Cap

Part# 0222-17

OEM Warranty Repair Part for Toro

Currently unavailable

5-3373

Linkage Vane Adj.

Part# 5-3373

Note: Not Illustrated.

OEM Warranty Repair Part for Toro

Currently unavailable

3256-0

58

Washer

Part# 3256-0

OEM Warranty Repair Part for Toro

Currently unavailable

3296-47

65

NUT-LOCK, NI

Part# 3296-47

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.19

3-7477

66

Stiffener

Part# 3-7477

OEM Warranty Repair Part for Toro

Currently unavailable

5-3396

78

Frame Assy.

Part# 5-3396

OEM Warranty Repair Part for Toro

Not available

3290-278

79

RIVET

Part# 3290-278 (Superseded to 3290-412)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

5-3426

80

Screw

Part# 5-3426

OEM Warranty Repair Part for Toro

Currently unavailable
