31412 - Toro Snow Pup Snow Thrower (SN: 002000001 - 002999999) (1972) Carburetor Model No. 631394 Parts Diagram

Snow Pup Snow Thrower

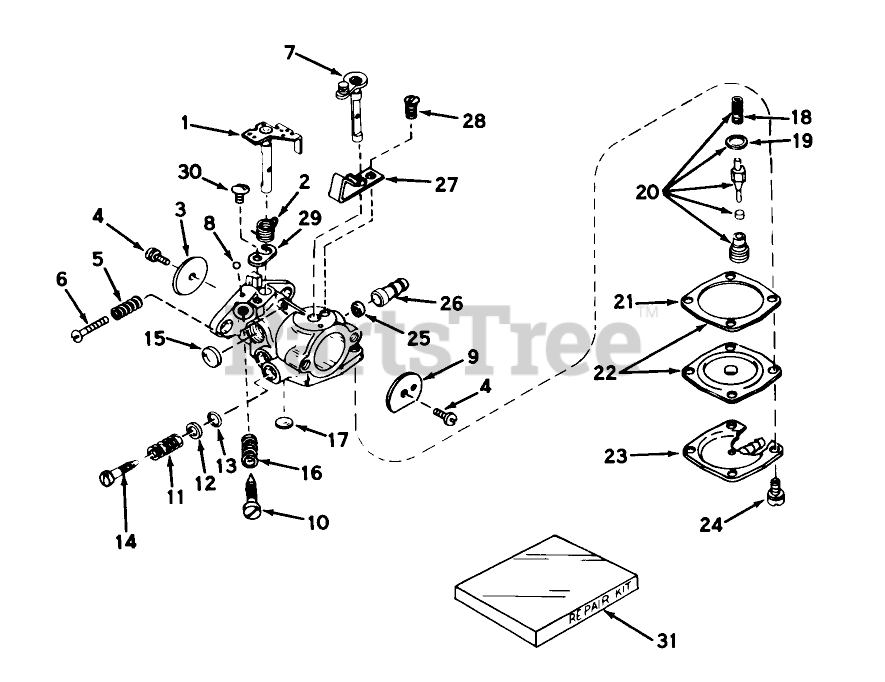

Carburetor Model No. 631394 Parts Diagram

  • Title

1

Toro 631385

Shaft Lever Assy., Throttle

$

$

Currently unavailable

2

Toro 631066

Spring Return

$

$

Currently unavailable

3

Toro 630733

Shutter, Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 631130

Shaft Lever Assy., Choke

$

$

Currently unavailable

8

Toro 631335

Shot, Lead

$

$

Currently unavailable

9

Toro 31837

DISCONTINUED

$

$

Not available

10

Toro 631387

Screw, Idle Adjustment

$

$

Currently unavailable

11

Toro 630738

Spring

$

$

Currently unavailable

12

Toro 630739

Washer

$

$

Currently unavailable

13

Toro 630740

ORing

Note: Included in Repair Kit Ref Num 31

$

$

Currently unavailable

14

Toro 630898

Screw Main Adjustment

$

$

Currently unavailable

15

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Included in Repair Kit Ref Num 31

$

$

Currently unavailable

16

Toro 631345

Spring, IdleAdjustm. Screw

$

$

Currently unavailable

17

Toro 630746

Plug Welch

Note: Included in Repair Kit Ref Num 31

$

$

Currently unavailable

18

Toro 631049

Spring-Valve

$

$

Currently unavailable

19

Toro 630742

Gasket-Valve Seat

$

$

Currently unavailable

20

Toro 631388

Inlet Needle, Seat, Spring Gasket Assy. (Incl. Nos. 18 19)

Note: Included in Repair Kit Ref Num 31

$

$

Currently unavailable

21

Toro 630750

Gasket-Diaphragm

$

$

Currently unavailable

22

Toro 630978

Diaphragm Ass. (Incl. No. 21)

Note: Included in Repair Kit Ref Num 31

$

$

Currently unavailable

23

Toro 32185

63561/33165A O"HITC

$3.23

$

Usually ships in 3-6 days

0

24

Toro 650545

Screw, Diaphragm Cover

$

$

Currently unavailable

25

Toro 631201

Valve Check

$

$

Currently unavailable

26

Toro 31838

Fitting, Fuel inlet

$

$

Currently unavailable

27

Toro 631048

Spring, Detent

$

$

Currently unavailable

28

Toro 650569

Screw Detent spring

$

$

Currently unavailable

29

Toro 630955

Retainer, Throttle Shaft

$

$

Currently unavailable

30

Toro 650569

Screw Detent spring

$

$

Currently unavailable

31

Toro 631389

Repair Kit

Note: Included in Repair Kit Ref Num 31

$

$

Currently unavailable

1

Toro 610591

Dust Cover Spring

$

$

Currently unavailable

2

Toro 610589

Dust Cover

$

$

Not available

3

Toro 610590

Dust Cover Gasket

$

$

Not available

4

Toro 610587

Hose-Primer 209543
(Superseded to 705590)

$

$

Not available

5

Toro 610657

Coil Assy.

$

$

Currently unavailable

6

Toro 610585

Gasket 209542
(Superseded to 705589)

$

$

Not available

7

Toro 610593

Condenser Screw

$

$

Currently unavailable

8

Toro 610588

Condenser Assy.
(Superseded to 705591)

$

$

Not available

9

Toro 610594

Sealing Washer

$

$

Currently unavailable

10

Toro 610658

STRAP S

$29.99

$

Usually ships in 3-6 days

0

11

Toro 610660

RETAINER WASHER

$4.49

$

In Stock, Qty 19

0

12

Toro 610249

Fuel Hose
(Superseded to 702256)

$

$

Not available

13

Toro 610251

Fuel Tank
(Superseded to 742872)

$

$

Not available

14

Toro 610274

Flatwasher

$

$

Not available

15

Toro 610385

Washer

$

$

Currently unavailable

16

Toro 610408

DECAL

$

$

Not available

17

Toro 610592

Cam Felt

$

$

Currently unavailable
