31412 - Toro Snow Pup Snow Thrower (SN: 004000001 - 004999999) (1974) Carburetor No. 631654a Parts Diagram

Snow Pup Snow Thrower

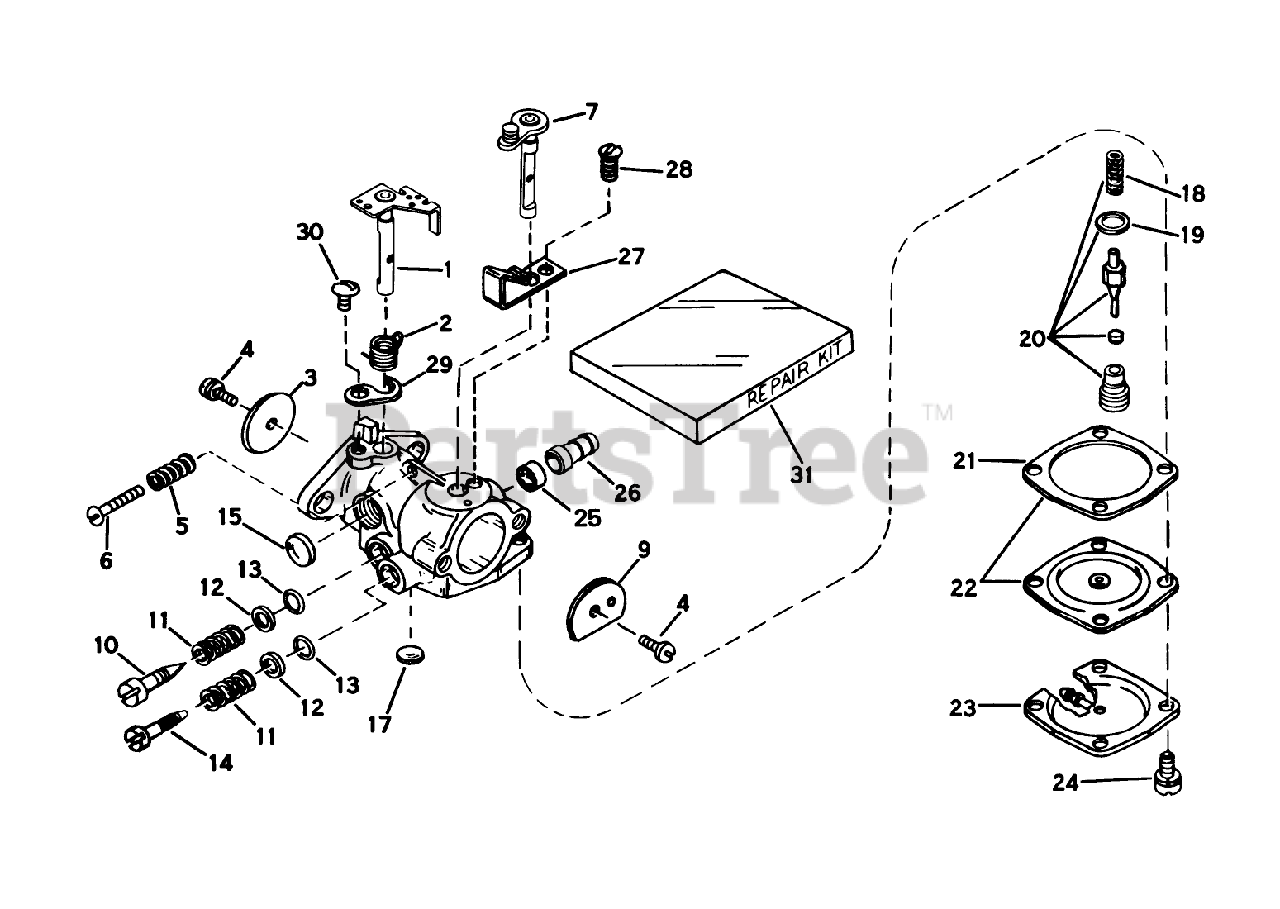

Carburetor No. 631654a Parts Diagram

  • Title

1

Toro 631385

Shaft Lever Assy., Throttle

$

$

Currently unavailable

2

Toro 631066

Spring Return

$

$

Currently unavailable

3

Toro 630733

Shutter, Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 631130

Shaft Lever Assy., Choke

$

$

Currently unavailable

9

Toro 31837

DISCONTINUED

$

$

Not available

10

Toro 631562

Screw-Idle Adjustment

$

$

Currently unavailable

11

Toro 630738

Spring

$

$

Currently unavailable

12

Toro 630739

Washer

$

$

Currently unavailable

13

Toro 630740

ORing

Note: Indicates items included in Repair Kit part no. 631770.

$

$

Currently unavailable

14

Toro 630898

Screw Main Adjustment

$

$

Currently unavailable

15

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in Repair Kit part no. 631770.

$

$

Currently unavailable

17

Toro 630746

Plug Welch

Note: Indicates items included in Repair Kit part no. 631770.

$

$

Currently unavailable

18

Toro 631049

Spring-Valve

$

$

Currently unavailable

19

Toro 630742

Gasket-Valve Seat

$

$

Currently unavailable

20

Toro 631769

Inlet Needle, Seat, Spring Gasket Assy. (Incl. Nos. 18 19)

Note: Indicates items included in Repair Kit part no. 631770.

$

$

Currently unavailable

21

Toro 630750

Gasket-Diaphragm

$

$

Currently unavailable

22

Toro 630978

Diaphragm Ass. (Incl. No. 21)

Note: Indicates items included in Repair Kit part no. 631770.

$

$

Currently unavailable

23

Toro 631653

Cover, Diaphragm

$

$

Currently unavailable

24

Toro 650545

Screw, Diaphragm Cover

$

$

Currently unavailable

25

Toro 631201

Valve Check

$

$

Currently unavailable

26

Toro 31838

Fitting, Fuel inlet

$

$

Currently unavailable

27

Toro 631048

Spring, Detent

$

$

Currently unavailable

28

Toro 650569

Screw Detent spring

$

$

Currently unavailable

29

Toro 630955

Retainer, Throttle Shaft

$

$

Currently unavailable

30

Toro 650569

Screw Detent spring

$

$

Currently unavailable

31

Toro 631770

Repair Kit

$

$

Currently unavailable
