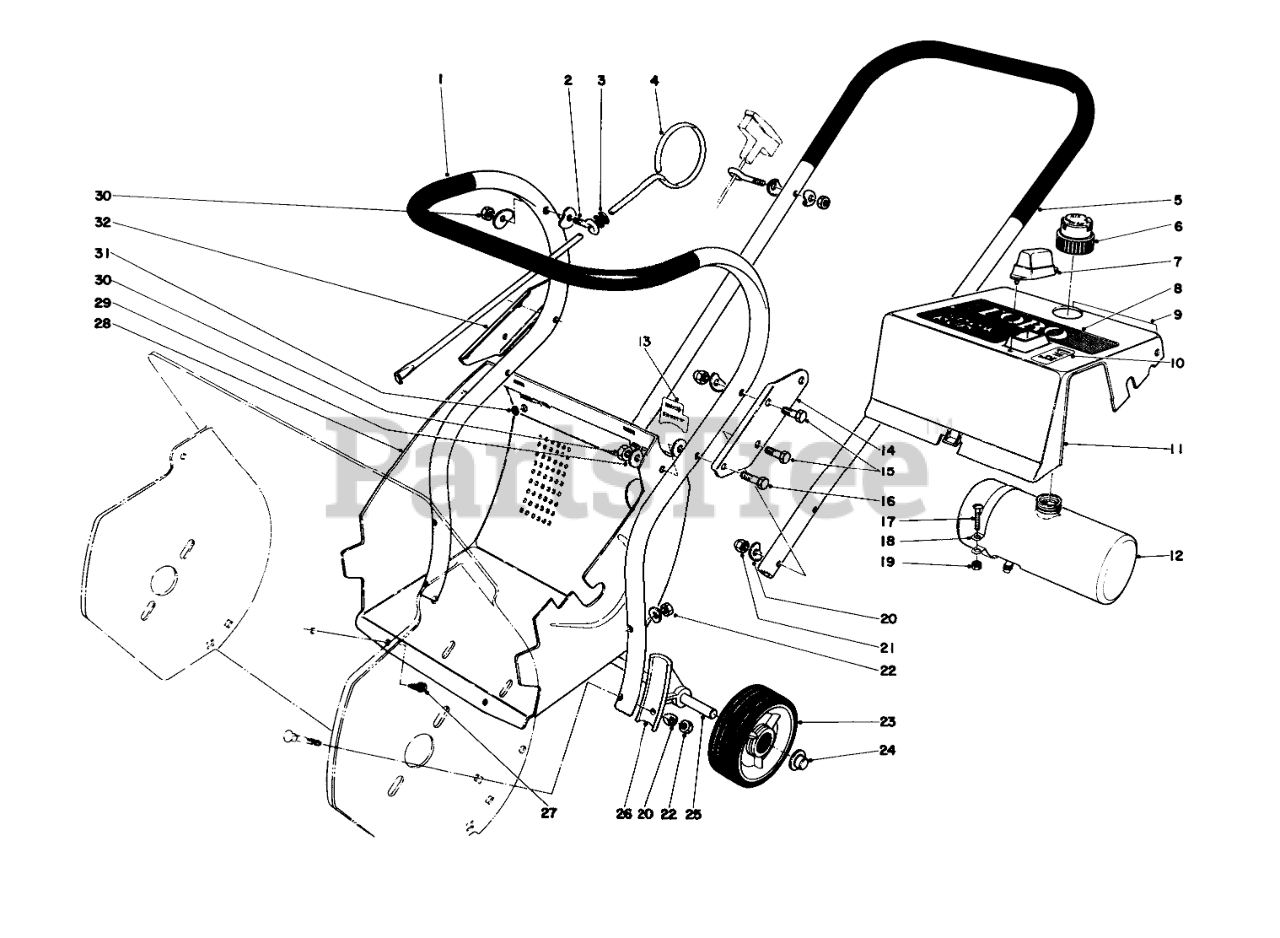

31412 - Toro Snow Pup Snow Thrower (SN: 005000001 - 005999999) (1975) UPPER MAIN FRAME Parts Diagram

Snow Pup Snow Thrower

UPPER MAIN FRAME Parts Diagram

  • Title

1

Toro 11-6030

Lower Handle
(Superseded to 33-4480)

$

$

Not available

2

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

3

Toro 237-73

GROMMET

$

$

Not available

4

Toro 5-3371

Vane Adj. Rod

$

$

Not available

5

Toro 11-6220

Upper Handle

$

$

Not available

6

Toro 11-5400

Cap, Gas
(Superseded to 42-0680)

$

$

Not available

7

Toro 5-0452

Boot

$

$

Not available

8

Toro 17-1830

Decal

$

$

Currently unavailable

9

Toro 20-3560

Decal

$

$

Not available

10

Toro 23-7280

Decal

$

$

Currently unavailable

11

Toro 20-3550

Shroud, Upper (Incl. Ref. #7-10)

$

$

Currently unavailable

12

Toro 23-7880

Gas Tank Assembly (Incl. Ref. # 6)
(Superseded to 42-3970)

$

$

Not available

13

Toro 23-7660

Decal

$

$

Not available

14

Toro 3-7503

SPLICE PLATE

$

$

Not available

15

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

16

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

17

Toro 3251-12

10-24 X 1 RND HD MS

$0.99

$

Usually ships in 3-6 days

0

18

Toro 2412-24

1/2 GAS TANK CLAMP

$

$

Not available

19

Toro 32107-6

NUT-SQ

$

$

Currently unavailable

21

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

22

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

23

Toro 11-5440

Wheel
(Superseded to 115440-01)

$

$

Not available

24

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

25

Toro 11-5430

Axle

$

$

Not available

26

Toro 11-5420

Wheel Bracket

$

$

Not available

27

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 5-2459

Lower Shroud (Incl. Ref. #31)

$

$

Not available

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

31

Toro 3290-351

SNO PUP PLATED EYELET

$

$

Not available

32

Toro 3-7504

Plate-Splice

$

$

Not available

Toro 321-9

SCREW-HH

Note: Not illustrated

$4.99

$

In Stock, only 2 left!

0

20

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0
