31451 - Toro Snow Pup Electric Snow Thrower (SN: 008000001 - 008999999) (1968) THOR ELECTRIC MOTOR Parts Diagram

Snow Pup Electric Snow Thrower

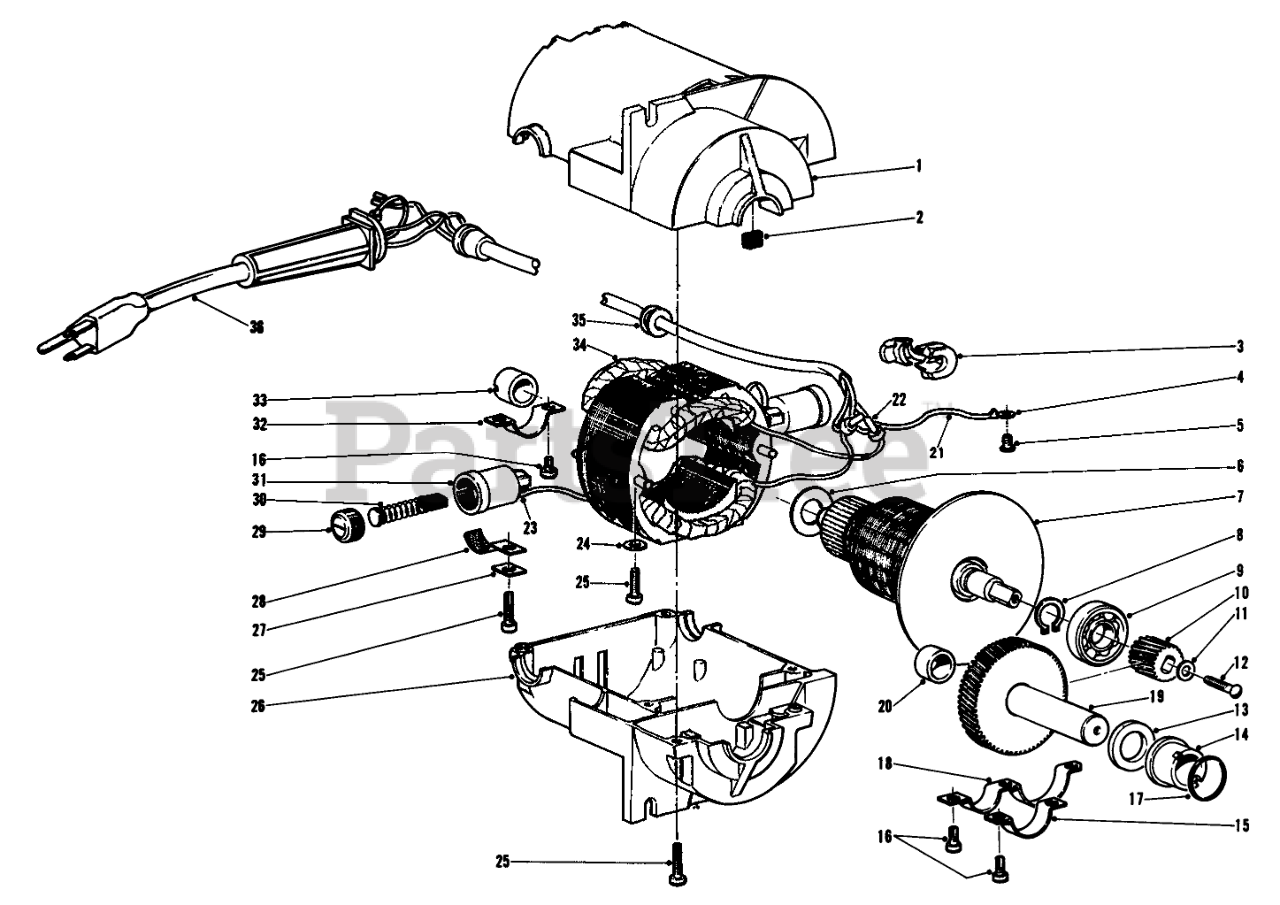

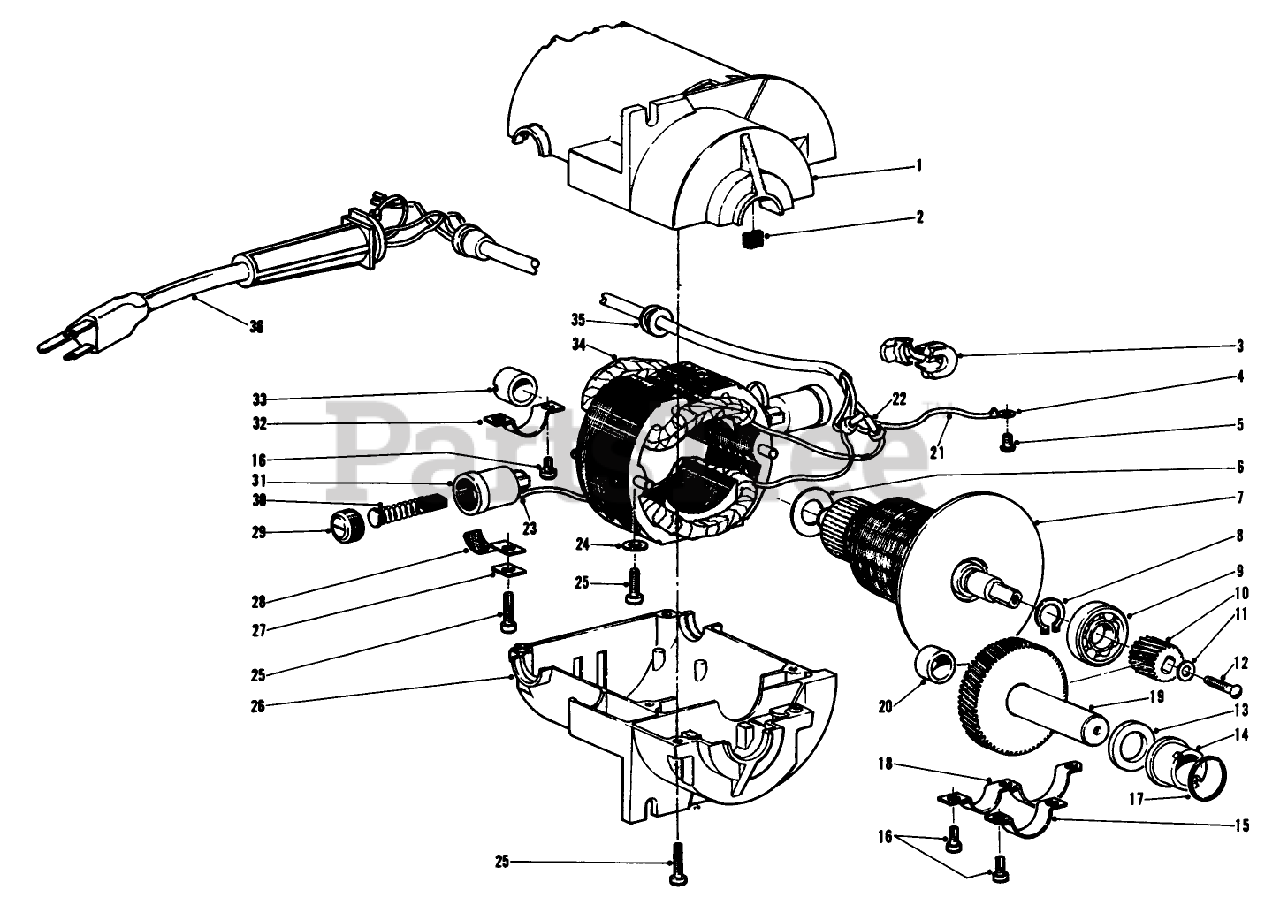

THOR ELECTRIC MOTOR Parts Diagram

  • Title

1

Toro 218-347

Motor Case

$

$

Currently unavailable

2

Toro 218-353

Felt-Oil

$

$

Currently unavailable

3

Toro 16516

Strain Relief

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

4

Toro 16649

Terminal

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

5

Toro 6559

Screw, Ground

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Not available

6

Toro 17381

Washer-Fiber

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

7

Toro 218-343

Armature Assembly

$

$

Currently unavailable

8

Toro 32120-3

Ring-Snap
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

9

Toro 251-216

Bearing, Armature-Front

$

$

Currently unavailable

10

Toro 218-344

Pinion, Armature

$

$

Currently unavailable

11

Toro 8704

Bracket-Seat Pivot

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

12

Toro 8192

Collar

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Not available

13

Toro 6102

Ass-y Frame

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

14

Toro 218-342

Bushing, Spindle-Front

$

$

Currently unavailable

15

Toro 6104

Ass-y. Hoodstand

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

16

Toro 6696

Screw, Bushing Clamps
(Superseded to 83-3280)

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Not available

17

Toro 237-69

O-RING

$6.99

$

Usually ships in 3-6 days

0

18

Toro 6123

Ass-y. Control

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

19

Toro 218-349

Spindle & Gear Assembly

$

$

Currently unavailable

20

Toro 218-355

Bushing, Spindle-Internal

$

$

Currently unavailable

21

Toro 8321

Ground Wire

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

22

Toro 8607

Connector

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

23

Toro 17462

Clip Terminal, Brush Holder

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

24

Toro 7108

Coupling

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

25

Toro 6737

Screw
(Superseded to 9782)

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$30.99

$

Usually ships in 3-6 days

0

26

Toro 218-346

Motor Cover

$

$

Currently unavailable

27

Toro 7202

Axle, R.H.
(Superseded to 121384)

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Not available

28

Toro 6093

Clamp, Brush Holder

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

29

Toro 218-352

Cap, Brush

$

$

Currently unavailable

30

Toro 218-351

Brush & Spring Assy.

$

$

Currently unavailable

31

Toro 218-341

Brush Holder

$

$

Currently unavailable

32

Toro 6099

Clamp, Armature Bearing Rear

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Not available

33

Toro 218-354

Bushing, Armature-Rear

$

$

Currently unavailable

34

Toro 218-348

Stator Assy.

$

$

Currently unavailable

35

Toro 218-350

Grommet

$

$

Currently unavailable

36

Toro 5-3413

Cord

$

$

Currently unavailable

36

Toro 5-3476

Cord Assembly Canadian

$

$

Currently unavailable
