315-980I000 - MTD Snow Thrower (1995) Belt Drive Assembly/Engine Frame Assembly Parts Diagram

Snow Thrower

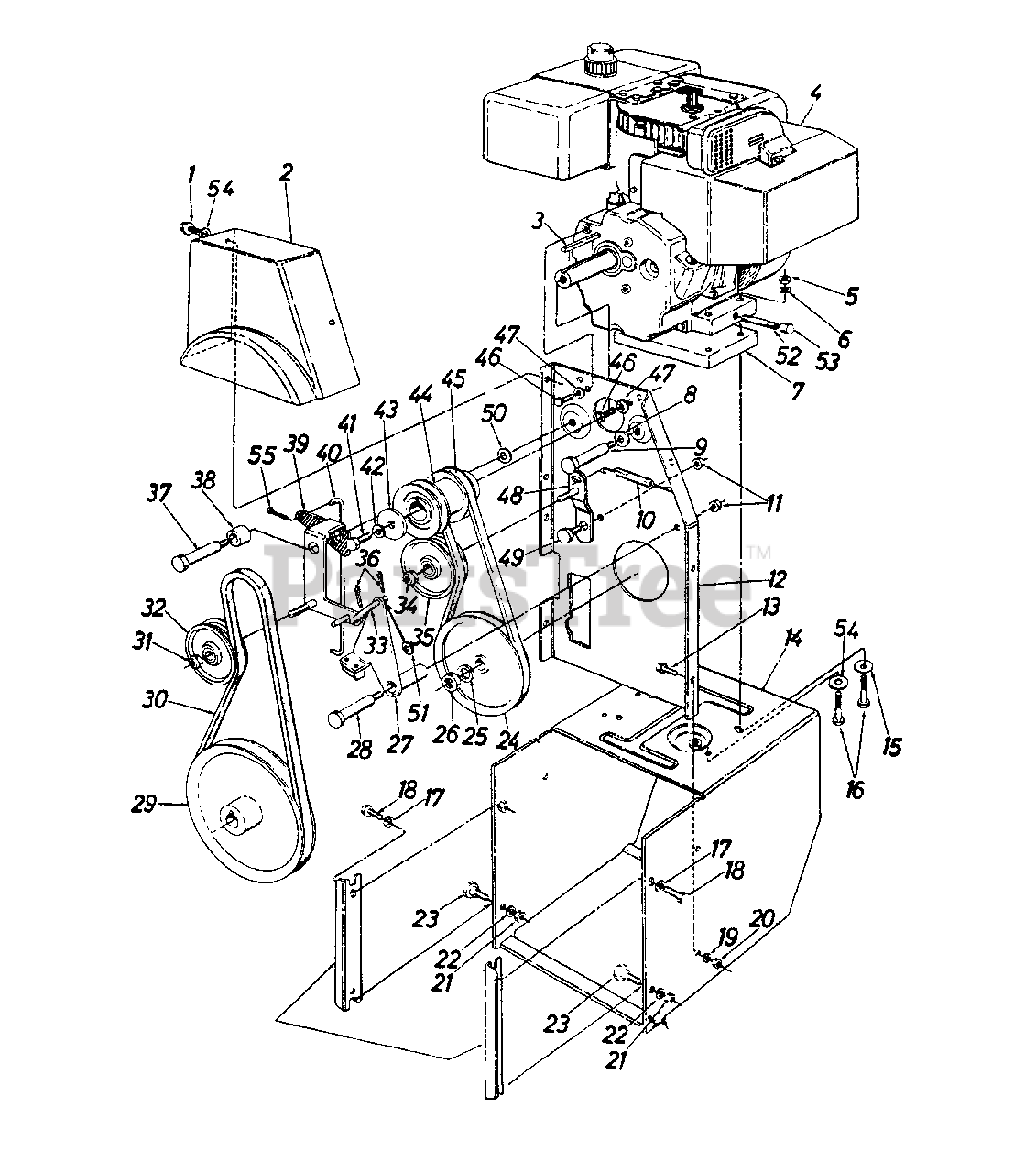

Belt Drive Assembly/Engine Frame Assembly Parts Diagram

  • Title

1

MTD 710-0607

Hex Wash. HD S-Tap Scr. 5/16-18 x .50

$6.49

$

In Stock, Qty 20+

0

2

MTD 731-0321

Plastic Belt Cover
(Superseded to 931-2531)

$47.99

$

Usually ships in 3-6 days

0

3

MTD 714-0118

Sq. Key 1/4 x 1/4 X 1.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

4

Engine

$

$

Not available

5

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

7

MTD 717-0882

Engine Spacer Ass'y.
(Superseded to 717-0882A)

$

$

Not available

8

MTD 736-0105

Bell-Washer .400 I.D. x .88 O.D. x .06

$3.99

$

In Stock, Qty 20+

0

9

MTD 738-0215A

Shoulder Screw .498 Dia. x 3.00

$8.49

$

Usually ships in 3-6 days

0

10

MTD 732-0303

Brake Return Extension Spring 3.18" Lg.
(Superseded to 932-0303)

$9.49

$

In Stock, Qty 14

0

11

MTD 712-0375

Hex Cent. L-Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

12

MTD 05491A

Engine Plate Ass'y.

$

$

Not available

13

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75
(Superseded to 910-0198)

$

$

Not available

14

MTD 784-5568A

Frame Assembly

Variations

MTD 784-5568A-0637

No Longer Available FRAME ASM - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 736-0231

Flat Washer .344 I.D. x 1.125 O.D. x .125

$4.49

$

In Stock, only 4 left!

0

16

MTD 710-0395

Hex Bolt 5/16-18 x 2.25

$4.49

$

In Stock, Qty 8

0

17

MTD 736-0217

Lock Washer Heavy 3/8" I.D.

$3.99

$

In Stock, Qty 13

0

18

MTD 710-0555

Hex Pilot Screw 3/8-16 x .88" Lg.
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

19

MTD 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0798

Hex Nut 3/8-16

$3.99

$

Usually ships in 3-6 days

0

22

MTD 736-0217

Lock Washer Heavy 3/8" I.D.

$3.99

$

In Stock, Qty 13

0

23

MTD 738-0143

Shld. Scr. .500 Dia. x .335" Lg.

$3.99

$

In Stock, Qty 20+

0

24

MTD 756-0344

1/2" "V" Pulley .625 I.D. x 7.50 O.D.

$75.99

$

Usually ships in 3-6 days

0

25

MTD 736-0158

Lock Washer 5/16 I.D.

$4.49

$

In Stock, only 2 left!

0

26

MTD 712-0221

Hex Ins. Jam Lock Nut 5/8-18

$

$

Not available

27

MTD 05510

Brake Brkt. Ass'y.
(Superseded to 05510A)

$

$

Not available

28

MTD 738-0129

Axle Bolt

$10.99

$

In Stock, only 1 left!

0

29

MTD 756-0243

1/2" V-Pulley .875 I.D. x 10.12 O.D.

$88.99

$

Usually ships in 3-6 days

0

30

MTD 754-0194

V-Belt 1/2 X 45.0" Lg.
(Superseded to 954-0194)

$29.99

$

In Stock, only 1 left!

0

31

MTD 712-0116

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 7

0

32

MTD 756-0240

Flat ldler w/Flanges 3.0 O.D.

$

$

Not available

33

MTD 747-0151

Sliding Rod .31 Dia. x 2.0" Lg.

$

$

Not available

34

MTD 712-0116

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 7

0

35

MTD 756-0240

Flat ldler w/Flanges 3.0 O.D.

$

$

Not available

36

MTD 714-0507

Cotter Pin 3/32 x .75

$4.49

$

In Stock, only 4 left!

0

37

MTD 738-0282

Shoulder Screw .625 Dia. x 2.75

$

$

Not available

38

MTD 750-0227

Spacer .64 I.D. x .75 O.D. x 1.0" Lg.

$

$

Currently unavailable

39

MTD 05493

Blower Idler Brkt. Ass'y.

Variations

MTD 05493-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 747-0149

Auger Clutch Rod

$

$

Currently unavailable

41

MTD 710-0191

Hex Screw 3/8-24 x 1.25

$4.49

$

In Stock, Qty 8

0

42

MTD 736-0217

Lock Washer Heavy 3/8" I.D.

$3.99

$

In Stock, Qty 13

0

43

MTD 07386

Flat Washer .39 I.D. x 1.75 O.D. x .175

$

$

Not available

44

MTD 756-0241B

Double Groove Engine Pulley (w/8 HP Tec)

$92.99

$

In Stock, only 1 left!

0

45

MTD 754-0131

V-Belt 1/2 X 35.5" Lg.
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 7

0

46

MTD 710-0237

Hex Screw 5/16-24 x .62

$4.49

$

Usually ships in 3-6 days

0

47

MTD 736-0105

Bell-Washer 400 I.D. x .88 O.D. x .06

$3.99

$

In Stock, Qty 20+

0

48

MTD 05495

Drive Idler Brkt. Ass'y.

$

$

Currently unavailable

49

MTD 738-0281

Shoulder Scr. .625 Dia. x .170

$9.99

$

In Stock, only 1 left!

0

50

MTD 736-0219

Bell-Washer .406 I.D. x 1.12 O.D.
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

51

MTD 736-0204

Flat Washer .34 I.D. x .62 O.D. x .03

$3.99

$

In Stock, Qty 20+

0

52

MTD 737-0130

Drain Pipe 1/4" NP
(Superseded to 737-0298)

$11.99

$

Usually ships in 3-6 days

0

53

UNKNOWN

$

$

Not available

54

MTD 736-0264

Flat Washer .344 I.D. x .625 O.D. x .063

$6.49

$

In Stock, only 2 left!

0

55

MTD 714-0507

Cotter Pin 3/32 x .75

$4.49

$

In Stock, only 4 left!

0

MTD 725-0954

Starter Key
(Superseded to TC-35062)

$3.99

$

In Stock, only 2 left!

0

MTD 390-987

Electric Starter Kit

Note: (Not Shown); Optional Parts

$

$

Currently unavailable
