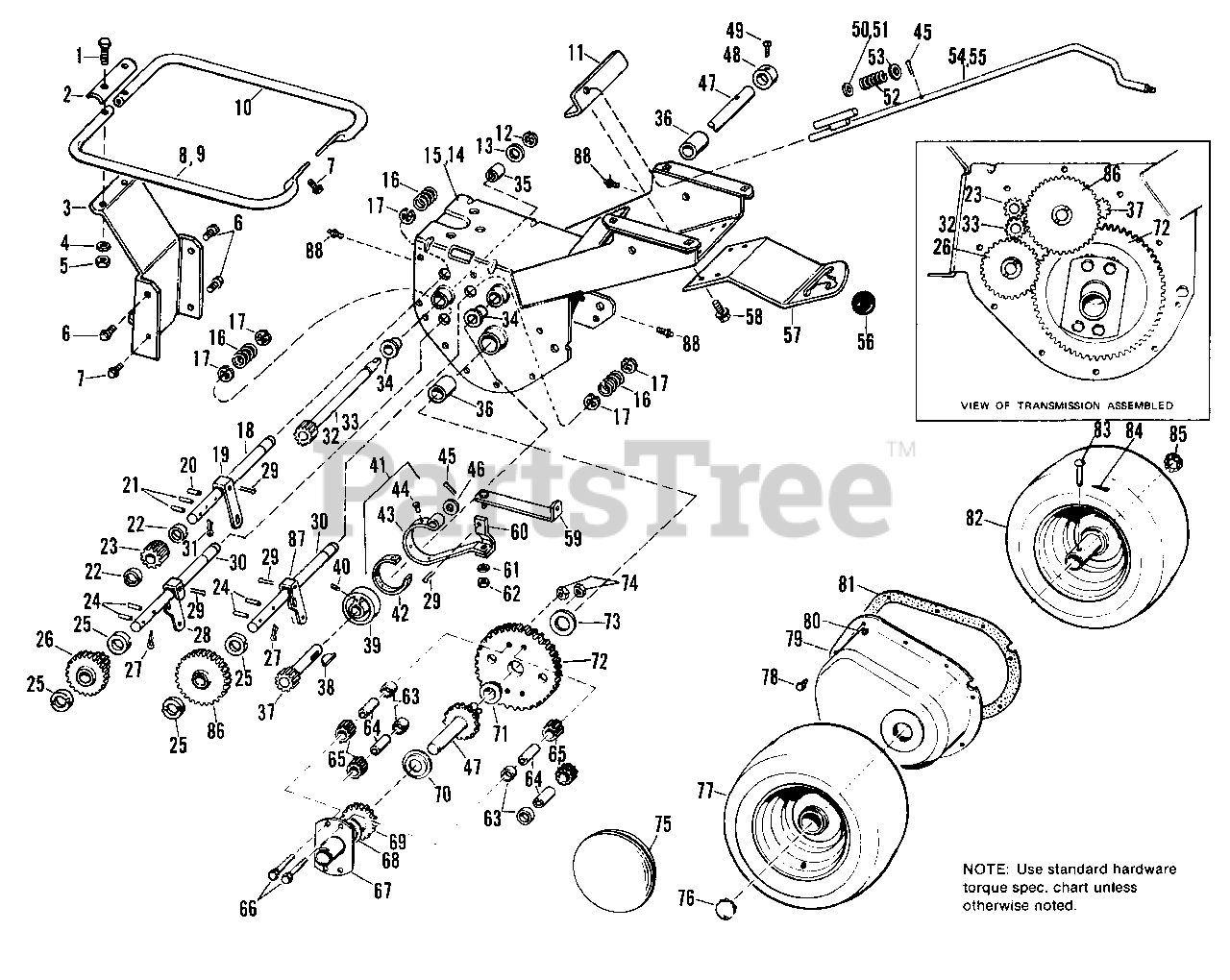

315 (990845) - Simplicity Wonderboy Rear-Engine Riding Mower, Manual Transmission & Rear Wheels Group Parts Diagram

Wonderboy Rear-Engine Riding Mower, Manual

Transmission & Rear Wheels Group Parts Diagram

  • Title

1

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

2

Simplicity 158584

BRACKET, Handle Support

$

$

Not available

3

Simplicity 158518

PLATE, Hitch, Rear

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

5

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 8

0

6

Simplicity 2824856

SCREW, Hex, Taptite, 5/16-18 x 1/2

$

$

Not available

7

Simplicity 2825003

SCREW, Hex, Taptite, 1/4-20 x 1/2

$

$

Not available

8

Simplicity 158582

HANDLE, Rear, R.H.

Note: Used on Mfg. No. 990554 & 990614.

$

$

Not available

9

Simplicity 174629

HANDLE, Rear, R.H.

Note: Used on Mfg. No. 990774 & 990775.

$

$

Not available

10

Simplicity 158583

HANDLE, Rear, L.H.

$

$

Not available

11

Simplicity 158539

GUIDE, Shift rod

$

$

Not available

12

Simplicity 2153124SM

RING, Retaining

$6.49

$

In Stock, Qty 20+

0

13

Simplicity 2153079

WASHER

$

$

Not available

14

Simplicity 158500

ENGINE BASE FRAME & SEAT SUPPORT ASSY.

$

$

Not available

15

Simplicity 174935

ENGINE BASE FRAME & SEAT SUPPORT ASSY.

Note: Used on Mfg. No. 990774 & 990775.

$

$

Not available

16

Simplicity 158578

SPRING, Compression

$

$

Not available

17

Simplicity 2158596

RING, Retaining

$

$

Not available

18

Simplicity 158534

SHAFT, Reverse

$

$

Not available

19

Simplicity 158564

LINK, Shift, Reverse

$

$

Not available

20

Simplicity 2821450

PIN, Roll, 5/32 Dia. x 1

$

$

Not available

21

Simplicity 2816168SM

PIN, Roll, 1/8 Dia. x 3/4

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 158562

COLLAR, Thrust

$

$

Not available

23

Simplicity 158557

PINION, Reverse

$

$

Not available

24

Simplicity 2818111

PIN, Roll, 1/8 Dia. x 1

$

$

Not available

25

Simplicity 158561

COLLAR, Thrust

$

$

Not available

26

Simplicity 158570

GEAR & BEARING ASSY.

$

$

Not available

27

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

28

Simplicity 158535

LINK, Shift, Hi

$

$

Not available

29

Simplicity 2819314

PIN, Cotter, 3/16 x 1-1/4

$

$

Not available

30

Simplicity 2158541

SHAFT, Intermediate

$

$

Not available

31

Simplicity 2823360

PIN. Cotter, 1/16 x 3/4

$

$

Not available

32

Simplicity 158531

SHAFT ASSY., Gear

Note: Used on Mfg. No. 990554 & 990614.

$

$

Not available

33

Simplicity 106944

SHAFT ASSY., Gear

Note: Used on Mfg. No. 990774 & 990775.

$

$

Not available

34

Simplicity 158569

BEARING, Bronze

$

$

Not available

35

Simplicity 2156064SM

BUSHING

$23.99

$

Usually ships in 2-12 days

0

36

Simplicity 2158337

BEARING

$

$

Not available

37

Simplicity 158548

BRAKE SHAFT & GEAR ASSY.

$

$

Not available

38

Simplicity 2830669

KEY, Hi-Pro

$

$

Not available

39

Simplicity 2165067SM

DRUM, Brake

$

$

Not available

40

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

41

Simplicity 2158552

BAND ASSY., Brake

$

$

Not available

42

Simplicity 2156134SM

LINING, Brake

$

$

Not available

43

Simplicity 2158552

BAND, Brake

$

$

Not available

44

Simplicity 2826021SM

RIVET, #7 x 1/4

$4.49

$

Usually ships in 2-12 days

0

45

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

46

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

47

Simplicity 158352

SHAFT ASSY., Axle, L.H.

$

$

Not available

48

Simplicity 158357

COLLAR, Set

$

$

Not available

49

Simplicity 2828709

SETSCREW, 5/16-18 x 3/8

$

$

Not available

50

Simplicity 2158645

WASHER, Plain

Note: Used on Mfg. No. 990554 & 990614.

$

$

Not available

51

Simplicity 2860207SM

WASHER, Spacer

Note: Used on Mfg. No. 990774 & 990775.

$3.49

$

Usually ships in 2-12 days

0

52

Simplicity 158576

SPRING

$

$

Not available

53

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

54

Simplicity 103224

CONVERSION KIT, Shift

Note: Used on Mfg. No. 990554 & 990614.

$

$

Not available

55

Simplicity 172917

ROD ASSY., Shift

Note: Used on Mfg. No. 990774 & 990775.

$

$

Not available

56

Simplicity 1729255SM

KNOB, SHIFT

$12.99

$

Usually ships in 2-12 days

0

57

Simplicity 172923

PLATE, Shift Pattern

$

$

Not available

58

Simplicity 2825592SM

SCREW, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$4.49

$

In Stock, Qty 20+

0

59

Simplicity 158597

GUIDE ASSY., Brake

$

$

Not available

60

Simplicity 1609261

LEVER, Brake

$

$

Not available

61

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 14

0

62

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 13

0

63

Simplicity 2121084SM

SPACER, Diff.

$13.99

$

Usually ships in 2-12 days

0

64

Simplicity 2121083SM

SPINDLE, Differential Pinion

$13.99

$

In Stock, only 1 left!

0

65

Simplicity 2158579SM

PINION, Diff.

$

$

Not available

66

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-3/4

$

$

Not available

67

Simplicity 158364

PLATE, Diff.

$

$

Not available

68

Simplicity 158365

BUSHING, Plate Diff.

$

$

Not available

69

Simplicity 158359

AXLE & BUSHING ASSY., R.H.

$

$

Not available

70

Simplicity 158358

CUP, Thrust

$

$

Not available

71

Simplicity 158356

BUSHING

$

$

Not available

72

Simplicity 158350

GEAR, Drive

$

$

Not available

73

Simplicity 2118252SM

WASHER

$4.49

$

In Stock, Qty 8

0

74

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

75

Simplicity 2156211SM

HUB CAP, Rear

Note: Used on Mfg. No. 990554 & 990614.

$

$

Not available

76

Simplicity 158436

BUTTON, Plug

$

$

Not available

77

Simplicity 1608381

WHEEL & TIRE ASSY., R.H.

$

$

Not available

78

Simplicity 2827428

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

79

Simplicity 158521

GEAR CASE ASSY.

$

$

Not available

80

Simplicity 928724

FITTING, Grease

$

$

Not available

81

Simplicity 158524

GASKET, Gear Case

$

$

Not available

82

Simplicity 1608383

WHEEL & TIRE ASSY., L.H.

$

$

Not available

83

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

84

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

85

Simplicity 158433

BUTTON, Plug

$

$

Not available

86

Simplicity 158542

GEAR & BEARING ASSY., Lo

$

$

Not available

87

Simplicity 158563

LINK, Shift, Lo

$

$

Not available

88

Simplicity 2812808SM

FITTING, Grease

$4.99

$

In Stock, Qty 20+

0
